2-146762-6
| Manufacturer | |
| Description | Conn Socket Strip RCP 50 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RCPT 50POS DL VERT .100 T/H 50 MODII RCPT VERT DR |
| Category |
Business
| Standard Package | Rail / Tube | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | MIL-C-55032 | 否 |
| Standard Number | CSA LR7189, UL E28476 | Material Flammability Rating | UL 94V-0 |
Electrical
| Contact Resistance | 12 | Resistance - Input | 5000 |
| Voltage - Rated AC | 333 | Connector Impedance | 不带 |
| Current Rating (Max) | 2 | Voltage - Rated AC (Phase to Phase) | 750 |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Height | 5.03 mm [ .198 in ] | Packaging | Tube |
| Body Color | 黑色 | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Female Socket |
| Mounting Type | Through Hole | Connector Type | Receptacle |
| Contact Finish | Tin-Lead Over Nickel | Mounting Style | 标准 |
| Number of Rows | 2 | Pressure (PSI) | 标准 |
| Terminal Style | 短点 | Connector Usage | 闭合入口, 顶部 |
| Insert Material | 磷青铜 | Housing Material | 聚酯 - GF |
| Package Quantity | 9 | Panel Mount Type | 通孔 |
| Termination Style | 插座 | Number of Contacts | 50 |
| Number of Positions | 50 | Bushing, Grommet Type | 不带 |
| Compatible Shell Size | 与接头配合 | Contact Length - Post | 3.18 mm [ .125 in ] |
| Termination Post Length | 3.18 mm [ .125 in ] | Contact Finish Thickness | 150µin (3.81µm) |
Product Info
| Note | TE 建议使用接合金或带双层电镀母端配件的双层电镀公端。, 为了获得最小接合柱长度，在最大触点尺寸上增加 .51 [.020]（不包含斜面上的柱引线）。 | Type | Socket Strip |
| Gender | RCP | Series | AMPMODU, MOD II |
| Sealable | 否 | Stackable | 是 |
| Product Type | 连接器 | Assembly Configuration | 板支座 |
| Number of Positions Loaded | All | ||
Environmental
| Temperature - Test | 否 | Operating Temperature | -65 – 125 |
| Thermal Resistance of Package | 1.57 mm [ .062 in ] | ||
Similar Parts
7-103168-3
te connectivity / amp
Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT .100 50POS 30AU Headers & Wire Housings SHROUDED VER DUAL 50 detent windows Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Search Keywords:board to board, AMPMODU, pcb connectors, WIRE-BOARD CONN, HEADER, 50POS, 2.54MM 50 MODII HDR DRST SHRD .100CL
7-87589-1
te connectivity / amp

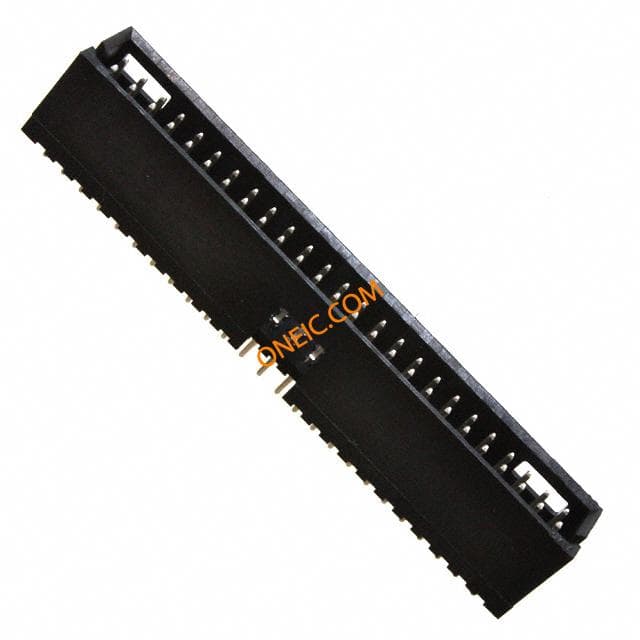

Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Headers CONN HEADER VERT 50POS PCB TIN Headers & Wire Housings 50P HDR DRST SHRD Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorWith ContactsHousing Gender = Header - PinContact Gender = PinHeader Type = ShroudedSearch Keywords:board to board, AMPMODU, pcb connectors, 50 MODII HDR DRST SHRD .100CL
7-102617-3
te connectivity / amp
Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole Headers & Wire Housings 50P HDR DRRA SHRD .100 inch AMPMODU Headers CONN HEADER R/A .100 50POS 15AU Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = PinHeader Type = Shrouded50 PositionsSearch Keywords:board to board, AMPMODU, pcb connectors, 50 MODII HDR DRRA SHRD LF
2-87543-5
te connectivity / amp
50 MODII HDR DRST UNSHRD .100 Headers & Wire Housings 50 MODII HDR DRST UN 1000 CONN HEADER 50POS DUAL .100 TIN
2-103166-3
te connectivity / amp
Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 50POS 30AU Headers & Wire Housings SHROUDED RA DUAL 50 detent windows Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 50Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 50 MODII HDR DRRA SHRD .100CL
7-87579-2
te connectivity / amp

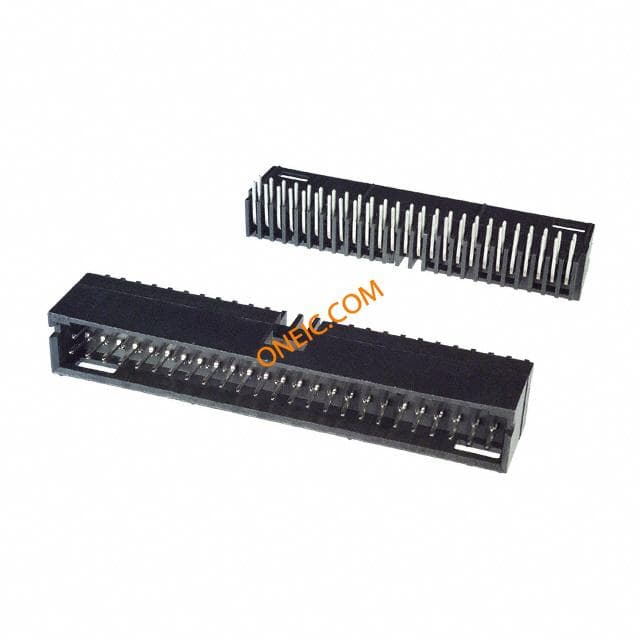

Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER RTANG 50POS PCB TIN Headers & Wire Housings 50P HDR DRRA SHRD .100 inch AMPMODU Headers Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 50Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 50 MODII HDR DRRA SHRD LF
