2-103166-3
| Manufacturer | |
| Description | Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole .100 inch AMPMODU Headers CONN HEADER R/A .100 50POS 30AU Headers & Wire Housings SHROUDED RA DUAL 50 detent windows Conn Shrouded Header HDR 50 POS 2.54mm Solder RA Thru-Hole Product Highlights:HeaderHeader Type = ShroudedNumber of Rows = DualNumber of Positions = 50Mating Post Length = 8.08 mmSearch Keywords:board to board, AMPMODU, pcb connectors, 50 MODII HDR DRRA SHRD .100CL |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Trays | Factory Pack Quantity | 32 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Leadfree Defin | Wave solder capable to 240°C |
| Standard Number | CSA LR7189, UL E28476 | RoHSELV Compliance | Not ELV/RoHS compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Switch Function | Detent Windows | Connector Impedance | 制动器窗口 |
| Voltage - Breakdown | 750 | Current Rating (Max) | 3 |
| Insulation Resistance | 5,000 | Voltage - Protection Rating (VPR) | 750 Vrms |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Base Type | 带有 | Lock Type | 带有 |
| Packaging | Tray | Body Color | 黑色 |
| Lead Style | 正方形 | Stabilizer | 不带 |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Contact Type | Male Pin | 1st Connector | No |
| 2nd Connector | With | Contact Shape | Square |
| Housing Color | Black | Mounting Type | Right Angle |
| Connector Type | Shrouded | Contact Finish | Gold Over Nickel |
| Fastening Type | Detent Lock | Mounting Style | 标准 |
| Number of Rows | 2 | Package / Case | 4-Sided |
| Shell Material | 4- 面 | Insert Material | 磷青铜 |
| Locking Feature | Detent Windows | Profile (W x H) | Standard |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic |
| Length - Overall | 1.68 [0.066] | Mounting Feature | Without |
| Package Quantity | 32 | Panel Mount Type | Without |
| Size / Dimension | 0.64 [.025] | Termination Style | Through Hole |
| 1st Connector Type | 带罩 | 1st Contact Gender | Pin (Male) |
| Diameter - Outside | .64 mm [ .025 in ] | Number of Contacts | 50 |
| Termination Finish | 带有 | Number of Positions | 50 |
| Length - Post (Mating) | 8.08 mm | Mounting Hole Diameter | 带有 |
| Center Contact Material | 2.54 x 2.54 [.100 x .100] | Contact Length - Mating | 8.08 [0.318] |
| Surface Mount Land Size | No | Termination Post Length | 3.43 [0.135] |
| Contact Finish Thickness | 30µin (0.76µm) | Mounting Panel Thickness | With |
| Static Discharge Shielding | 不带 | Shell Size, Connector Layout | 1.68 mm [ .066 in ] |
| 1st Connector Mounting Feature | 否 | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | AMPMODU MOD II | Key Type | 否 |
| Manufacturer | AMP | Product Type | Header |
| Selectively Loaded | No | Number of Positions Loaded | All |
Environmental
| Seal Rating | 不带 | Temperature | No |
| Ingress Protection | 带罩 | Operating Temperature | -55 â +105 |
| Thermal Resistance of Package | 1.397 mm [ .055 in ] | Operating Temperature - Junction | 否 |
Similar Parts
2-534206-5
te connectivity / amp
Conn Socket Strip SKT 50 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Headers & Wire Housings REC 2X25P VRT T/H 540 .100 inch AMPMODU Receptacles CONN RECEPT 50POS .100 VERT DUAL Conn Socket Strip SKT 50 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IINumber of Positions = 50Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, VERTIIDRCERECASY,50MODIIVRTDRCE100/115 50 MODII VRT DR CE 100/115
2-146762-6
te connectivity / amp
Conn Socket Strip RCP 50 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RCPT 50POS DL VERT .100 T/H 50 MODII RCPT VERT DR
2-534998-5
te connectivity / amp
Conn Socket Strip RCP 50 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 50POS .100 VERT DUAL Headers & Wire Housings 50P RECEPTACLE Conn Socket Strip RCP 50 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IVNumber of Positions = 50Number of Rows = DualLow ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 50 MODIV VRT DR CE 100/125
7-102398-3
te connectivity / amp
Conn IDC Connector RCP 50 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 50POS .100 IDC GOLD AMPMODUMTReceptacleAssembly,50Pos. AMPMODU MT Receptacle Assembly; 50 Pos.; Dual Row; IDC; 26-22AWG; .100 CL Headers & Wire Housings HSG DUAL 50P 26-22 Conn IDC Connector RCP 50 POS 2.54mm IDT ST Cable Mount Product Highlights:HousingPreloadedNumber of Positions = 50Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONN RECEPTACLE 50POS, 2.54MM AMPMODUMTReceptacleAssembly,50Pos.,DualRow,IDC,26-22AWG,.100CL 50 AMPMODU MT ASSY DR.100CL SN
2-102398-3
te connectivity / amp
Conn IDC Connector RCP 50 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 50POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 50P 26-22 Conn IDC Connector RCP 50 POS 2.54mm IDT ST Cable Mount Product Highlights:Receptacle AssemblyWire Termination Type = Insulation Displacement Crimp (IDC)Number of Positions = 50Number of Rows = DualTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 50 AMPMODU MT ASSY DR .100CL
2-86177-1
te connectivity / amp
Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RCPT HSNG 50POS DL CRIMP Headers & Wire Housings 50 MODIV HSG COMP DR .100CL Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 50Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 50 MODIV HSG COMP DR .100CL

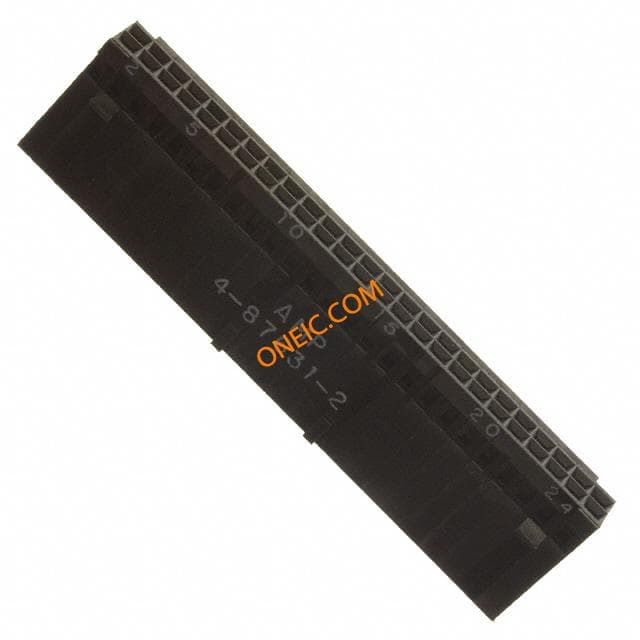

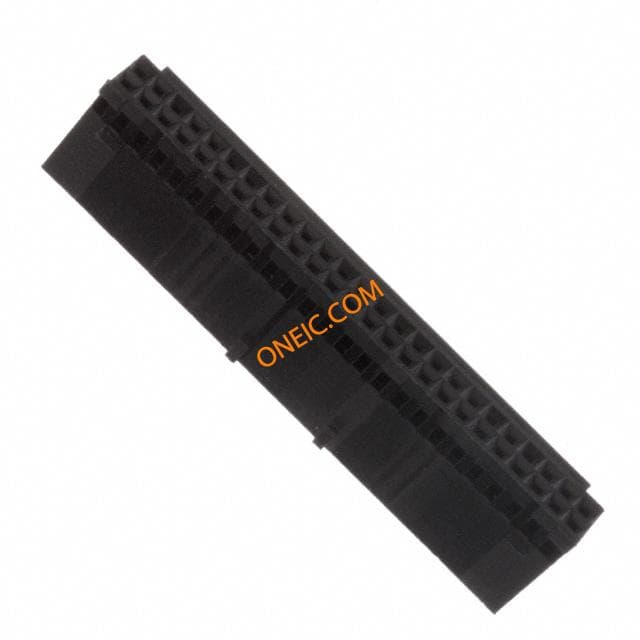

4-87631-1
te connectivity / amp
Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 50POS .100 POL DUAL Headers & Wire Housings 50 HSG COMP DR .1POL Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 50Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 50POS, 2.54MM 50 MODIV HSG COMP DR .100 POL
7-102393-3
te connectivity / amp
Conn IDC Connector RCP 50 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 50POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 50P 30-26 .100 AMPMODU Headers, Housings & Contacts Product Highlights:HousingPreloadedNumber of Positions = 50Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 50 AMPMODU MT ASSY DR.100CL SN
2-147424-5
te connectivity / amp
Conn Socket Strip RCP 50 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RCPT 50POS VERT .100 T/H Headers & Wire Housings 50 MODII VRT DR CE .100 X .100 Conn Socket Strip SKT 50 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Conn Socket Strip SKT 50 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IINumber of Positions = 50Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, 50 MODII VRT DR CE .100 X .100
7-102448-3
te connectivity / amp
Conn IDC Connector RCP 50 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 50POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 50P 22-20 Conn IDC Connector RCP 50 POS 2.54mm IDT ST Cable Mount Product Highlights:HousingPreloadedNumber of Positions = 50Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 50POS, 2 Receptacle;MT(IDC);26to22AWG;InsulationDisplacementCrimp(IDC);50Pos. 50 AMPMODU MT ASSY DR.100CL SN

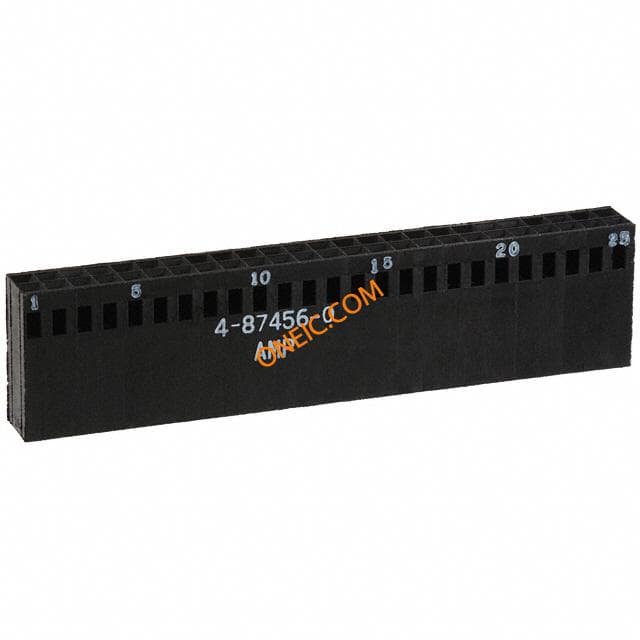

4-87456-0
te connectivity / amp
Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 50POS .100 DUAL Housing,Connector,Crimp-Snap,Dual Headers & Wire Housings HSG 2X25C F/H Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 50Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Housing,Connector;Crimp-Snap;Dual;50;250VAC;3A;750V 50 MODIV HSG DR MRKD .100CL
2-535598-1
te connectivity / amp
Conn Socket Strip SKT 50 POS 2.54mm Solder ST Thru-Hole .100 inch AMPMODU Receptacles CONN RCPT 50POS .100 DUAL T/H AU Headers & Wire Housings 50 MODIV VRT DR CE RCPT ASSY 50 MODIV VRT DR CE RCPT ASSY 50 MODIV VRT DR CE RCPT ASSY Search Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal,
2-102448-3
te connectivity / amp
Conn IDC Connector RCP 50 POS 2.54mm IDT ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 50POS .100 IDC GOLD Headers & Wire Housings HSG DUAL 50P 22-20 50 AMPMODU MT ASSY DR .100CL
7-534998-5
te connectivity / amp
Conn Socket Strip RCP 50 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 50POS .100 VERT DUAL Headers & Wire Housings REC 2X25P VRT T/H Conn Socket Strip RCP 50 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IVNumber of Positions = 50Number of Rows = DualLow ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, BOARD-BOARD CONNECTOR RECEPTACLE, 50WAY, 2ROW 50 MODIV VRT DR CE 100/125

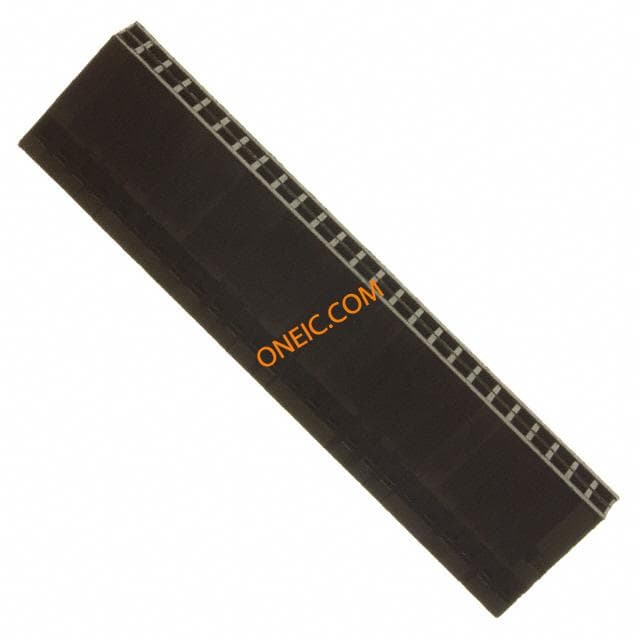

3-87456-9
te connectivity / amp
Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 50POS .100 DUAL ROW Headers & Wire Housings 50 MODIV HSG COMP DR Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount Product Highlights:HousingNot PreloadedNumber of Positions = 50Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR RECEPTACLE 50POS, 2.54MM 50 MODIV HSG COMP DR .100CL
4-87631-2
te connectivity / amp
Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN HOUSING 50POS .100 POL DUAL Headers & Wire Housings HSG 2X25C F/H POL Conn Housing RCP 50 POS 2.54mm Crimp ST Cable Mount Product Highlights:Receptacle HousingWire Termination Type = CrimpNumber of Positions = 50Housing Type = ReceptacleNumber of Rows = DualSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Housing,Connector;Crimp-Snap;Dual;50;250VAC;3A;750V 50 MODIV HSG DR MRKD .100 POL
7-534206-5
te connectivity / amp
Conn Socket Strip SKT 50 POS 2.54mm Solder ST Thru-Hole Gang of Tubes .100 inch AMPMODU Receptacles CONN RECEPT 50POS .100 VERT DUAL Headers & Wire Housings REC 2X25P VRT T/H Conn Socket Strip SKT 50 POS 2.54mm Solder ST Thru-Hole Gang of Tubes Product Highlights:ReceptacleMod IINumber of Positions = 50Number of Rows = DualStandard ProfileSearch Keywords:AMPMODU, board to board, NIC, Network Interface Cards, PC Cards, MIL-C-55032, MIL-C-24519, pcb connectors, wire to board, signal, BOARD-BOARD CONNECTOR RECEPTACLE, 50WAY, 2ROW VERTIIDRCERECASY,50MODIIVRTDRCE100/115 TE Connectivity AMPMODU Mod II 系列 2行 50路 直 2.54mm节距 通孔 印刷电路板插座, 板对板 50 MODII VRT DR CE 100/115

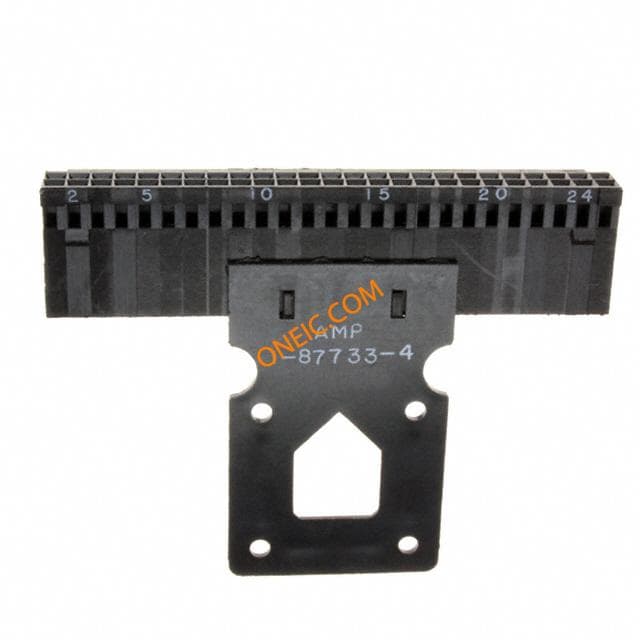

1324039
