208486-3
| Manufacturer | |
| Description | Conn Metal Shell CPC PIN 14 POS Crimp ST Cable Mount 14 Terminal 1 Port CPC Connectors CONN PLUG CMC 14POS REV SER 1 Standard Circular Connector CMC PLUG 22-14 Conn Metal Shell CPC PIN 14 POS Crimp ST Cable Mount 14 Terminal 1 Port Product Highlights:HousingHousing Type = PlugNumber of Positions = 1414 Signal Positions0 Power PositionsSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CMC PLUG ASSEMBLY,SZ 22 |
| Category |
Business
| Lead Time | 63 Days | Tradename | CPC Series 1 |
| Subcategory | Connector Circular | Product Category | Standard Circular Connector |
| Standard Package | Bulk | Factory Pack Quantity | 10 |
Compliance
| RoHS | Lead free / RoHS Compliant | Compliance | No |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| UL Flammability Rating | UL 94V-0 | Approval Agency Marking | 否 |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Fluid Resistance | 浸入 | Number of Channels | 14 |
| Connector - Voltage Input | 反向 | ||
Mechanical
| Sealed | Yes | Outline | 22 |
| Material | Fluorocarbon | Packaging | Bulk |
| Body Color | 黑色 | Shell Size | 22 |
| Orientation | Keyed | Shell Style | Plug |
| Termination | Crimp | Thread Size | 1-3/16 - 18 UNEF-2A |
| Contact Size | 16 | Contact Type | Crimp |
| Housing Color | Black | Mounting Type | Cable Mount |
| Connector Type | Plug for Male Contacts | Fastening Type | Threaded |
| Mounting Style | Free Hanging | Number of Pins | 0 |
| Shell Material | Zinc alloy | Connector Style | Plug |
| Housing Material | Thermoplastic | Package Quantity | 10 |
| Termination Style | Wire | 1st Contact Gender | Pin |
| Mating Orientation | Keyed | Number of Contacts | 14 |
| Termination Finish | 带有 | Insulation Diameter | 2.54 [0.100] |
| Number of Positions | 14 | Shell Size - Insert | Metal |
| Mounting Hole Diameter | 带有 | Shell Material, Finish | Zinc, Nickel Plated |
| 2nd Connector Mounting Feature | Reverse | ||
Product Info
| Note | Contacts Not Provided | Type | Metal Shell CPC |
| Gender | PL | Series | Series 1 |
| Preloaded | No | Product Type | Connector |
| Other Specifications | Without | For Use With/Related Products | Pin Contacts |
Environmental
| Seal Rating | Tetraseal | Operating Range | 密封 |
| Ingress Protection | Tetraseal | ||
Documents & Media
Similar Parts
66103-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 20-24AWG 30 GOLD CRIMP Series1 gold plated pin contact,24-20awg Standard Circular Contacts PIN CONTACT Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.02 - 2.03 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 24-20 AWG, CRIMP Contact;Pin;16;Brass;Signal;Gold(30)overNickel(50);24-20AWG;Crimp Contact; male; 0.2÷0.6mm2; 20÷24AWG; Type III+; gold plated; 13A MULTIMATE Type III+ Series 24-20 AWG Discrete Wire Crimp Signal Pin Contact Crimp contact 13 A Male 20...24 AWG, 66103-4, TE Connectivity TE Connectivity Type III+ 系列 160A 公 压接端接 圆形 连接器 触芯, 24 → 20 AWG 线规格 III+ PIN,24-20,30AU/FL,LP
66602-6
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 14-18 AWG TIN CRIMP Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinTin-Lead over Nickel (50) Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.79 - 3.81 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ PIN,18-14,TIN-LEAD,SMPACK
66597-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Pin & Socket Connectors III+ PIN18-14 12000 Multimate CONN PIN .062 14-18AWG TIN CRIMP Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinBright Tin-Lead Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.79 - 3.81 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts Multimate Type III AWG 18 - 14 Insulated Discrete Wire Crimp Pin Contact III+ PIN,18-14,TIN-LEAD,STRIP
66460-6
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 32 AWG GOLD CRIMP Pin & Socket Connectors PIN .062 DIA .025 SQ POST LP PIN,.062 DIA,.025 SQ POST,LP PIN,.062 DIA,.025 SQ POST,LP Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts
1-66106-5
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN .062 24-26AWG TIN CRIMP CONN PIN 24-26AWG TIN CRIMP Pin & Socket Connectors PIN 26-24 BR/SN SIG Contact PIN Crimp ST Cable Mount Strip Product Highlights:Contact Type = PinContact Classification = SignalType III+ SeriesBright Tin Contact Plating, Mating Area, MaterialWire Range = 0.12-0.24² [26-24] mm [AWG]Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ PIN,26-24,TIN,STRIP
164163-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Pin & Socket Connectors PIN ASSY Multimate CONN PIN 20-24AWG GOLD CRIMP Crimp contact, pin, type III+, size16 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.14 - 1.80 mmCopper Alloy Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 24-20AWG, CRIMP Contact,Multimate;Pin;16;CopperAlloy;Grounding;GoldoverNickel;Crimp;24-20AWG MultiMate Series 24-20 AWG Pin Crimp Gold Flash Loose Piece Stamped Connector Crimp Ground Pin 13 A, 164163-1, TE Connectivity TE Connectivity Type III+ 系列 公 压接接线端子, 压接, 镀金镀镍触点 PIN ASSY
66098-1
te connectivity / amp
III+ PIN,18-16,30AU>10,STRIP Multimate CONN PIN 16-18 AWG 30GOLD CRIMP Type III Series Size 16 Male Circular Connector Contact, Crimp,Wire size 18 to 16AWG Pin & Socket Connectors III+ PIN 18-16 30AU>10 STRIP 66098-1 Contact PIN Crimp ST Cable Mount Strip Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinTin-Lead Contact Mating Area Plating MaterialWire Range = 0.80-1.40² [18-16] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts MultimateIII,contact,pin,0.80-1.40mm² TE Connectivity Type III 系列 公 压接端接 圆形 连接器 触芯, 使用于Multimate III 系列连接器, 18 → 16 AWG 线规格
66361-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece CONN PIN 14-18AWG 30GOLD CRIMP Series 1 gold plated pin contact Standard Circular Contacts TYPE III+ PIN 18-14 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP PIN, TYPE3, SIZE16, PK10 III+PIN,18-14,30AU>10,LP TE Connectivity Type III+ 系列 公 压接端接 圆形 连接器 触芯, 使用于CPC 连接器、G 系列连接器、M 系列连接器, 18 → 14 AWG 线规格 III+ PIN,18-14,30AU>10,LP
66332-7
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN 20-24AWG 15 GOLD CRIMP Power to the Board PIN 24-20 GOLD 12000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (15) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ PIN,24-20,15AU/FL,STRIP
1-66098-9
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN 18-16AWG #16 TIN Pin & Socket Connectors II+ PIN 18-16 TIN Conn Contact PIN 1 POS Crimp ST Cable Mount 1 Terminal 1 Port Strip Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinTin Contact Mating Area Plating MaterialWire Range = 0.80-1.40² [18-16] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts II+ PIN, 18-16,TIN STRIP
66106-8
te connectivity / amp
III+ PIN,26-24,30AU/FL,STRIP Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN .062 24-26AWG AU CRIMP CONN PIN 24-26 AWG GOLD CRIMP Pin & Socket Connectors III+ PIN26-2430 Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.12-0.24² [26-24] mm [AWG]Insulation Diameter = .89 - 1.40 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+PIN,26-24,30AU/FL,STRIP MULTIMATE Type III+ Series 24-20 AWG Discrete Wire Crimp Signal Pin Assembly TE Connectivity Type III+ 系列 公 压接触点, 压接, 镀金触点
66099-3
te connectivity / amp
III+ PIN,18-16,15AU/FL,LP Multimate CONN PIN 16-18AWG GOLD CRIMP Contact Crimp Pin 18-16AWG Multimate Standard Circular Contacts 18-16 AWG CRIMP PIN Contact PIN Crimp ST Cable Mount Loose Piece Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (15) over Nickel (50) Contact Mating Area PlatingWire Range = 0.80-1.40² [18-16] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 18-16AWG, CRIMP Contact;Pin;16;Brass;Signal;Gold(15)overNickel(50);18-16AWG;Crimp TE Connectivity Type III+ 系列 公 压接接线端子, 压接, 镀金镀镍触点
202236-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Reel Pin & Socket Connectors TIN PIN SOLDR TAB Multimate CONN PIN SOLDER CPC TIN 202236-2 Contact PIN Crimp ST Cable Mount Reel Product Highlights:Pin with Solder TabBright Tin-Lead Contact Mating Area Plating MaterialCopper Alloy Contact MaterialBright Tin-Lead Termination End PlatingType III+Search Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts Contact,Multimate;PinwithSolderTab;16;CopperAlloy;Signal;Discrete III+ PIN,SOLTAB,TIN-LEAD,LP

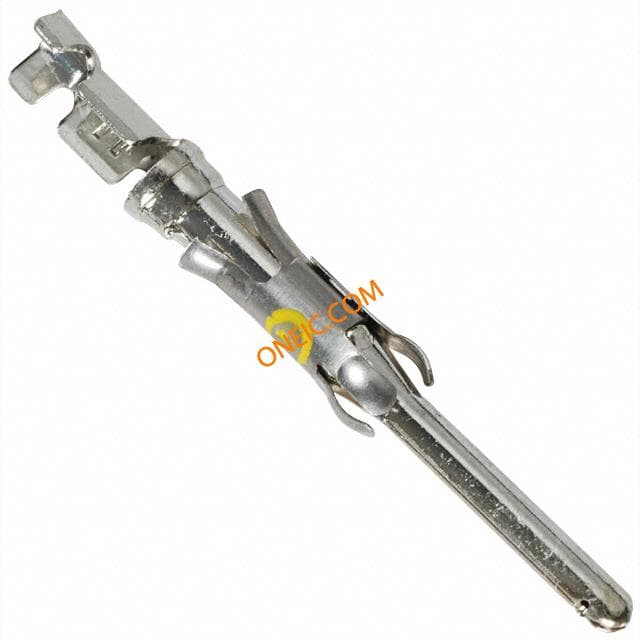

66103-2
