211772-1
| Manufacturer | |
| Description | Conn CPC PIN 19 POS Crimp ST Cable Mount 19 Terminal 1 Port CPC Connectors CONN PLUG CPC 19POS REV SER 1 19 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 23 with Male Contacts Standard Circular Connector PLUG 19 POSITION shell size 23 Conn CPC PIN 19 POS Crimp ST Cable Mount 19 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 19PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIR CONNECTOR PLUG SIZE 23 19POS FREE HANGING ConnectorHousing;CPCPlugAssy;19Pos.;Sz.23;Series1;FreeHang;RevSex Cable plug, series CPC 19-pin CPC 1 19P Male 23, 211772-1, TE Connectivity TE Connectivity 19路 电缆安装 直向 连接器 插头 , 公触点 CPC PLUG ASSEMBLY SIZE 23-19 |
| Category |
Business
| Lead Time | 28 Days | Tradename | CPC Series 1 |
| Subcategory | Connector Circular | Product Category | Standard Circular Connector |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85361010 |
| Compliance | Yes | Rad Hardened | No |
| Leadfree Defin | Not relevant for lead free process | Approval Agency | ULRecognized/CSA/VDE |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 250 V ac | Number of Channels | 19 |
Mechanical
| Color | Black | Sealed | No |
| Weight | 0.027 | Diameter | 45.29 mm |
| Packaging | Bulk | Cable Exit | No |
| Shell Size | 23 | Orientation | A |
| Shell Style | Plug | Termination | Crimp |
| Thread Size | 1-3/8 - 18 UNEF-2A | Contact Form | 19Signal |
| Contact Size | 16 | Contact Type | Crimp |
| Housing Color | Black | Mounting Type | Cable Mount |
| Angle of Throw | Straight | Connector Type | Plug for Male Contacts |
| Fastening Type | Threaded | Mounting Style | Free Hanging |
| Connector Style | Plug | Material - Body | :Thermoplastic |
| Material - Core | Polyester | Housing Material | Thermoplastic |
| Length - Overall | 34.67 mm | Primary Material | CircularPlasticConnector |
| Termination Style | Wire | 1st Contact Gender | Male |
| Mating Orientation | Keyed | Number of Contacts | 19 |
| Insulation Diameter | 3.81 [0.150] | Number of Positions | 19 |
| Shell Size - Insert | All Plastic | Shell Material, Finish | Thermoplastic |
| 1st Connector Mounting Type | :Free Hanging | 2nd Connector Mounting Feature | Reverse |
| Shell Size - Insert (Convert To) | 23-19 | ||
Product Info
| Note | Contacts Not Provided | Type | CPC |
| Gender | PL | Series | Series 1 |
| Features | ReverseGender | Key Type | A |
| Preloaded | No | Arrangement | 23-19 |
| Manufacturer | Series1 | Product Type | Connector |
| RF Family/Standard | 211772 | Other Specifications | Without |
| Application Specifics | Commercial | For Use With/Related Products | Pin Contacts |
Environmental
| Ingress Protection | IP65 | Operating Temperature | +105°C |
Documents & Media
Similar Parts
66103-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 20-24AWG 30 GOLD CRIMP Series1 gold plated pin contact,24-20awg Standard Circular Contacts PIN CONTACT Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.02 - 2.03 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 24-20 AWG, CRIMP Contact;Pin;16;Brass;Signal;Gold(30)overNickel(50);24-20AWG;Crimp Contact; male; 0.2÷0.6mm2; 20÷24AWG; Type III+; gold plated; 13A MULTIMATE Type III+ Series 24-20 AWG Discrete Wire Crimp Signal Pin Contact Crimp contact 13 A Male 20...24 AWG, 66103-4, TE Connectivity TE Connectivity Type III+ 系列 160A 公 压接端接 圆形 连接器 触芯, 24 → 20 AWG 线规格 III+ PIN,24-20,30AU/FL,LP
66602-6
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 14-18 AWG TIN CRIMP Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinTin-Lead over Nickel (50) Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.79 - 3.81 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ PIN,18-14,TIN-LEAD,SMPACK
211773-3
te connectivity / amp
23-19 CPC RECEPT REV SEX Standard Circular Connectors 23-19 RECEPT REV SEX CONN RCPT CPC 19POS REV SER 1 Standard Circular Connector 23-19 RECEPT REV SEX Conn CPC M 19 POS Crimp ST Cable Mount 19 Terminal 1 Port
66098-1
te connectivity / amp
III+ PIN,18-16,30AU>10,STRIP Multimate CONN PIN 16-18 AWG 30GOLD CRIMP Type III Series Size 16 Male Circular Connector Contact, Crimp,Wire size 18 to 16AWG Pin & Socket Connectors III+ PIN 18-16 30AU>10 STRIP 66098-1 Contact PIN Crimp ST Cable Mount Strip Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinTin-Lead Contact Mating Area Plating MaterialWire Range = 0.80-1.40² [18-16] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts MultimateIII,contact,pin,0.80-1.40mm² TE Connectivity Type III 系列 公 压接端接 圆形 连接器 触芯, 使用于Multimate III 系列连接器, 18 → 16 AWG 线规格
66361-1
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece CONN PIN 14-18AWG 30GOLD CRIMP Series 1 gold plated pin contact Standard Circular Contacts TYPE III+ PIN 18-14 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area Plating MaterialWire Range = 0.80-2.00² [18-14] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact Base MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CRIMP PIN, TYPE3, SIZE16, PK10 III+PIN,18-14,30AU>10,LP TE Connectivity Type III+ 系列 公 压接端接 圆形 连接器 触芯, 使用于CPC 连接器、G 系列连接器、M 系列连接器, 18 → 14 AWG 线规格 III+ PIN,18-14,30AU>10,LP
1-66098-9
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN 18-16AWG #16 TIN Pin & Socket Connectors II+ PIN 18-16 TIN Conn Contact PIN 1 POS Crimp ST Cable Mount 1 Terminal 1 Port Strip Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinTin Contact Mating Area Plating MaterialWire Range = 0.80-1.40² [18-16] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts II+ PIN, 18-16,TIN STRIP
66106-8
te connectivity / amp
III+ PIN,26-24,30AU/FL,STRIP Contact PIN Crimp ST Cable Mount Strip Multimate CONN PIN .062 24-26AWG AU CRIMP CONN PIN 24-26 AWG GOLD CRIMP Pin & Socket Connectors III+ PIN26-2430 Contact PIN Crimp ST Cable Mount Strip Product Highlights:PinGold (30) over Nickel (50) Contact Mating Area PlatingWire Range = 0.12-0.24² [26-24] mm [AWG]Insulation Diameter = .89 - 1.40 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+PIN,26-24,30AU/FL,STRIP MULTIMATE Type III+ Series 24-20 AWG Discrete Wire Crimp Signal Pin Assembly TE Connectivity Type III+ 系列 公 压接触点, 压接, 镀金触点
66099-3
te connectivity / amp
III+ PIN,18-16,15AU/FL,LP Multimate CONN PIN 16-18AWG GOLD CRIMP Contact Crimp Pin 18-16AWG Multimate Standard Circular Contacts 18-16 AWG CRIMP PIN Contact PIN Crimp ST Cable Mount Loose Piece Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinGold (15) over Nickel (50) Contact Mating Area PlatingWire Range = 0.80-1.40² [18-16] mm [AWG]Insulation Diameter = 2.03 - 2.54 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts CONTACT, PIN, 18-16AWG, CRIMP Contact;Pin;16;Brass;Signal;Gold(15)overNickel(50);18-16AWG;Crimp TE Connectivity Type III+ 系列 公 压接接线端子, 压接, 镀金镀镍触点
66103-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Multimate CONN PIN 20-24AWG TIN CRIMP Standard Circular Contacts PIN MALE CRIMP BULK 20000 Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:PinBright Tin-Lead Contact Mating Area PlatingWire Range = 0.20-0.60² [24-20] mm [AWG]Insulation Diameter = 1.02 - 2.03 mmBrass Contact MaterialSearch Keywords:CPC (Circular Plastic) & Metal Shell CPC, M Series Pin & Socket, Lighting Interconnection, Precision Pin and Socket, Cabled Power, contacts III+ PIN,24-20,TIN-LEAD,LP
211773-1
te connectivity / amp
Conn CPC SKT 19 POS Crimp ST Panel Mount 19 Terminal 1 Port CPC Connectors CONN RECEPT CPC 19POS REV SER 1 19 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 23 with Female Contacts Standard Circular Connector RECEPTACLE 19 PIN shell size 23 Conn CPC SKT 19 POS Crimp ST Panel Mount 19 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 19ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCReceptacle;19Pos.;Sz.23;Series1;PanelMnt;RevSex Female receptacle series CPC 19-pin CPC 1 19P Female 23, 211773-1, TE Connectivity TE Connectivity 19路 面板安装 直向 连接器 插座 , 母触点 23-19 CPC RECEPT REV SEX
213827-8
te connectivity / amp
Conn CPC SKT 19 POS Solder ST Thru-Hole 19 Terminal 1 Port CPC Connectors CONN CPC RCPT 19POS Standard Circular Connector CPC 23-19 RECPT ASSY Conn CPC SKT 19 POS Solder ST Thru-Hole 19 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 19ReceptacleSocketPreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC 23-19 RECPT ASSY
213781-9
te connectivity / amp
Conn CPC SKT 19 POS Solder ST Panel Mount 19 Terminal 1 Port Cable Assemblies CPC RECPT ASSEMBLY SIZE 23-19 CPC Connectors CONN CPC RECPT 19POS Standard Circular Connector CPC RECPT ASSEMBLY SIZE 23-19 Conn CPC SKT 19 POS Solder ST Panel Mount 19 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 19ReceptacleSocketPreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC
213827-7
te connectivity / amp
Conn CPC SKT 19 POS Solder ST Thru-Hole 19 Terminal 1 Port Standard Circular Connector CPC RCPT ASSY SIZE 23-19 CPC Connectors CONN CPC RCPT 19POS Conn CPC SKT 19 POS Solder ST Thru-Hole 19 Terminal 1 Port Search Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC
213827-2
te connectivity / amp
Conn CPC SKT 19 POS Solder ST Thru-Hole 19 Terminal 1 Port Standard Circular Connector CPC RCPT ASSY SIZE 23-19 CPC Connectors CONN RCPT 19POS TIN SEALED Conn CPC SKT 19 POS Solder ST Thru-Hole 19 Terminal 1 Port Search Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CPC RCPT ASSY SIZE 23-19

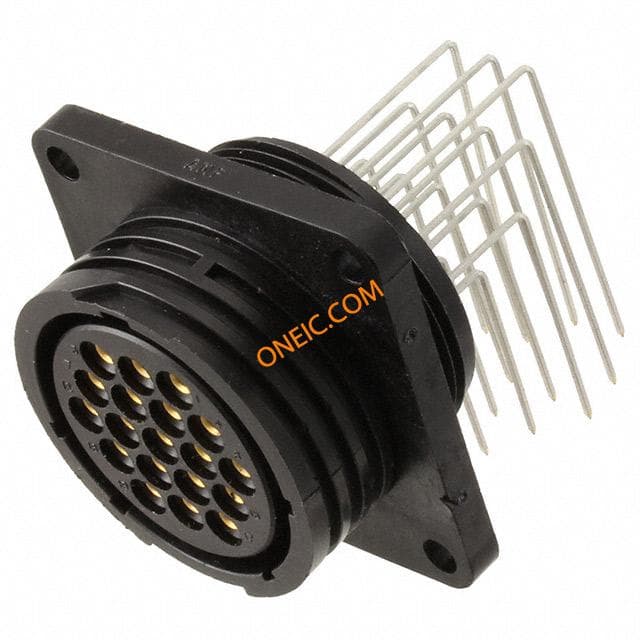

796502-1
