Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 225 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | RoHS,ELVCompliant |
| Tariff No | 85369010 | Leadfree Defin | Not relevant for lead free process |
| Approval Agency | CSA,UL,VDE | RoHSELV Compliance | RoHS compliant / ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage | 600.0 | Voltage Rating | 600 V |
| Current Rating (Max) | 14 A | Voltage - Supply (Min) | 600VAC |
Mechanical
| Color | Red | Depth | 33.02mm |
| Pitch | 5 mm | Width | 27.84mm |
| Height | 27.84 mm | Weight | 0.004 |
| Packaging | Bulk | Row Spacing | 0.197" (5.00mm) |
| Contact Type | Male Pin | Polarization | PolarizingTab |
| 2nd Connector | With | Housing Color | Red |
| Mounting Type | Straight | Angle of Throw | Straight |
| Connector Type | Housing | Fastening Type | Latch Lock |
| Mounting Style | Panel | Number of Rows | 4 |
| Shaft Diameter | Without | Connector Usage | Square Grid |
| Locking Feature | Locking Tab | Housing Material | Thermoplastic - GF |
| Length - Overall | 1.63" | Mounting Feature | Without |
| Package Quantity | 225 | Primary Material | InterconnectSystem |
| Pin Hole Diameter | 0.197" | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Connector - Sensor | Without |
| Mating Orientation | Polarizing Tab | Number of Contacts | 24 |
| Contact Termination | Crimp and Solder | Number of Positions | 24 |
| Center Contact Finish | 5.0 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | AMP Metrimate |
| CAD Drawing | 3D CAD Model | Coded, Keyed | No |
| Manufacturer | AMP | Product Type | Housing |
| Configuration | SquareGrid | Other Specifications | No |
| For Use With/Related Products | Square Grid Pin & Socket Connector | ||
Environmental
| Operating Temperature | -55C to 130C | ||
Documents & Media
PDF Document
Online Document
Similar Parts
66103-4
te connectivity / amp
$6.8286
Details
66406-4
te connectivity / amp
$9.1120
Details
66106-7
te connectivity / amp
$4.1955
Details
66602-2
te connectivity / amp
$4.7824
Details
66332-8
te connectivity / amp
$5.9905
Details
1-66106-5
te connectivity / amp
$2.7397
Details

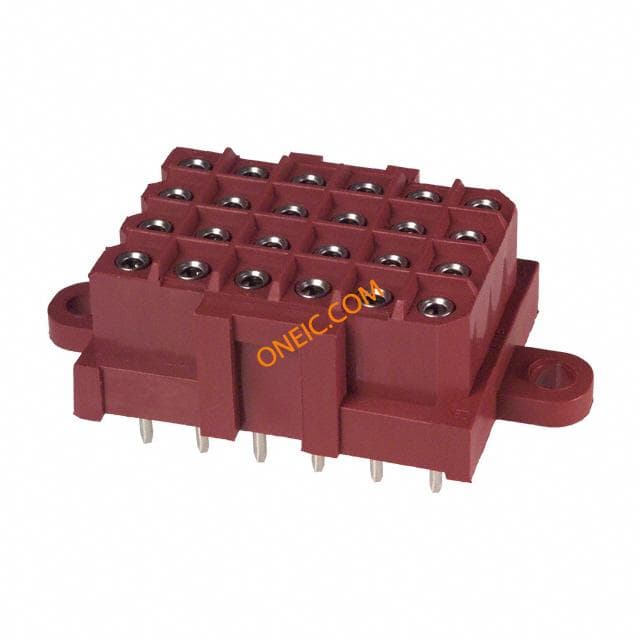

207532-1
te connectivity / amp
$47.2600
Details

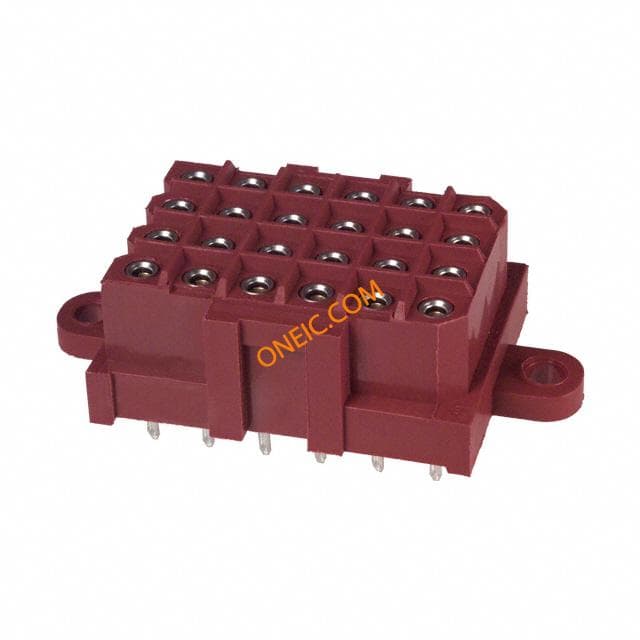

207532-3
te connectivity / amp
$96.5600
Details
66359-9
te connectivity / amp
$3.7400
Details
207532-8
te connectivity / amp
$109.0040
Details

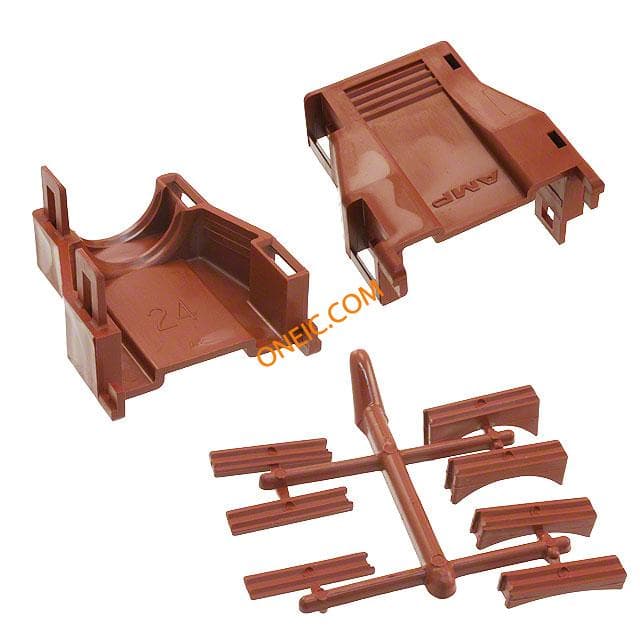

207088-1
