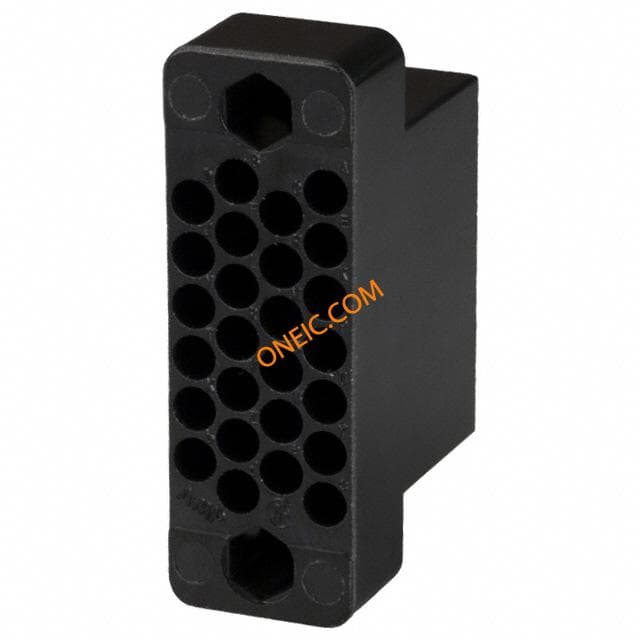

点击放大查看
200512-2
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 152 | ||
Compliance
| RoHS | Not applicable / RoHS Compliant | Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHSELV Compliance | RoHS compliant, ELV compliant | UL Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 250 V | ||
Mechanical
| Color | Black | Depth | 23.24mm |
| Pitch | 3.81 mm | Width | 14.22mm |
| Height | 41.4 mm [ 1.63 in ] | Length | 41.4mm |
| Packaging | Bulk | Body Color | 黑色 |
| Orientation | 直 | Contact Size | 0.062in |
| Housing Color | Black | Mounting Type | Straight |
| Connector Type | Standard | Mounting Style | Free Hanging, Panel |
| Number of Rows | 4 | Shell Material | 母端, 母端 |
| Connector Usage | Receptacle | Housing Material | Phenolic |
| Mounting Feature | None | Package Quantity | Loose Piece |
| Panel Mount Type | 带有 | Primary Material | InterconnectSystem |
| Size / Dimension | 41.4 x 14.22 x 23.24mm | Termination Style | 插座 |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 26 |
| Number of Positions | 26 | Compatible Shell Size | 插针外壳 |
| Center Contact Material | No | 1st Connector Mounting Type | Panel |
Product Info
| Note | Housing accepts type II, type III+ and Subminiature Coaxicon contacts.; Pins an | Type | Housing |
| Gender | RCP | Series | M |
| Manufacturer | M-Series | Product Type | Housing |
| For Use With/Related Products | 引脚外壳 | ||
Environmental
| Operating Range | 不密封 | Operating Temperature | +150°C |
