644752-2
| Manufacturer | |
| Description | Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 2POS .156 TIN Headers & Wire Housings HEADER ASSY 2 POS Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 2POS, 3.96MM MTA-156HEADER-TIN,02PMTA156HDRASSYSQSTRF/L 02P MTA156 HDR ASSY SQ STR F/L |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 200 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Range deg/s | :TE - MTA-156 Series | Voltage Rating | 600 V |
| Switch Function | Friction Lock | Contact Resistance | 3 mohm |
| Current Rating (Max) | 7 A | Voltage - Supply (Min) | 600VAC |
Mechanical
| Color | Natural | Depth | 7.62 mm |
| Pitch | 3.96 mm | Height | 13.33 mm |
| Weight | 0.00068 | Packaging | Bulk |
| Termination | Solder | Contact Type | Male Pin |
| Housing Color | Natural | Mounting Type | Through Hole |
| Connector Type | Header, Unshrouded | Contact Finish | Tin |
| Fastening Type | Friction Lock | Mounting Style | Through Hole |
| Number of Rows | 1 | Contact Material | Copper Alloy |
| Housing Material | Polyester | Length - Overall | 7.92 mm |
| Primary Material | InterconnectSystem | Termination Style | Through Hole |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 2 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 2 |
| Contact Length - Mating | 0.400" (10.16mm) | Termination Post Length | 4.45 mm |
Product Info
| Type | Wire to Board | Gender | HDR |
| Series | MTA-156 | Manufacturer | MTA-156 |
| Product Type | Headers | Application Specifics | Wire-to-Board |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -55C to 105C | ||
Documents & Media
Similar Parts

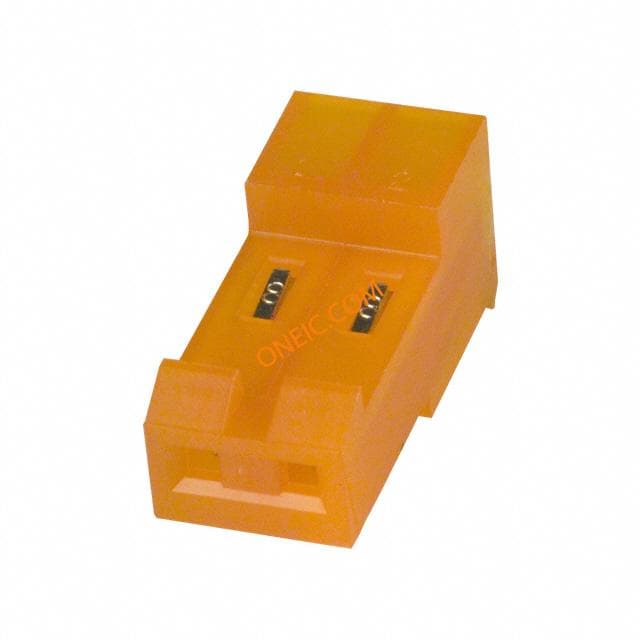

3-640426-2
te connectivity / amp
Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 2POS 18AWG MTA156 MTA 156 2W SKT 18AWG Headers & Wire Housings CLOSED W/O TABS 2P L.R. orange 18 AWG Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HOUSING, 18AWG, 2WAY Connector;Receptacle;2;IDCStandard;LockingRamp;90deg;Nylon;0.156in. Plug; wire-board; female; PIN:2; 3.96mm; IDC; for cable; MTA-156 Cable socket, straight 2P, 3-640426-2, TE Connectivity TE Connectivity MTA-156 系列 2路 3.96mm节距 直角 母 IDC 连接器 , 电缆安装 02P MTA156 CONN ASSY 18AWG ORA
770849-2
te connectivity / amp
Conn Housing RCP 2 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 2POS W/RAMP SL156 2 w housing with polarising tabs Headers & Wire Housings 2P RECP HSG SL-156 Conn Housing RCP 2 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 2Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 2POS, 3.96MM 02PSL156HSGW/LCKRMP&TABS TE Connectivity SL-156 系列 3.96mm 节距 2 路 直 母 电缆安装 压接连接器外壳 02P SL156 HSG W/LCK RMP & TABS
3-640600-2
te connectivity / amp
Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 2POS 20AWG MTA156 Headers & Wire Housings FEED THRU WO TAB 2P L.R. yellow 20 AWG Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 2POS, 3.96MM 02P MTA156 CONN ASSY 20AWG LF
3-641153-2
te connectivity / amp
Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 2POS 18AWG MTA-156
3-640481-2
te connectivity / amp
Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount T/R CONN RCPT 2POS 26AWG .156 BLUE
3-641177-2
te connectivity / amp
Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 2POS 26AWG MTA-156
3-644502-2
te connectivity / amp
Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 2POS 18AWG MTA-156 Headers & Wire Housings 02P MTA156 CONN ASSY 18AWG LF 02P MTA156 CONN ASSY 18AWG LF
3-644569-2
te connectivity / amp
Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 2POS 22AWG MTA-156
3-641307-2
te connectivity / amp
Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount T/R MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 2POS 20AWG .156 YELLOW
3-644376-2
te connectivity / amp
Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 2POS 20AWG MTA-156

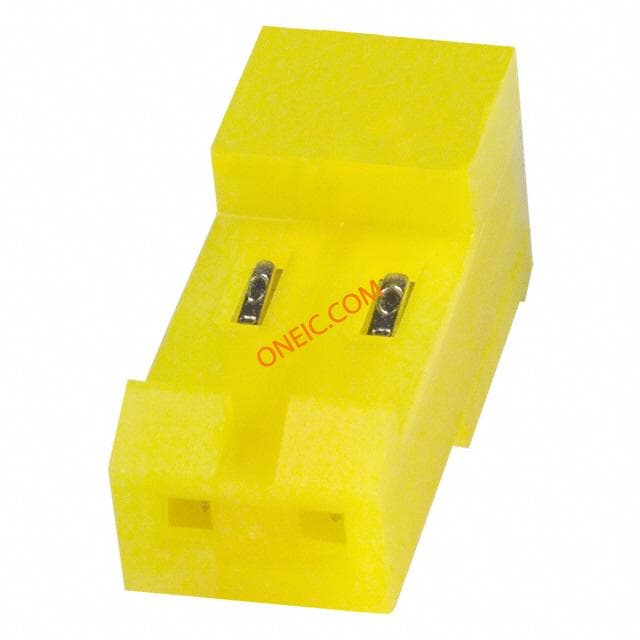

3-640427-2
te connectivity / amp
Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 2POS 20AWG MTA156 MTA 156 2 way SKT 20AWG Headers & Wire Housings CLOSED W/O TABS 2P L.R. yellow 20 AWG Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HOUSING, 20AWG, 2WAY Connector,MTA-156;Receptacle;2;IDCStandard;90deg;Nylon;0.156in.;Yell Plug; wire-board; female; PIN:2; 3.96mm; IDC; for cable; MTA-156 Cable socket, straight 2P, 3-640427-2, TE Connectivity TE Connectivity MTA-156 系列 2路 3.96mm节距 直角 电缆安装 母 IDC 连接器 02P MTA156 CONN ASSY 20AWG YEL

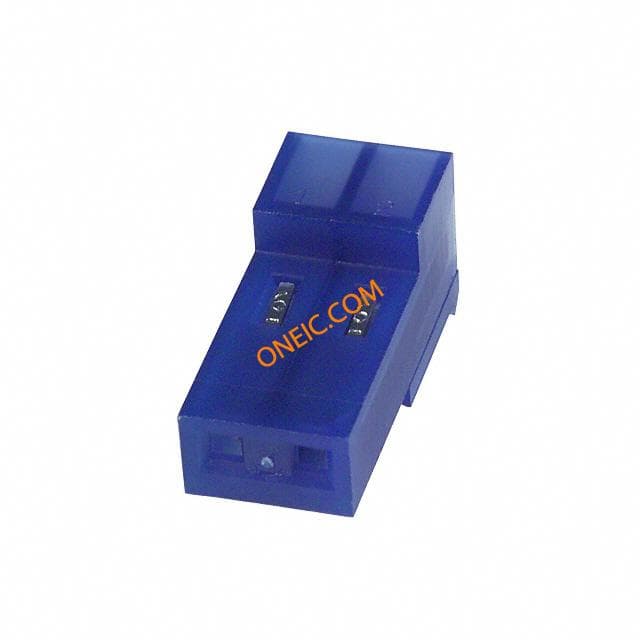

3-640435-2
te connectivity / amp
Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 2POS 26AWG MTA156 Headers & Wire Housings 2 POS RECPT 26 AWG CLOSED END Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 02P MTA156 CONN ASSY 26AWG LF
3-640479-2
te connectivity / amp
Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount T/R MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 2POS 22AWG .156 RED
3-641172-2
te connectivity / amp
Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount CONN RCPT 2POS 26AWG MTA-156
3-641302-2
te connectivity / amp
Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount T/R MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 2POS 18AWG .156 ORANGE Headers & Wire Housings 02C MTA156 ASSY ON 02C MTA156 ASSY ON TAPE LF 02C MTA156 ASSY ON TAPE LF Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
3-641308-2
te connectivity / amp
Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount T/R MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 2POS 22AWG .156 RED
3-644567-2
te connectivity / amp
Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 2POS 18AWG MTA-156
644461-2
TE Connectivity / AMP
Headers & Wire Housings CLOSED WITH TABS 2P Orange 18 AWG MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 2POS MTA-156 18AWG Conn IDC Connector RCP 2 POS 3.96mm IDT RA Cable Mount Conn IDC Connector RCP 2 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board Application

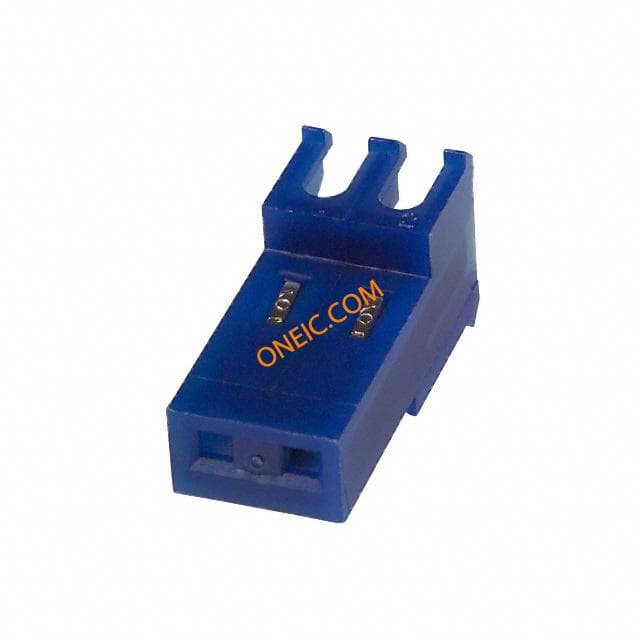

3-640608-2
