3-644376-2
| Manufacturer | |
| Description | Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 2POS 20AWG MTA-156 |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Mechanical
| Color | Black | Pitch | 3.96 mm |
| Packaging | Bulk | Shrouding | No |
| Wire Type | Discrete or Ribbon Cable | Cable Exit | 90° |
| Wire Gauge | 20 AWG | Termination | IDT |
| Contact Type | Female Socket | 2nd Connector | With |
| Housing Color | Black | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Feed Thru | Contact Finish | Tin Over Nickel |
| Fastening Type | Locking Ramp | Number of Rows | 1 |
| Connector Usage | Receptacle | Locking Feature | Locking Ramp |
| Contact Material | High Conductivity Copper Alloy | Housing Material | Nylon |
| Mounting Feature | Without | Panel Mount Type | Without |
| Cable Termination | IDC | Mating Orientation | Without |
| Number of Contacts | 2 | Number of Positions | 2 |
| Contact Layout, Typical | 3.96 [0.156] | Contact Finish Thickness | 80µin (2.03µm) |
| Small Diameter Recovered | No | Wire Gauge or Range - mm2 | 0.5-0.6² [20] |
Product Info
| Note | Mates with tin-plated square posts only | Type | IDC Connector |
| Gender | F | Features | Feed Through |
| Manufacturer | AMP | Product Type | MTA-156 Connectors |
| Connection Type | Wire | Number of Positions Omitted | None |
Similar Parts
644752-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 2POS .156 TIN Headers & Wire Housings HEADER ASSY 2 POS Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 2POS, 3.96MM MTA-156HEADER-TIN,02PMTA156HDRASSYSQSTRF/L 02P MTA156 HDR ASSY SQ STR F/L
640445-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 2POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR STR 2P Square post tin Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.156", 2WAY Connector,MTA-156;Male;2;CopperAlloy;7;600;0.156in.;Polyester;White Connector: wire-board; Series: MTA-156; 3.96mm; male; socket; PIN:2 Pin header straight 2P, 640445-2, TE Connectivity TE Connectivity MTA-156 系列 3.96mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 02P MTA156 HDR ASSY FL/STR SN
647142-2
te connectivity / amp
Conn Shrouded Header HDR 2 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 2POS R/A .156 GOLD
641208-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 2POS .156 30 GOLD Headers & Wire Housings FRCTN LK HDR STR 2P Square post gold 02P MTA156 HDR ASSY FL ST 30AU
647123-2
te connectivity / amp
Conn Shrouded Header HDR 2 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 2POS VERT .156 TIN Headers & Wire Housings 02P MTA156 SHRD HDR 500 02P MTA156 SHRD HDR ASSY SQ SN 02P MTA156 SHRD HDR ASSY SQ SN Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
3-641208-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 2POS .156 30 GOLD TE Connectivity MTA-156 Series 3.96mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR STR 2P Square post gold Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole Product Highlights:2 PositionsWith ContactsHousing Gender = Header - PinContact Gender = PinMTA-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONN, PCB HEADER 2 PINS MTA-156HEADERGOLD,02PMTA156HDRASSYFLSTLF TE Connectivity MTA-156 系列 3.96mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 02P MTA156 HDR ASSY FL ST LF
640383-2
te connectivity / amp
Conn Unshrouded Header HDR 2 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 2POS .156 TIN Headers & Wire Housings FLAT HEADER STRT 2P Square post tin Conn Unshrouded Header HDR 2 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector,MTA-156;Male;2;CopperAlloy;7;600;0.156in.;Polyester;White 02P MTA156 HDR ASSY STR SQ SN

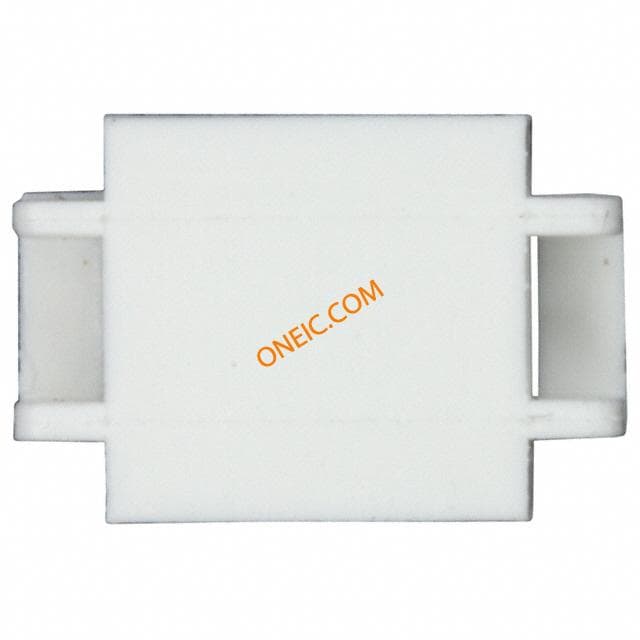

643071-2
