644751-2
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 2 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 2POS .156 TIN Headers & Wire Housings 2P HDR ASSY R/A Conn Unshrouded Header HDR 2 POS 3.96mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 02P MTA156 HDR ASSY R/A |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 2000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | CSA File Number | LR7189 |
| Standard Number | CSA, UL | CSA Certification | Certified |
| UL Flammability Rating | UL 94V-0 | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 600 V | Voltage - Supply | 600 |
| Current Rating (Max) | 7 A | ||
Mechanical
| Color | Natural | Pitch | 3.96 mm |
| Length | 7.92 mm [ .312 in ] | Sealed | Not Sealed |
| Packaging | Bulk | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Through Hole, Right Angle |
| Connector Type | Header, Unshrouded | Contact Finish | Tin |
| Contact Timing | Without | Mounting Style | 不带 |
| Number of Pins | 2 | Number of Rows | 1 |
| Package / Case | Plug | Plating - Body | Nickel |
| Insert Material | 铜合金 | Contact Material | Copper Alloy |
| Housing Material | Polyester | Package Quantity | 1 |
| Panel Mount Type | 通孔 - 焊接 | Termination Style | Through Hole |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 2 |
| Number of Positions | 2 | Compatible Shell Size | MTA .156 连接器组件或 SL .156 连接器组件 |
| Mounting Hole Diameter | 不带 | Contact Finish - Mating | 锡 |
| Contact Layout, Typical | 直插式 | Contact Length - Mating | 0.390" (9.91mm) |
| Termination Post Length | 4.45 mm | Static Discharge Shielding | 不带 |
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | MTA-156 | Product Type | Headers |
| Application Specifics | Wire-to-Board | Number of Positions Loaded | All |
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] |
Similar Parts

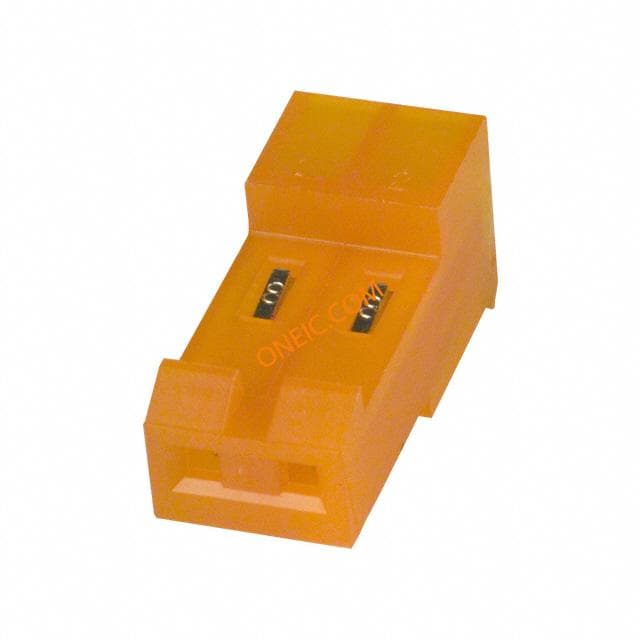

3-640426-2
