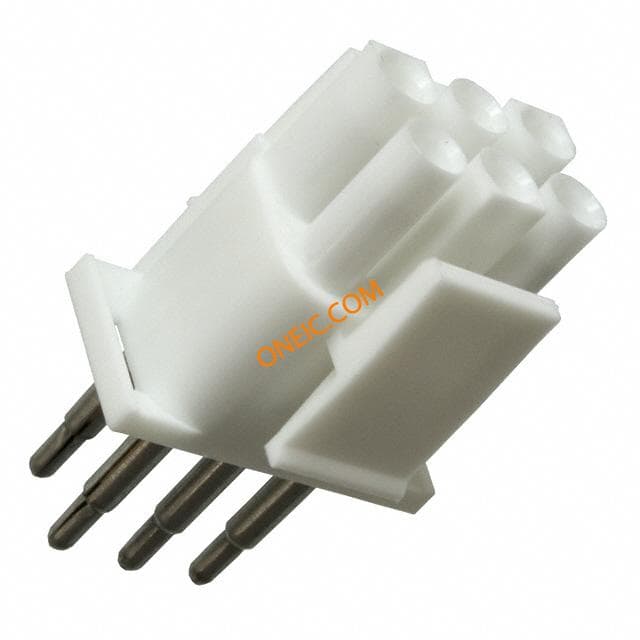

643424-3
| Manufacturer | |
| Description | Conn Power SKT 6 POS 6.35mm Solder ST Thru-Hole 1 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 6POS VERT .250 GOLD Pin & Socket Connectors 6P HDR ASSY POL 94V0 Conn Power SKT 6 POS 6.35mm Solder ST Thru-Hole 1 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 06P UMNL HDR ASSY POL 94VO LF |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | CSA File Number | LR7189 |
| Standard Number | CSA, UL | CSA Classification | 已认证 |
| UL Flammability Rating | UL 94V-0 | Approval Agency Marking | 是 |
Electrical
| Voltage Rating | 600 V | Voltage - Supply | 600 |
| Current Rating (Max) | 19 A | ||
Mechanical
| Color | Natural | Pitch | 6.35 mm |
| Width | 20.32 | Length | 20.32 |
| Sealed | Not Sealed | Packaging | Bulk |
| Row Spacing | 0.250" (6.35mm) | Termination | Solder |
| Contact Type | Female Socket | Mounting Type | Through Hole |
| Connector Type | Header | Contact Finish | Gold |
| Fastening Type | Locking Ramp | Mounting Style | Through Hole |
| Number of Pins | 6 | Number of Rows | 3 |
| Height (Inches) | 13.97 | Contact Material | Phosphor Bronze |
| Housing Material | Nylon | Package Quantity | 100 |
| Panel Mount Type | 通孔 - 焊接 | Termination Style | Pin |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 6 |
| Number of Positions | 6 | Shell Size - Insert | 插头 |
| Compatible Shell Size | 与插头护套插接（使用插针端子） | Mounting Hole Diameter | 带有 |
| Contact Finish - Mating | 锡 | Contact Layout, Typical | 矩阵 |
| Termination Post Length | 3.81 mm [ .149 in ] | Contact Finish Thickness | 30µin (0.76µm) |
| Static Discharge Shielding | 不带 | ||
Product Info
| Type | Power | Gender | SKT |
| Features | Board Guide | Product Type | Headers |
| Application Specifics | Power | Assembly Configuration | Without |
| Number of Positions Loaded | All | ||
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -40 – 105 °C [ -40 – 221 °F ] |
| Thermal Resistance of Package | 3.18 mm [ .125 in ] | ||
