350848-6
| Manufacturer | |
| Description | Conn Housing RCP 6 POS 6.35mm Crimp ST Cable Mount One Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 6POS UNIV-MATE-N-LOK Pin & Socket Connectors 06P PLUG TEST 94V0 Conn Housing RCP 6 POS 6.35mm Crimp ST Cable Mount One Piece Product Highlights:Test ConnectorUniversal MATE-N-LOKNot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 06P UMNL PLUG TEST ASSY 94V0 |
| Category |
Business
| Other Names | A25735 | Product Category | Pin & Socket Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | CSA File Number | LR7189 |
| Standard Number | CSA, UL | CSA Certification | Certified |
| UL Flammability Rating | UL 94V-0 | Approval Agency Marking | 是 |
Electrical
| Voltage Rating | 600 V | Voltage - Supply | 600 |
| Current Rating (Max) | 19 A | Voltage - Supply (Min) | 600VAC |
Mechanical
| Color | Natural | Pitch | 6.35 mm |
| Sealed | Not Sealed | Packaging | Bulk |
| Wire Type | Discrete | Wire Gauge | 30 – 10 |
| Row Spacing | 0.250" (6.35mm) | Contact Type | Male Pin |
| Housing Color | Natural | Mounting Type | Straight |
| Connector Type | Plug | Contact Finish | Tin |
| Fastening Type | Latch Lock | Mounting Style | Free Hanging |
| Number of Pins | 6 | Number of Rows | 3 |
| Package / Case | Plug | Housing Material | Nylon |
| Package Quantity | 1 | Cable Termination | Crimp |
| Termination Style | Socket | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 6 | Number of Positions | 6 |
| Compatible Shell Size | 通用 MATE-N-LOK 插座 | Mounting Hole Diameter | 带有 |
| Contact Finish - Mating | 预镀锡 | Contact Layout, Typical | 矩阵 |
| Static Discharge Shielding | 带有 | ||
Product Info
| Type | Housing | Gender | RCP |
| Features | Test Assembly | Product Type | Receptacle Housings |
| Application Specifics | Power | Assembly Configuration | Without |
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] |
Documents & Media
Similar Parts
1-350781-9
TE Connectivity / AMP
Power to the Board CAP HOUSE 6 POS BLACK UL94V-0 .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL CAP 6POS 94V-0 BLK
350834-4
te connectivity / amp
Conn Power SKT 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 6POS VERT .250 GOLD Pin & Socket Connectors 06P UMNL HDR ASSY PC 94VO LF .250" Centerline, 600 V, 19 - 36 A max Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 06P UMNL HDR ASSY PC 94VO LF
350989-3
TE Connectivity / AMP
Pin & Socket Connectors 06P UMNL HDR ASSY LNG/TL .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 6POS VERT UMNL GOLD

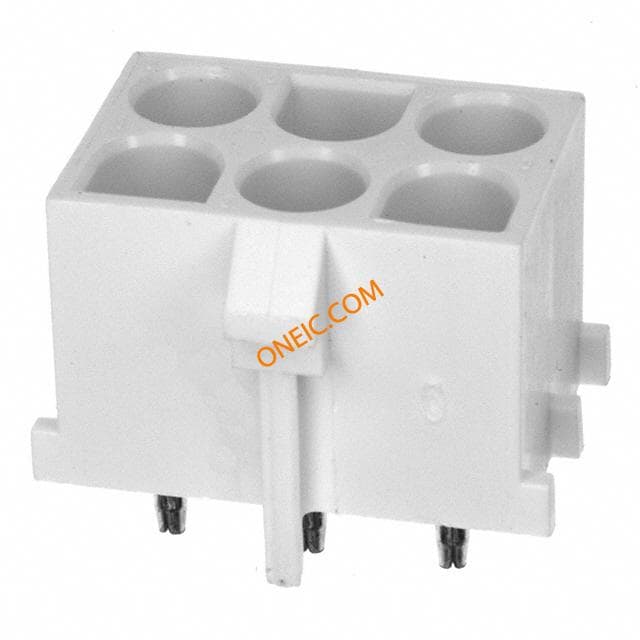

643424-1
te connectivity / amp
Conn Power SKT 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 6POS VERT .250 TIN TE Connectivity Universal MATE-N-LOK Series 6.35mm 6 Way 3 Row Straight PCB Socket Through Hole Power Power to the Board 06P UMNL HDR ASSY PO Conn Power SKT 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONNECTOR, HEADER, MATE-N-LOK, 6WAY HEADERVERTPCB6WAYPIN TE Connectivity Universal MATE-N-LOK 系列 3行 6路 直 6.35mm节距 通孔 印刷电路板插座, 功率 06P UMNL HDR ASSY POL 94VO
350827-1
te connectivity / amp
Conn Power SKT 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 6POS VERT .250 TIN MATE-N-LOK 6 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac/dc Pin & Socket Connectors 6 POS STD TAIL SOCKT Conn Power SKT 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER, SOCKET, 6WAY Connector,SoftShell;UniversalMATE-N-LOK,UniversalMATE-N-LOKII;6;Nylon Socket; wire-board; female; 6.35mm; PIN:6; tinned; Pin layout:2x3 TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 6路 直 印刷电路板插座, 焊接端接, 19A , 通孔 06P UMNL HDR ASSY PC 94VO
350827-2
te connectivity / amp
Conn Power SKT 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 6POS VERT .250 AU Conn Power SKT 6 POS 6.35mm Solder ST Thru-Hole 6 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 x 6.35 mm Centerline, MatrixNumber of Circuits = 6Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP

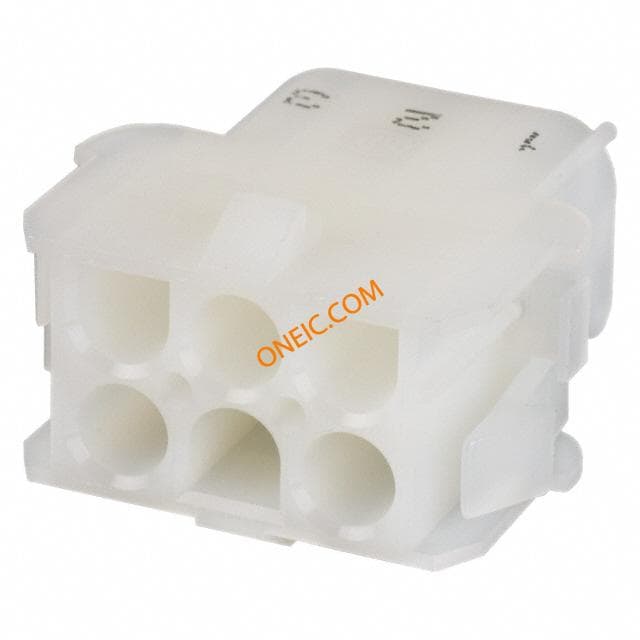

2-480705-0
