1-480704-4
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Power to the Board | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | CSA File Number | LR7189 |
| Standard Number | CSA, UL | CSA Certification | Certified |
| UL Flammability Rating | UL 94V-2 | Approval Agency Marking | 是 |
Electrical
| Voltage Rating | 600 V | Voltage - Supply | 600 |
| Current Rating (Max) | 19 A | ||
Mechanical
| Color | Yellow | Pitch | 6.35 mm |
| Sealed | Not Sealed | Packaging | Bulk |
| Body Color | 黄色 | Row Spacing | 0.250" (6.35mm) |
| Contact Type | Male or Female | Mounting Type | Straight |
| Connector Type | Plug | Contact Finish | Without |
| Fastening Type | Latch Lock | Mounting Style | Free Hanging |
| Number of Rows | 2 | Package / Case | Plug |
| Housing Material | Polyamide (PA) | Package Quantity | 1 |
| Termination Style | Wire | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 6 | Contact Termination | Crimp |
| Number of Positions | 6 | Compatible Shell Size | 适当的通用 MATE-N-LOK 母端或公端 |
| Contact Layout, Typical | 矩阵 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Product Type | Housings |
| Assembly Configuration | Without | ||
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] |
Documents & Media
Online Document
Similar Parts
350711-1
te connectivity / amp
$7.8880
Details

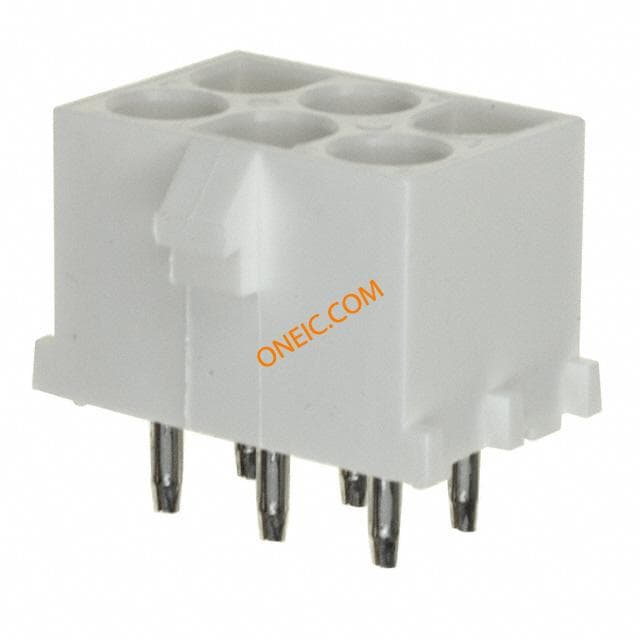

350834-4
te connectivity / amp
$11.2027
Details
350989-4
te connectivity / amp
$9.5200
Details

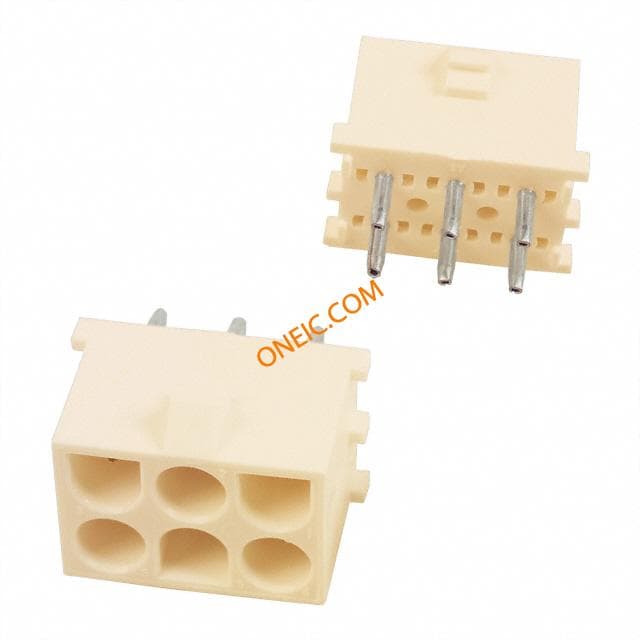

350585-4
te connectivity / amp
$26.4539
Details
350827-1
te connectivity / amp
$5.5080
Details
350431-2
te connectivity / amp
$32.1504
Details
350762-5
te connectivity / amp
$19.4956
Details
350827-2
te connectivity / amp
$14.5520
Details
350732-4
te connectivity / amp
$62.5600
Details
350431-1
te connectivity / amp
$2.3936
Details
641969-1
te connectivity / amp
$5.7356
Details
350762-4
te connectivity / amp
$3.6040
Details
1-480705-1
te connectivity / amp
$1.0200
Details

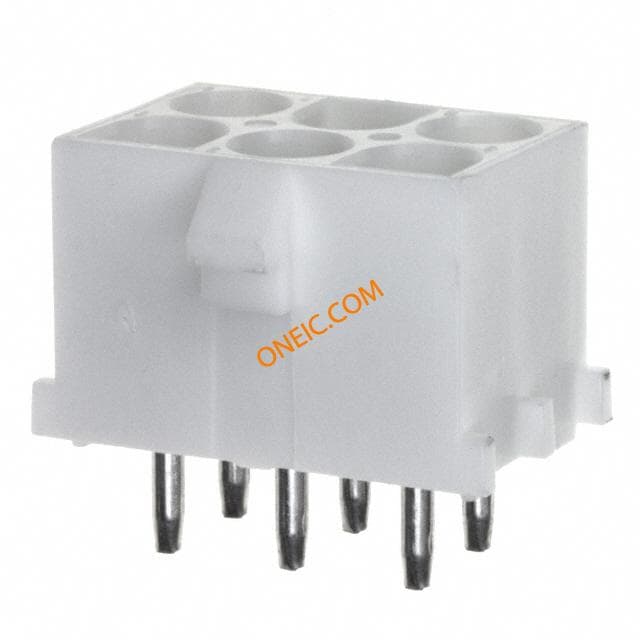

350834-1
te connectivity / amp
$5.9514
Details
350711-4
te connectivity / amp
$27.4040
Details

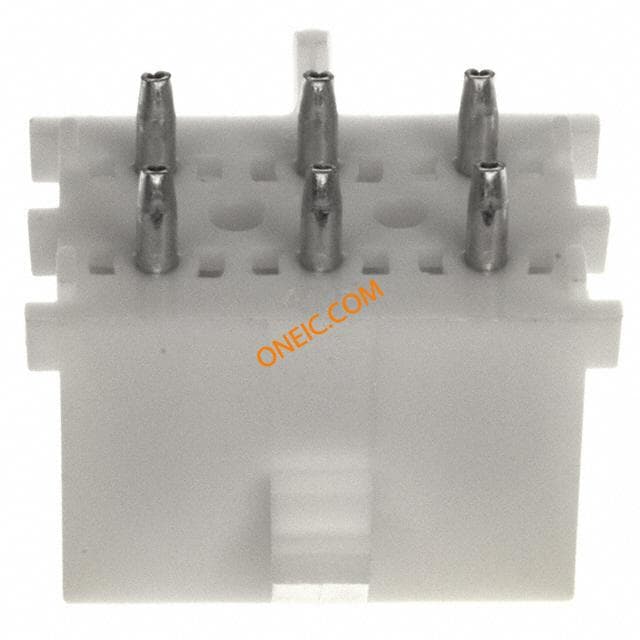

643424-3
