640387-9
| Manufacturer | |
| Description | Conn Wire to Board HDR 9 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 9POS .156 TIN Headers & Wire Housings POLARIZED HDR RA 9P Square post tin Conn Wire to Board HDR 9 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 9Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA156 HDR ASSY SQ R/A |
| Category |
Business
| Other Names | A19937 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | Standard Number | UL |
| UL Flammability Rating | UL 94V-0 | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 600 V | Switch Function | Friction Lock |
| Voltage - Supply | 600 | Current Rating (Max) | 7 A |
Mechanical
| Color | Natural | Pitch | 3.96 mm |
| Height | 10.79 mm [ .425 in ] | Length | 35.66 mm [ 1.404 in ] |
| Sealed | Not Sealed | Packaging | Bulk |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole, Right Angle | Connector Type | Header, Unshrouded |
| Contact Finish | Tin | Contact Timing | Without |
| Fastening Type | Friction Lock | Mounting Style | 不带 |
| Number of Pins | 9 | Number of Rows | 1 |
| Package / Case | Plug | Plating - Body | Nickel |
| Insert Material | 铜合金 | Contact Material | Copper Alloy |
| Housing Material | Polyester | Package Quantity | 500 |
| Panel Mount Type | 通孔 - 焊接 | Termination Style | Through Hole |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 9 |
| Number of Positions | 9 | Compatible Shell Size | MTA .156 连接器组件或 SL .156 连接器组件 |
| Mounting Hole Diameter | 不带 | Contact Finish - Mating | 锡 |
| Contact Layout, Typical | 直插式 | Contact Length - Mating | 0.400" (10.16mm) |
| Termination Post Length | 3.18 mm | Contact Finish Thickness | 150 – 250 |
| Static Discharge Shielding | 不带 | Actuator Length, Right Angle | Rear |
Product Info
| Type | Wire to Board | Gender | HDR |
| Series | MTA-156 | Product Type | Headers |
| Application Specifics | Wire-to-Board | Number of Positions Loaded | All |
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] |
| Thermal Resistance of Package | 1.6 mm [ .063 in ] | ||
Documents & Media
Similar Parts

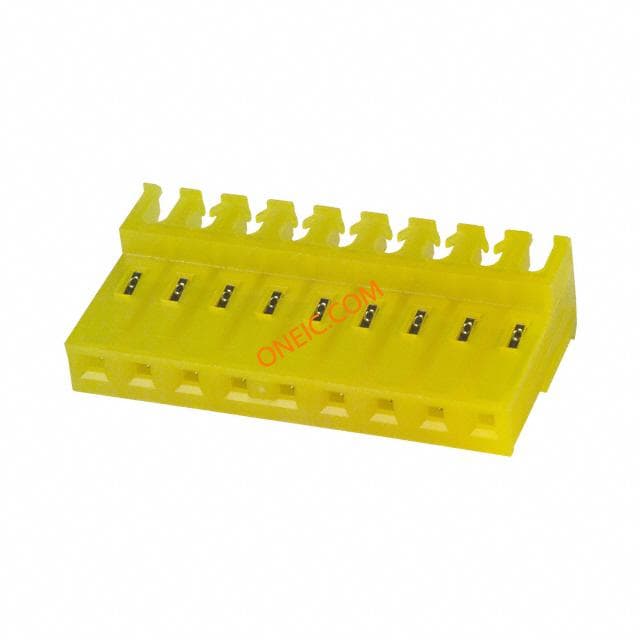

3-640605-9
