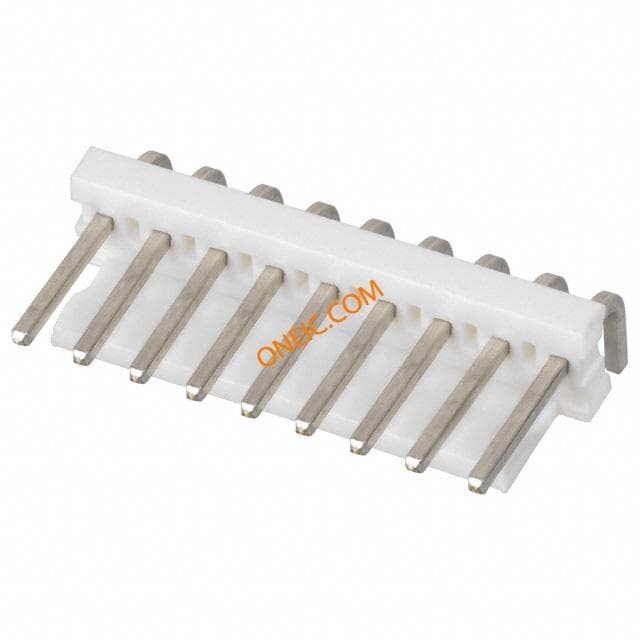

640433-9
| Manufacturer | |
| Description | Conn IDC Connector F 9 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 9POS MTA-156 22AWG Headers & Wire Housings CLOSED W/O TABS 9P Red 22 AWG Conn IDC Connector F 9 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 9Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA156 CONN ASSY 22AWG RED |
| Category |
Business
| Other Names | A26087 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | UL Rating | 获得认可 |
| UL File Number | E28476 | CSA File Number | LR7189 |
| Standard Number | CSA, UL | CSA Certification | Certified |
| Material Flammability Rating | UL 94V-2 | ||
Electrical
| Voltage Rating | 600 VAC | Voltage - Supply | 600 |
| Connector Impedance | IDC | Current Rating (Max) | 7 A |
Mechanical
| Color | Red | Pitch | 3.96 mm |
| Height | 9.02 mm [ .355 in ] | Length | 35.66 mm [ 1.404 in ] |
| Packaging | Bulk | Wire Type | Discrete or Ribbon Cable |
| Body Color | 白色 | Cable Type | 分离式导线, 绞线 |
| Wire Gauge | 22 AWG | Termination | IDT |
| Contact Type | Female Socket | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Contact Finish | Tin-Lead Over Nickel |
| Contact Timing | Without | Mounting Style | Wire |
| Number of Rows | 1 | Shell Material | 标准 |
| Insert Material | 铜合金 | Contact Material | Copper Alloy |
| Housing Material | Nylon | Package Quantity | 250 |
| Panel Mount Type | 不带 | Cable Termination | IDC |
| Termination Style | IDC | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 9 | Termination Finish | 带有 |
| Contact Termination | Locking Lance | Insulation Diameter | 2.41 mm [ .095 in ] |
| Number of Positions | 9 | Compatible Shell Size | MTA .156 头 |
| Mounting Hole Diameter | 不带 | Contact Finish - Mating | 锡铅 |
| Contact Layout, Typical | 同轴 | Surface Mount Land Size | Without |
| Contact Finish Thickness | 80µin (2.03µm) | Static Discharge Shielding | 带有 |
Product Info
| Note | 肋之间的条纹可能会减少 | Type | IDC Connector |
| Gender | F | Series | MTA-156 |
| Features | Closed End | Sealable | 否 |
| Product Type | Connector Assemblies | ||
Environmental
| Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] | ||
Documents & Media
