点击放大查看
640432-9
| Manufacturer | |
| Description | Conn IDC Connector F 9 POS 3.96mm IDT RA Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 9POS MTA-156 20AWG Headers & Wire Housings CLOSED W/O TABS 9P Yellow 20 AWG Conn IDC Connector F 9 POS 3.96mm IDT RA Cable Mount Product Highlights:MTA-156 ConnectorsNumber of Positions = 9Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA156 CONN ASSY 20AWG YEL |
| Category |
Business
| Other Names | A26110 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 1 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | UL Rating | 获得认可 |
| Part Status | E28476 | CSA File Number | LR7189 |
| Standard Number | CSA, UL | CSA Certification | Certified |
| UL Flammability Rating | UL 94V-2 | ||
Electrical
| Voltage Rating | 600 VAC | Voltage - Supply | 600 |
| Connector Impedance | 刺破式压接 (IDC) | Current Rating (Max) | 7 A |
Mechanical
| Color | Yellow | Pitch | 3.96 mm |
| Height | 9.02 mm [ .355 in ] | Length | 35.66 mm [ 1.404 in ] |
| Sealed | Not Sealed | Packaging | Bulk |
| Wire Type | Discrete or Ribbon Cable | Body Color | 黄色 |
| Cable Type | 分离式导线 | Wire Gauge | 20 AWG |
| Termination | IDT | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Contact Finish | Tin-Lead Over Nickel | Contact Timing | Without |
| Mounting Style | Wire | Number of Pins | 9 |
| Number of Rows | 1 | Package / Case | Receptacle |
| Shell Material | 标准外形 | Insert Material | 铜合金 |
| Contact Material | Copper Alloy | Housing Material | Nylon |
| Package Quantity | 250 | Panel Mount Type | 不带 |
| Cable Termination | IDC | Termination Style | IDC |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 9 |
| Contact Termination | Locking Lance | Insulation Diameter | 2.41 mm [ .095 in ] |
| Number of Positions | 9 | Compatible Shell Size | MTA .156 公端 |
| Mounting Hole Diameter | 不带 | Contact Finish - Mating | 锡铅 |
| Contact Layout, Typical | 直插式 | Contact Finish Thickness | 80µin (2.03µm) |
| Static Discharge Shielding | 带有 | ||
Product Info
| Type | IDC Connector | Gender | F |
| Series | MTA-156 | Features | Closed End |
| Product Type | Connector Assemblies | Installation Type | Closed End |
| Output Configuration | 90° | ||
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] |
Similar Parts
644760-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 9POS VERT .156 GOLD
644752-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 9POS .156 TIN Headers & Wire Housings 09P MTA156 HDR ASSY Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole Product Highlights:9 PositionsWith ContactsHousing Gender = Header - PinContact Gender = PinMTA-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA156 HDR ASSY SQ STR F/L
641120-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 9POS STR .156 15GOLD Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
647123-9
te connectivity / amp
Conn Shrouded Header HDR 9 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 9POS VERT .156 TIN Headers & Wire Housings 09P MTA156 SHRD HDR ASSY SQ SN MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-156 ConnectorsNumber of Positions = 9Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
640388-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 9POS .156 TIN TE Connectivity 3.96mm Pitch 9 Way 1 Row Straight PCB Header, Solder Termination, 7A Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 9Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Receptacle,2.54mmIDT,straight,9w TE Connectivity MTA-156 系列 3.96mm节距 9路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 09P MTA156 HDR ASSY RN STR F/L
640385-9
te connectivity / amp
Conn Unshrouded Header HDR 9 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 9POS .156 TIN Headers & Wire Housings FLAT HEADER R.A. 9P Square post tin Conn Unshrouded Header HDR 9 POS 3.96mm Solder RA Thru-Hole Product Highlights:Header9 PositionsPreloadedHeader Gender = PlugContact Gender = PinSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA156 HDR ASSY SQ R/A
640389-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 9POS .156 TIN Headers & Wire Housings FRCTN LK HDR RA 9P Square post tin Conn Wire to Board HDR 9 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 9Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA156 HDR ASSY SQ R/A F/L
3-641208-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 9POS .156 30 GOLD Headers & Wire Housings FRCTN LK HDR STR 9P Square post gold Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 09P MTA156 HDR ASSY FL ST LF
644753-9
te connectivity / amp
Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 9POS VERT .156 TIN Headers & Wire Housings 09P MTA156 HDR ASSY RN STR F/L 09P MTA156 HDR ASSY RN STR F/L 09P MTA156 HDR ASSY RN STR F/L Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

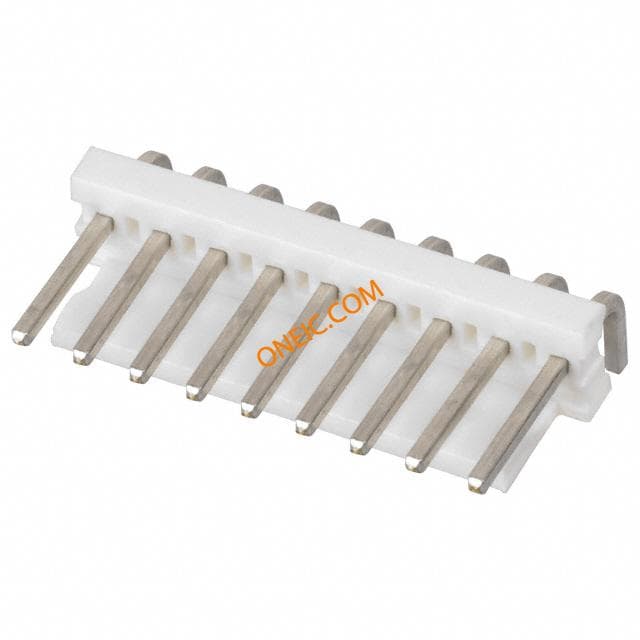

640387-9
