640251-2
| Manufacturer | |
| Description | Conn Housing RCP 2 POS 3.96mm Crimp ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECPT 2POS W/O RAMP SL-156 Headers & Wire Housings SL156 HSG W/O RAMP Conn Housing RCP 2 POS 3.96mm Crimp ST Cable Mount Product Highlights:SL-156 HousingsNumber of Positions = 2Mating Type = ReceptacleWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP SL-156POSTCONHG,02PSL156HSGW/ORAMPNATL 02P SL156 HSG W/O RAMP NATL |
| Category |
Business
| Other Names | A19970 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 500 |
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | UL94V-0FlammabilityRating,RoHSCompliant,ELVCompliant |
| UL Rating | 已获认证 | Leadfree Defin | Not relevant for lead free process |
| UL File Number | E28476 | Approval Agency | UL |
| CSA File Number | LR 7189 | Standard Number | CSA, UL |
| CSA Certification | Certified | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 600 V | Voltage - Supply | 250 VAC |
| Connector Impedance | 压接 | Current Rating (Max) | 7 A |
| Voltage - Supply (Min) | 250VAC | ||
Mechanical
| Color | Natural | Depth | 16.76 mm |
| Pitch | 3.96 mm | Height | 6.35 mm |
| Packaging | Bulk | Shrouding | No |
| Body Color | 自然 | Cable Exit | 180° |
| Wire Gauge | 18-24 AWG | Row Spacing | 0.156in. |
| Termination | Crimp | Contact Type | Female Socket |
| 2nd Connector | Without | Housing Color | White |
| Mounting Type | Straight | Angle of Throw | Straight |
| Connector Type | Crimp | Mounting Style | Free Hanging |
| Number of Rows | 1 | Shell Material | 标准 |
| Connector Usage | Receptacle | Height (Inches) | 6.35 |
| Housing Material | Nylon | Length - Overall | 7.82 mm |
| Mounting Feature | Without | Package Quantity | 500 |
| Panel Mount Type | Without | Primary Material | WiretoBoard |
| Wire Termination | Crimp | Pin Hole Diameter | 0.156" |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Mating Orientation | Without | Number of Contacts | 2 |
| Termination Finish | 不带 | Contact Termination | Crimp |
| Insulation Diameter | Standard | Number of Positions | 2 |
| Compatible Shell Size | SL .156 端子 | Mounting Hole Diameter | 不带 |
| Contact Layout, Typical | 3.96 [0.156] | Static Discharge Shielding | 不带 |
Product Info
| Note | Recommended contact: Part No. 640252-1,-2 and Part No. 770476-1,-2. | Type | Housing |
| Gender | RCP | Series | SL-156 |
| Sealable | 否 | Manufacturer | AMP |
| Product Type | SL-156 Housings | Application Specifics | Wire-to-Board |
Environmental
| Operating Temperature | -55C to 105C | ||
Documents & Media
Similar Parts

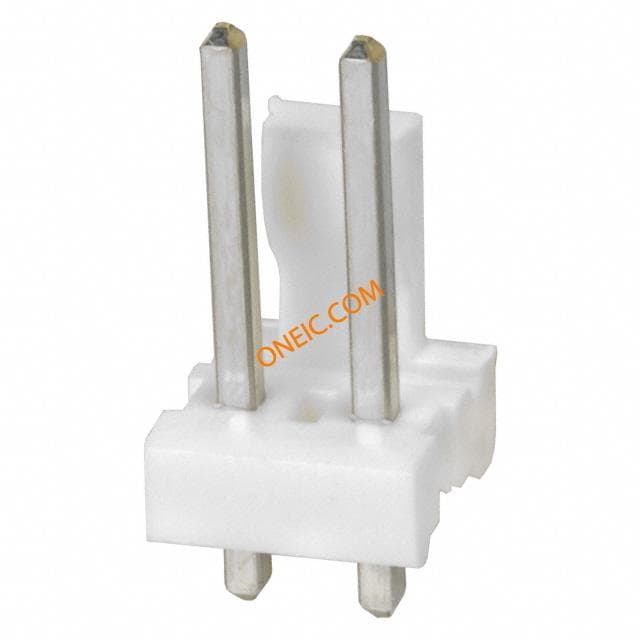

644752-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 2POS .156 TIN Headers & Wire Housings HEADER ASSY 2 POS Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 2POS, 3.96MM MTA-156HEADER-TIN,02PMTA156HDRASSYSQSTRF/L 02P MTA156 HDR ASSY SQ STR F/L
640445-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 2POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR STR 2P Square post tin Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.156", 2WAY Connector,MTA-156;Male;2;CopperAlloy;7;600;0.156in.;Polyester;White Connector: wire-board; Series: MTA-156; 3.96mm; male; socket; PIN:2 Pin header straight 2P, 640445-2, TE Connectivity TE Connectivity MTA-156 系列 3.96mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 02P MTA156 HDR ASSY FL/STR SN

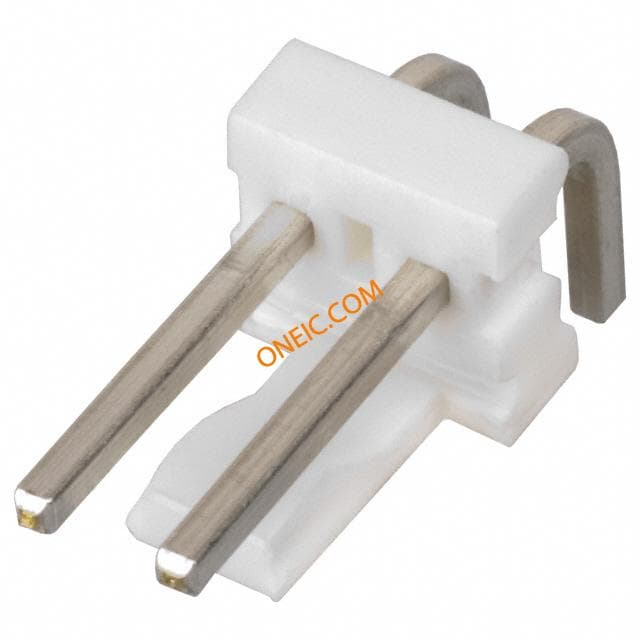

640387-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 2POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 2 Way 1 Row Right Angle PCB Header, Solder Termination, 7A Headers & Wire Housings POLARIZED HDR RA 2P Square post tin Conn Wire to Board HDR 2 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 2POS, 3.96MM MTA-156HEADER-TIN,02PMTA156HDRASSYSQR/A TE Connectivity MTA-156 系列 3.96mm节距 2路 (1排) 直角 PCB 针座, 焊接端接, 7A , 通孔 02P MTA156 HDR ASSY SQ R/A
641208-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 2POS .156 30 GOLD Headers & Wire Housings FRCTN LK HDR STR 2P Square post gold 02P MTA156 HDR ASSY FL ST 30AU
3-641208-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 2POS .156 30 GOLD TE Connectivity MTA-156 Series 3.96mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR STR 2P Square post gold Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole Product Highlights:2 PositionsWith ContactsHousing Gender = Header - PinContact Gender = PinMTA-156 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONN, PCB HEADER 2 PINS MTA-156HEADERGOLD,02PMTA156HDRASSYFLSTLF TE Connectivity MTA-156 系列 3.96mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 02P MTA156 HDR ASSY FL ST LF

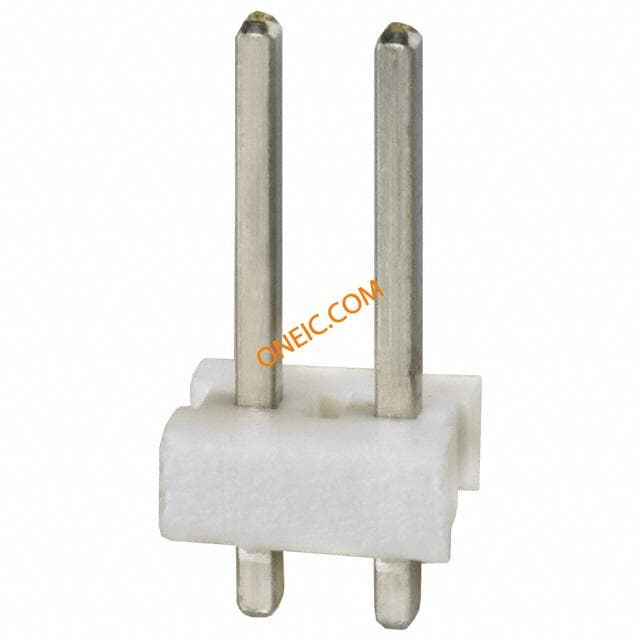

640383-2
te connectivity / amp
Conn Unshrouded Header HDR 2 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 2POS .156 TIN Headers & Wire Housings FLAT HEADER STRT 2P Square post tin Conn Unshrouded Header HDR 2 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Connector,MTA-156;Male;2;CopperAlloy;7;600;0.156in.;Polyester;White 02P MTA156 HDR ASSY STR SQ SN

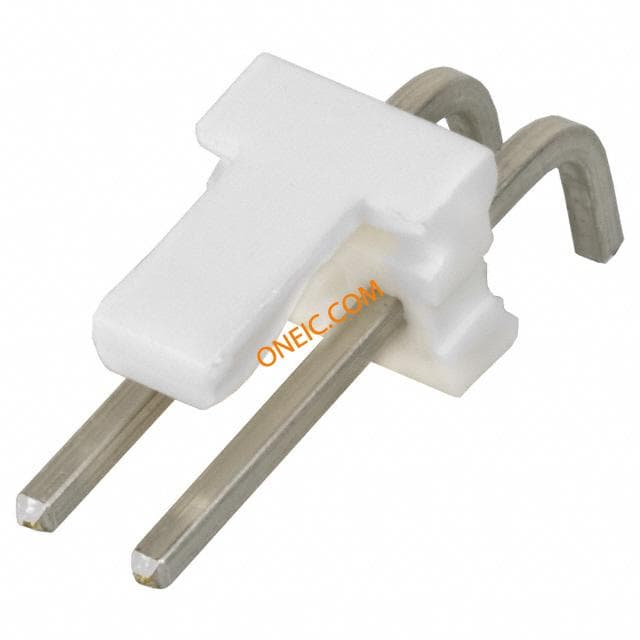

640389-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 2POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 2 Way 1 Row Right Angle PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR RA 2P Square post tin Conn Wire to Board HDR 2 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, RIGHT ANGLE, 0.156", 2WAY Connector,MTA-156;Male;2;CopperAlloy;7;600;0.156in.;Polyester;White Pin strip 90° 2P, 640389-2, TE Connectivity TE Connectivity MTA-156 系列 3.96mm节距 2路 (1排) 直角 PCB 针座, 焊接端接, 7A , 通孔 02P MTA156 HDR ASSY SQ R/A F/L

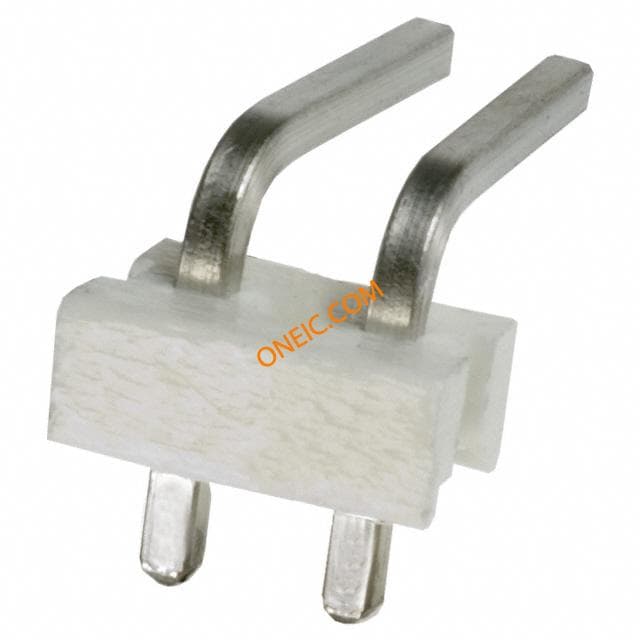

640385-2
te connectivity / amp
Conn Unshrouded Header HDR 2 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 2POS .156 TIN Headers & Wire Housings FLAT 2P RA HEADER Square post tin Conn Unshrouded Header HDR 2 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONN, HEADER, 2WAY, 0.156IN 2WR/AHEADER 02P MTA156 HDR ASSY SQ R/A
644749-2
te connectivity / amp
Conn Unshrouded Header HDR 2 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 2POS VERT .156 TIN Headers & Wire Housings 02P MTA156 HDR ASSY STR SQ SN 02P MTA156 HDR ASSY STR SQ SN 02P MTA156 HDR ASSY STR SQ SN Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

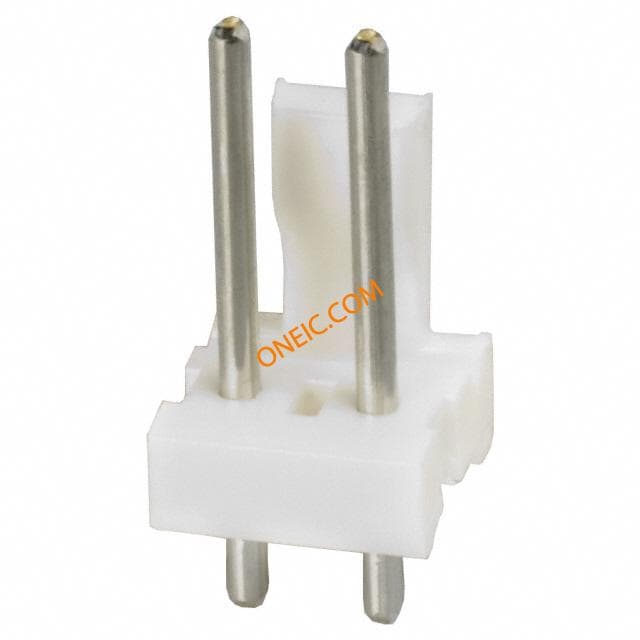

640388-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 2POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings FRCTN LK HDR STR 2P Round post tin Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR HEADER 2POS, 3.96MM HEADERASSEMBLY,MTA-156,2POSITION,STRAIGHT,FRICTIONLOCK TE Connectivity MTA-156 系列 3.96mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 02P MTA156 HDR ASSY RN STR F/L
644753-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 2POS .156 TIN TE Connectivity MTA-156 Series 3.96mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 7A Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP MTA-156VerticalRoundPinHeader,2way TE Connectivity MTA-156 系列 3.96mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 02P MTA156 HDR ASSY RN STR F/L
641121-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 2POS R/A .156 GOLD Headers & Wire Housings 02P MTA156 HDR ASSY FL/RA 15AU 02P MTA156 HDR ASSY FL/RA 15AU 02P MTA156 HDR ASSY FL/RA 15AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
644633-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 2POS R/A .156 GOLD Headers & Wire Housings 02P MTA156 HDR ASSY R/A 30AU Conn Wire to Board HDR 2 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
644613-2
TE Connectivity / AMP
Headers & Wire Housings RA SQ HDR ASSY 2P 2000 MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 2POS R/A .156 TIN
644617-2
TE Connectivity / AMP
Headers & Wire Housings 02P MTA156 HDR ASY MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 2POS R/A .156 TIN

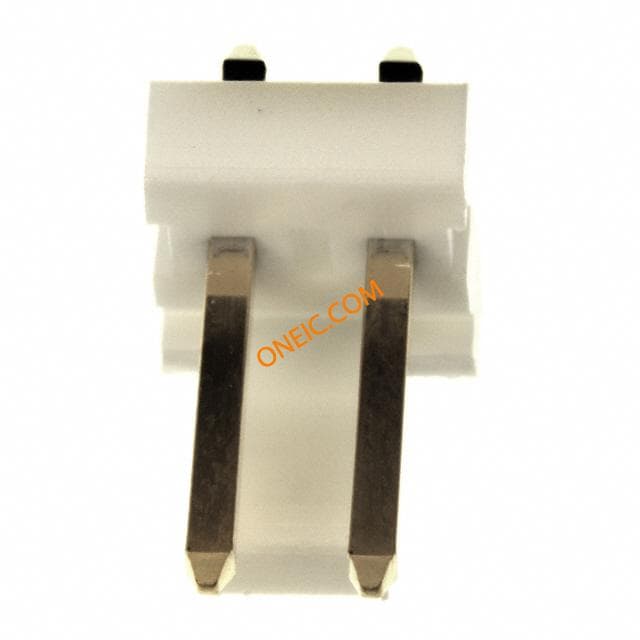

641119-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 2POS VERT .156 GOLD Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 02P MTA156 HDR ASSY FL/ST 15AU
644751-2
te connectivity / amp
Conn Unshrouded Header HDR 2 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RTANG 2POS .156 TIN Headers & Wire Housings 2P HDR ASSY R/A Conn Unshrouded Header HDR 2 POS 3.96mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 02P MTA156 HDR ASSY R/A
641210-2
te connectivity / amp
Conn Wire to Board HDR 2 POS 3.96mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A .156 2POS 30AU Headers & Wire Housings FRCTN LK HDR RA 2P Square post gold Conn Wire to Board HDR 2 POS 3.96mm Solder RA Thru-Hole Product Highlights:MTA-156 ConnectorsNumber of Positions = 2Mating Type = HeaderWire-to-Board Application3.96 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 02P MTA156 HRD FL RA FB 30AU

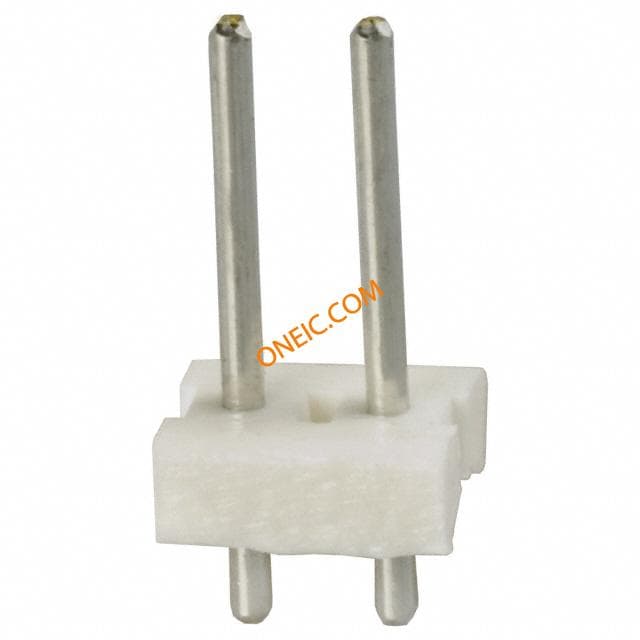

640384-2
