2-111196-4
| Manufacturer | |
| Description | Conn IDC Connector RCP 100 POS 1.27mm IDT RA Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 100PS .050X.100" IDC Connector IDC 100 way socket System 50 Headers & Wire Housings 100 POS RECEPT IDC DUAL ROW Conn IDC Connector RCP 100 POS 1.27mm IDT RA Cable Mount Product Highlights:Receptacle AssemblyNumber of Positions = 100Number of Rows = DualWith Mating Connector LockWire/Cable Type = Ribbon CableSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU WIRE-BOARD CONNECTOR RECEPTACLE 100POS 1.27MM Connectors,ribboncablereceptacle,doublerow,100position TE Connectivity AMP-LATCH System 50 系列 2行 100路 1.27mm节距 直角 母 IDC 连接器 , 电缆安装 100 RCPT SYSTEM 50, LEAD FREE |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | Trays |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
Electrical
| Range deg/s | :TE - AMPMODU System 50 Series | Voltage Rating | 30 V ac |
| Switch Function | Latch | Contact Resistance | 30 mohm |
| Current Rating (Max) | 0.5A | Insulation Resistance | 5000 MOhms |
| Voltage - Supply (Min) | 30VAC | ||
Mechanical
| Color | Black | Depth | 6.45 mm |
| Pitch | 1.27 mm | Height | 14.73 mm |
| Weight | 0.005 | Packaging | Bulk |
| Wire Type | Ribbon Cable | Wire Gauge | 30-32 AWG |
| Row Spacing | 0.100" (2.54mm) | Termination | IDT |
| Contact Type | Female Socket | Housing Color | Black |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Fastening Type | Latch Lock |
| Mounting Style | Wire | Number of Rows | 2 |
| Contact Material | Phosphor Bronze | Housing Material | Liquid Crystal Polymer |
| Length - Overall | 70.1 mm | Cable Termination | IDC |
| Termination Style | IDC | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 100 | Contact Termination | :IDC / IDT |
| Number of Positions | 100 | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | IDC Connector | Gender | RCP |
| Series | AMP | Features | Feed Through |
| Product Type | Receptacles / Sockets - Housings | ||
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts
215716-1
te connectivity / amp
Conn D-Subminiature SKT 15 POS Crimp ST Cable Mount 15 Terminal 1 Port D-Sub Standard Connectors 15P HDP20 REC ASSY Standard Cable Connectors CONN RCPT 15POS CRIMP SNAP METAL Conn D-Subminiature SKT 15 POS Crimp ST Cable Mount 15 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 15ReceptacleWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub SOCKET, DSUB, DA 15WAY
6-104549-0
te connectivity / amp

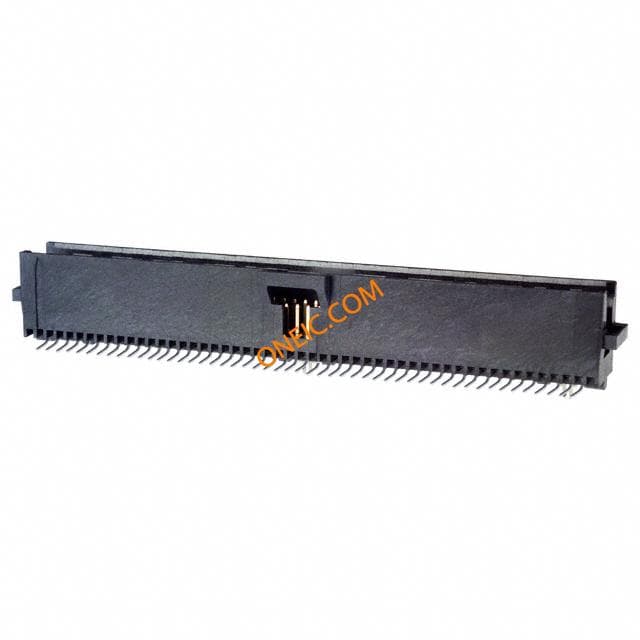

Conn Shrouded Header HDR 100 POS 1.27mm Solder ST SMD Tube .050 X .100 AMPMODU System 50 CONN HEADER 100PS .050" STR GOLD Header vertical 100way AmpModu system 50 Headers & Wire Housings 100 POS SMT HDR VERT DUAL ROW Conn Shrouded Header HDR 100 POS 1.27mm Solder ST SMD Tube Product Highlights:Header AssemblyNumber of Positions = 100Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU SHROUDED HEADER HEADERASSEMBLY,AMPMODU,SYSTEM50,100POSITION,DUALROW,SHROUDED,VERTICAL TE Connectivity AMPMODU System 50 系列 2.54mm节距 100路 (2排) 直 PCB 针座, 焊接端接 , 表面安装 100 SYS50 S/M HDR DRST SHRDSN
1-104069-7
te connectivity / amp
Conn Shrouded Header HDR 100 POS 1.27mm Solder RA Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER RTANG .050 100POS AU Headers & Wire Housings 100 SYS 50 DRRA SHRD 210 Conn Shrouded Header HDR 100 POS 1.27mm Solder RA Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 100Number of Rows = DualShroudedRight Angle Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 100 SYSTEM 50 HDR DRRA SHRD
1-104549-0
te connectivity / amp
Conn Shrouded Header HDR 100 POS 1.27mm Solder ST SMD Tube Headers & Wire Housings SYS50 SMT HDR 100P SHROUDED .050 X .100 AMPMODU System 50 CONN HEADER VERT .050 100POS AU Conn Shrouded Header HDR 100 POS 1.27mm Solder ST SMD Tube Product Highlights:Header AssemblyNumber of Positions = 100Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 100 SYS50 SRFMNT HDR DRST SHRD
6-104068-7
te connectivity / amp

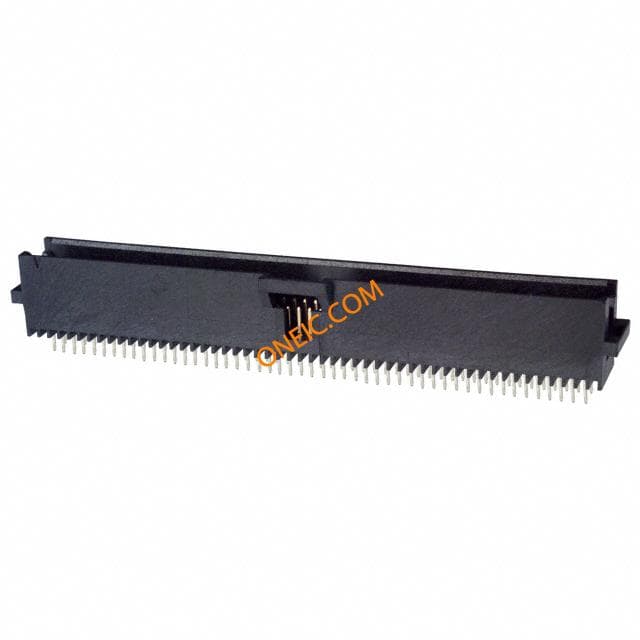

Conn Shrouded Header HDR 100 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN HEADER VRT .050 100POS 30AU Headers & Wire Housings 100 POS HDR VERT DUAL ROW Conn Shrouded Header HDR 100 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Header AssemblyNumber of Positions = 100Number of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU TE Connectivity AMPMODU System 50 系列 1.27mm节距 100路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 100 SYSTEM 50 HDR DRST SHRD
