6-103635-1
| Manufacturer | |
| Description | Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 12POS 15AU Headers & Wire Housings LATCHING HDR SHRD 12 with hold down Conn Shrouded Header HDR 12 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 12Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 12 MTE HDR SRRA LTCH.100CL LF |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Rail / Tube | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | CSA LR7189, UL E28476 |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Switch Function | Latched | Contact Resistance | 15 mohm |
| Connector Impedance | 刺破式压接 (IDC), 压接 | Current Rating (Max) | 3 A |
| Insulation Resistance | 5000 MOhms | Voltage - Protection Rating (VPR) | 600 V |
Mechanical
| Color | Black | Depth | 13.59 mm |
| Pitch | 2.54 mm | Height | 6.98 mm |
| Length | 33.02 mm [ 1.3 in ] | Packaging | Tube |
| Body Color | 黑色 | Lead Style | 直角 |
| Row Spacing | 2.54 mm | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Black |
| Mounting Type | Through Hole, Right Angle | Connector Type | Header, Shrouded |
| Contact Finish | Gold Over Nickel | Contact Timing | Without |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Plating - Body | Tin | Insert Material | 黄铜 |
| Contact Material | Brass | Housing Material | Thermoplastic |
| Length - Overall | 33.02 mm | Package Quantity | 16 |
| Panel Mount Type | 不带 | Termination Style | Through Hole |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 12 |
| Termination Finish | 带有 | Number of Positions | 12 |
| Compatible Shell Size | 母端护套组件 | Contact Length - Post | 3.3 mm [ .13 in ] |
| Mounting Hole Diameter | 带有 | Contact Finish - Mating | 锡 |
| Contact Length - Mating | 0.230" (5.84mm) | Surface Mount Land Size | Without |
| Termination Post Length | 5.84 mm [ .23 in ] | Contact Finish Thickness | 15µin (0.38µm) |
| Static Discharge Shielding | 不带 | ||
Product Info
| Note | 使用 91417-1 号键控工具来拆卸用于键控的柱体。 | Type | Shrouded Header |
| Gender | HDR | Series | AMPMODU MTE |
| Product Type | Headers | Number of Positions Loaded | All |
Environmental
| Operating Temperature | - 65 C to + 105 C | ||
Documents & Media
Similar Parts
1-103961-1
te connectivity / amp
Conn IDC Connector RCP 12 POS 2.54mm IDT ST Cable Mount Strip Headers & Wire Housings OBSOLETE CONN RCPT 12POS .100 26-30 30AU
1-103648-1
te connectivity / amp
Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN RECEPT 12POS .100 UNLOADED .100 IDC AMPMODU Housings & Contacts .100 IDC AMPMODU Housings & Contacts Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 12Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 12 MTE RCPT HSG SR RIB .100CL
1-103959-1
te connectivity / amp
Conn IDC Connector RCP 12 POS 2.54mm IDT ST Cable Mount Strip CONN RECEPT 12POS .100 26-30 TIN
3-88179-4
te connectivity / amp
Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors 012 HOUSING FFC RCPT DR 100CL FFC & FPC Connectors 012P RCPT DR 100CL Flexible Film Connectors Product Highlights:Housing2.54 mm CenterlineConnector Type = StandardNumber of Positions = 12Number of Rows = DualSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector
88859-4
te connectivity / amp
Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors 012 HOUSING FFC RCPT SR 100CL FFC & FPC Connectors 012P RCPT SR .100CL Flexible Film Connectors Product Highlights:Housing2.54 mm CenterlineConnector Type = StandardNumber of Positions = 12Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector
6-103958-1
te connectivity / amp
Conn IDC Connector RCP 12 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 12POS .100 POLAR 30AU Conn IDC Connector RCP 12 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 12Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 2X12 MTE RCPT SR LATCH .100CL
1-103956-1
te connectivity / amp
Conn IDC Connector RCP 12 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 12POS .100 POLAR TIN Headers & Wire Housings RECEPTACLE ASSY 12P 378 AMPMODU 12 Position Single Row 2.54 mm Pitch Crimp Preloaded Socket Housing 2X12 MTE RCPT SR LATCH .100CL
1-487769-0
te connectivity / amp
Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors 012 HOUSING FFC RCPT 100CL SR FFC & FPC Connectors 100X100 REC 1X12P DET Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = SlimlineNumber of Positions = 12Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector
6-103956-1
te connectivity / amp
Conn IDC Connector RCP 12 POS 2.54mm IDT ST Cable Mount Strip Headers & Wire Housings 2X12 RCPT SR LATCH .100CL .100 AMPMODU Headers, Housings & Contacts CONN RECPT 12POS .100 POLAR TIN Conn IDC Connector RCP 12 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 12Housing Type = ReceptacleContact Type = ReceptacleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE AMPMODU 12 Position 2.54 mm Pitch 26-22 AWG Loaded IDC Socket Housing 2X12 MTE RCPT SR LATCH .100CL

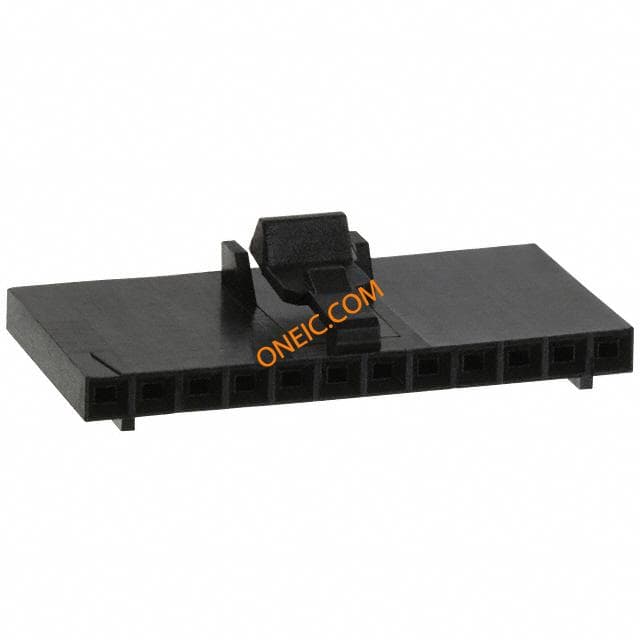

1-104257-1
