1-487526-1
| Manufacturer | |
| Description | Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors CONN RCPT 12POS.100 SLIM W/LATCH Board to Board & Mezzanine Connectors FFC HSG RCPT 12P Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = SlimlineNumber of Positions = 12Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector 012 HOUSING FFC RCPT 100CL SR |
| Category |
Business
| Other Names | 14875261 | Product Category | Board to Board & Mezzanine Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 500 |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | Yes |
Electrical
| Voltage Rating | 300V | Voltage - Supply | 300 VAC |
| Resistance - Input | 5000 | Voltage - Clamping | 720 |
| Connector Impedance | 锁闩, 锁闩 | Current Rating (Max) | 2A |
| Voltage - Supply (Min) | 300VAC | ||
Mechanical
| Color | Black | Depth | 13.71 mm |
| Pitch | 2.54 mm | Lock Type | 带有 |
| Packaging | Bulk | Body Color | 黑色 |
| Cable Type | FFC | 2nd Connector | With |
| Mounting Type | Straight | Connector Type | Slimline |
| Number of Rows | 1 | Connector Usage | Receptacle |
| Locking Feature | Latch | Housing Material | Thermoplastic |
| Length - Overall | 2.54 [0.100] | Mounting Feature | Without |
| Package Quantity | 500 | Panel Mount Type | Without |
| Termination Style | 插座 | FFC, FCB Thickness | 0.05-0.13mm |
| Mating Orientation | Without | Number of Contacts | 12 |
| Number of Positions | 12 | Mounting Hole Diameter | 带有 |
Product Info
| Type | Housing | Gender | RCP |
| Series | 148 | Features | Latch Lock |
| Product Type | Housing | Connection Type | FFC Cable |
Environmental
| Operating Temperature | -65°C ~ 105°C | ||
Similar Parts
1-1375583-1
te connectivity / amp
Conn Shrouded Header HDR 12 POS 2.54mm Solder ST SMD T/R .100 AMPMODU Headers, Housings & Contacts CONN HEADER 12POS IDC SMD 30GOLD

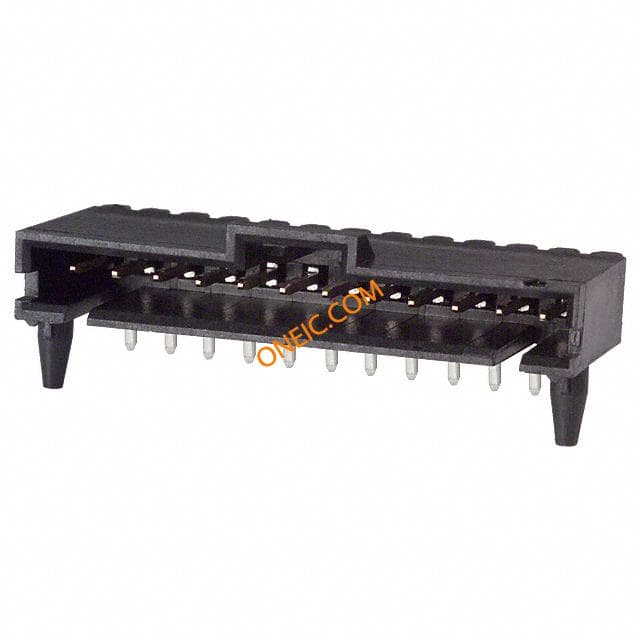

1-104361-1
