88859-4
| Manufacturer | |
| Description | Conn Housing RCP 12 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors 012 HOUSING FFC RCPT SR 100CL FFC & FPC Connectors 012P RCPT SR .100CL Flexible Film Connectors Product Highlights:Housing2.54 mm CenterlineConnector Type = StandardNumber of Positions = 12Number of Rows = SingleSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector |
| Category |
Business
| Standard Pack | 1 | Product Category | FFC & FPC Connectors |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | Yes |
Electrical
| Voltage Rating | 300V | Voltage - Supply | 300 VAC |
| Resistance - Input | 5000 | Voltage - Clamping | 720 |
| Connector Impedance | 制动器 | Current Rating (Max) | 2A |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Lock Type | 带有 | Packaging | Bulk |
| Body Color | 黑色 | Cable Type | FFC |
| 2nd Connector | With | Mounting Type | Straight |
| Connector Type | Standard | Number of Rows | 1 |
| Connector Usage | Receptacle | Locking Feature | Detent |
| Housing Material | Thermoplastic | Mounting Feature | Without |
| Package Quantity | 1 | Panel Mount Type | Without |
| Termination Style | 插座 | FFC, FCB Thickness | 0.05-0.13mm |
| Mating Orientation | With | Number of Contacts | 12 |
| Number of Positions | 12 | Mounting Hole Diameter | 带有 |
| Center Contact Material | 2.54 [0.100] | ||
Product Info
| Note | Use Extraction Tool No. 91092-1 for round wire contacts. | Type | Housing |
| Gender | RCP | Features | Detent Lock |
| Product Type | Housing | Connection Type | FFC Cable |
Environmental
| Operating Temperature | -65°C ~ 105°C | ||
Documents & Media
Similar Parts
1-1375583-1
te connectivity / amp
Conn Shrouded Header HDR 12 POS 2.54mm Solder ST SMD T/R .100 AMPMODU Headers, Housings & Contacts CONN HEADER 12POS IDC SMD 30GOLD

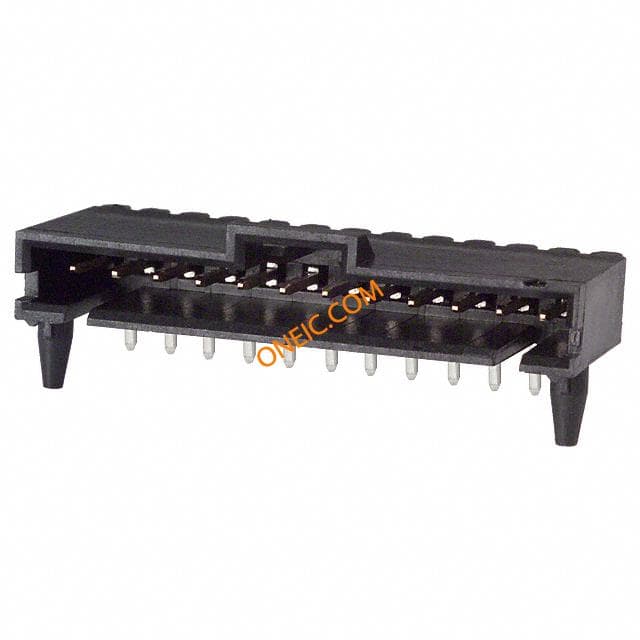

1-104361-1
