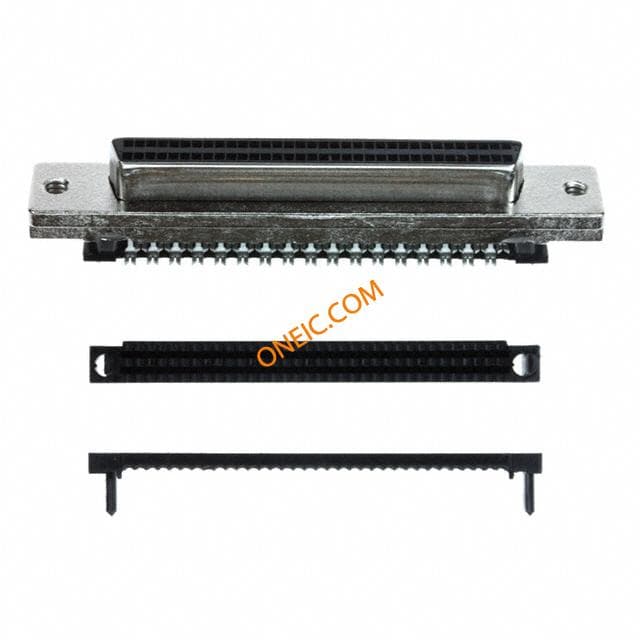

5786090-7
| Manufacturer | |
| Description | Conn SCSI PL 68 POS 1.27mm IDT RA Cable Mount 68 Terminal 1 Port Tube D-Sub Standard Connectors 68 POS A/P PLUG .050 Series Cable Connectors (SCSI) CONN PLUG 68POS RIBBON .050 GOLD Conn,D-Ribbon,CablePlug,68Pos,STR,IIIS Conn SCSI PL 68 POS 1.27mm IDT RA Cable Mount 68 Terminal 1 Port Tube Product Highlights:ConnectorPlugNumber of Positions = 68Wire/Cable Type = Ribbon CableRibbon Cable Centerline Spacing = .64 mmSearch Keywords:AMPLIMITE, Subminiature D, high density, wire to board, board to board, cable to board, cable to cable, box to box, cabled connectors, d-sub, d sub, dsub CONNECTOR, SCSI, PLUG IDC/IDT, 68WAY Conn;D-Ribbon;CablePlug;68Pos;STR;IIISeries;IDC-Ribbon;30AWG AMPLIMITE .050 Series 68 Position Plug .050 IDC Ribbon Connector 68 POS A/P PLUG,25 CL |
| Category |
Business
| Product Category | D-Sub Standard Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 680 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366910 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 30 VAC | Current Rating (Max) | 1 A |
| Voltage - Supply (Min) | 30VAC | ||
Mechanical
| Color | Black | Depth | 10.75 mm |
| Pitch | 1.27 mm | Height | 20.35 mm |
| Weight | 0.009 | Packaging | Tube |
| Cable Type | Ribbon Cable | Shield Type | No |
| Termination | IDT | Contact Type | Signal |
| 2nd Connector | Without | Mounting Type | Cable Mount |
| Connector Type | IDC | Contact Finish | Gold |
| Mounting Rails | Without | Mounting Style | Through Hole |
| Number of Rows | 2 | Shell Material | Nickel |
| Connector Style | D-Type | Contact Material | Phosphor Bronze |
| Cord Termination | Black | Housing Material | PBT - GF 30 |
| Length - Overall | 51.5 mm | Package Quantity | Tube |
| Panel Mount Type | Without | Termination Style | Solder |
| Number of Contacts | 68 | Contact Termination | :IDC / IDT |
| Number of Positions | 68 | Row Spacing - Mating | 0.64 [0.025] |
| Contact Finish Thickness | 30µin (0.76µm) | Wire Gauge or Range - mm2 | 0.05² [30] |
| 1st Connector Mounting Type | :Cable | Shell Size, Connector Layout | 0.050 Pitch x 0.100 Row to Row |
Product Info
| Type | SCSI | Detent | Without |
| Gender | PL | Series | Series III |
| Features | Feed Through | Product Type | Connector |
| Connection Type | Wire | Number of Ports | 1 Port |
Environmental
| Operating Temperature | - 55 C to + 105 C | Operating Temperature - Junction | 105C |
Documents & Media
