5749721-7
| Manufacturer | |
| Description | Conn SCSI RCP 68 POS 2.54mm Solder ST Thru-Hole 68 Terminal 1 Port D-Sub Standard Connectors 050 068R VRT PCB .050 Series Board Mount Connectors CONN RECEPT 68POS VERT .050 GOLD Conn SCSI RCP 68 POS 2.54mm Solder ST Thru-Hole 68 Terminal 1 Port Product Highlights:ConnectorConnector Type = ReceptacleNumber of Positions = 68PCB Mount Angle = VerticalThrough Hole Contact Termination TypeSearch Keywords:SCSI-2, SCSI-3, EIA RS-232, ISO-11569, HIPPI, High Performance Parallel Interface, IPI-2, IEE 802.3 MII, high density, VME, Versa Module Europe, AMPLIMITE, Subminiature D, box to box, vertical boardmount, right angle posted, straight posted, d-sub, d sub, dsub WIRE-BOARD CONNECTOR, RCPT 68POS 1.27MM Conn;D-Sub;PCBSocket;68Pos;STR;IIISeries;Solder TE Connectivity Amplimite .050 III 系列 1.27mm 节距 68 路 直向 D-Sub 连接器, 焊接 端接 68 50SR VERT RCPT ASSY |
| Category |
Business
| Product Category | D-Sub Standard Connectors | Standard Package | Rail / Tube |
| Factory Pack Quantity | 8 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366910 |
| Leadfree Defin | Reflow solder capable to 245°C, Reflow solder capable to 260°C | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE CONNECTIVITY - Amplimite 0.050 Series | Voltage Rating | 30V |
| Switch Function | Without | Current Rating (Max) | 1A |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Weight | 0.009 | Packaging | Tube |
| Shield Type | Yes | Termination | Solder |
| Contact Type | Signal | 2nd Connector | With |
| Mounting Type | Through Hole | Shell Plating | Tin over Copper |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Housing/Shell (2-56); Latchblocks | Mounting Rails | Without |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Shell Material | Steel | Connector Style | D-Type |
| Locking Feature | Latch Blocks | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic | Termination Style | Solder |
| Number of Contacts | 68 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 68 | Shell Size - Insert | Full Metal |
| Shell Material, Finish | Steel, Nickel Plated | Termination Post Length | 3.18 [0.125] |
| Contact Finish Thickness | Flash | 1st Connector Mounting Type | :PCB |
| Shell Size, Connector Layout | 0.050 Pitch x 0.100 Row to Row | ||
Product Info
| Type | SCSI | Gender | RCP |
| Series | Series III | Features | Shielded |
| Manufacturer | AMP | Product Type | Connector |
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
Documents & Media
Similar Parts

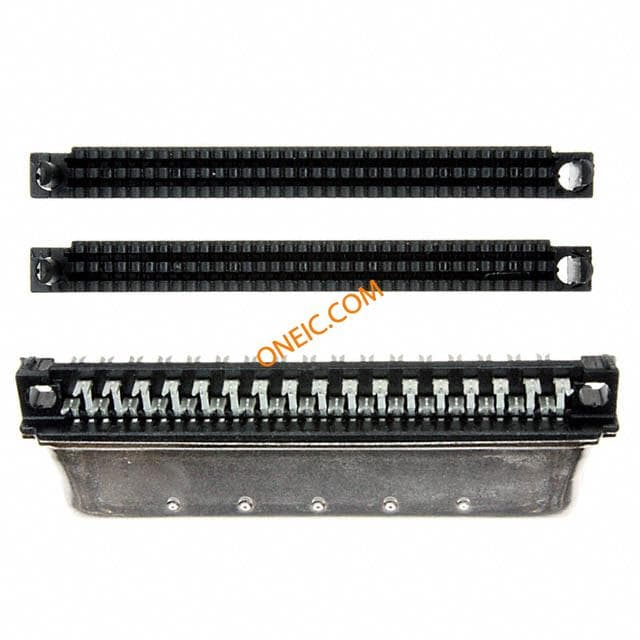

5749111-6
te connectivity / amp
Conn SCSI PL 68 POS 1.27mm IDT RA Cable Mount 68 Terminal 1 Port .050 Series Cable Connectors (SCSI) CONN PLUG 68POS .050SR W/COVER TE Connectivity III Series, Male 68 Way Straight Cable Mount SCSI Connector 1.27mm Pitch, IDC, Latch Block I/O Connectors 68 CABLE PLUG ASSY Conn SCSI PL 68 POS 1.27mm IDT RA Cable Mount 68 Terminal 1 Port Product Highlights:ConnectorPlugNumber of Positions = 68Wire/Cable Type = Round Jacketed CableWire Range = 0.05-0.09² [30-28] mm [AWG]Search Keywords:AMPLIMITE, Subminiature D, high density, wire to board, board to board, cable to board, cable to cable, box to box, cabled connectors, d-sub, d sub, dsub CONNECTOR, PLUG, IDC, 68WAY Conn;D-Sub;CablePlug;68Pos;STR;IIISeries;IDC;30-28AWG TE Connectivity III 系列 68 路 1.27mm节距 直 电缆安装 公 SCSI 连接器, IDC, 闭锁块 68 50SR CABLE PLUG ASSY
5749621-7
te connectivity / amp
Conn SCSI PL 68 POS 1.27mm IDT RA Cable Mount 68 Terminal 1 Port D-Sub Standard Connectors 68 POS CABLE PLUG CONN/COVER KIT .050 Series Cable Connectors (SCSI) CONN PLUG 68POS .050 IDC W/COV TE Connectivity Male 68 Way Right Angle Cable Mount SCSI Connector 1.27mm Pitch, IDT Conn SCSI PL 68 POS 1.27mm IDT RA Cable Mount 68 Terminal 1 Port Product Highlights:ConnectorPlugNumber of Positions = 68Wire/Cable Type = Round Jacketed CableWire Range = 0.05-0.09² [30-28] mm [AWG]Search Keywords:AMPLIMITE, Subminiature D, high density, wire to board, board to board, cable to board, cable to cable, box to box, cabled connectors, d-sub, d sub, dsub PLUG, IDC, SCSI2, 68WAY Conn;D-Sub;CablePlug;68Pos;STR;IIISeries;IDC;30-28AWG Male Cable Connector SCSI 2 68, 5749621-7, TE Connectivity TE Connectivity 68 路 1.27mm节距 直角 电缆安装 公 SCSI 连接器, IDT 68 50S CABLE PLUG CONN/COV KIT

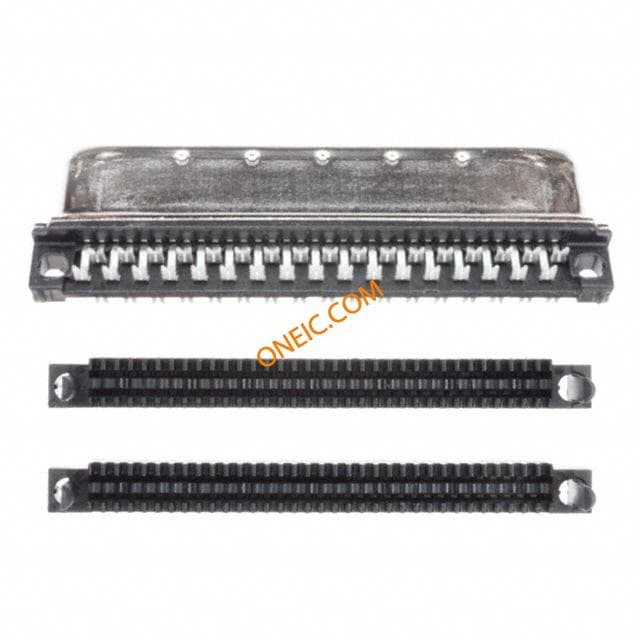

5750913-7
