点击放大查看
5650963-4
| Manufacturer | |
| Description | Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 96POS VERT PCB Eurocard C Recptacle assembly 32+32+32P DIN 41612 Connectors C REC VRT ABCX32C L2 BDLK Conn DIN 41612 RCP 96 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 96Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 CONNECTOR, RECEPTACLE, 96POS ASSY,RECEPTACLE,EUROCARD,TYPEC,L-FREE,9 96 Position 3 Row 2.54 mm Vertical Eurocard Type C Cardedge Socket Connector |
| Category |
Business
| Product Category | DIN 41612 Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 150 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366930 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Mechanical
| Size | Standard | Color | Gray |
| Pitch | 2.54 mm | Weight | 0 |
| Coating | Without | Packaging | Bulk |
| Termination | Solder | Contact Size | 0.30 x 0.61 [.012 x .024] |
| Contact Type | Solder Post | Mounting Type | Through Hole |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Tin |
| Number of Rows | 3 | Contact Material | Copper Alloy |
| Housing Material | Polymer | Mounting Feature | With |
| Make Before Break | No | Termination Style | Solder Pin |
| Number of Contacts | 96 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 96 | Material - Insulation | Polymer Thermoplastic, Glass Filled |
| Termination Post Length | 3.30 [0.130] | ||
Product Info
| Type | DIN 41612 | Grade | II |
| Style | C | Gender | Receptacle |
| Series | 5650963 | Features | Board Lock |
| Product Type | Type C Connectors | Bus Connection | FUTUREBUS, MULTIBUS (II), NUBUS, VMEbus, VXIBus |
| Connection Type | Printed Circuit Board | Tool Type Feature | No |
| Number of Positions Loaded | All | ||
Environmental
| Temperature | No | Level, Class | 2 |
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts
5650470-5
te connectivity / amp
Conn DIN 41612 PIN 96 POS 2.54mm Solder ST Thru-Hole Eurocard Type R CONN DIN PLUG 96POS VERT PCB Plug 96 way pin DIN41612 Eurocard DIN 41612 Connectors PLUG 96P VERT TYPE R Conn DIN 41612 PIN 96 POS 2.54mm Solder ST Thru-Hole Product Highlights:PlugNumber of Positions = 96PCB Mount Angle = VerticalNo PCB Retention FeaturePost Type = Solder PostSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR, PLUG, 96WAY EUROCARDTypeRVerticalPlug,96Position,SolderPost,DINLevelII,Gray CONN DIN ASSY,PIN,EUROCARD,TYPE R,LEAD-
536010-5
te connectivity / amp
Conn DIN 41612 PL 96 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 96POS RT ANG PCB DIN 41612 Connectors EUROCARD RA PLUG 900 Conn DIN 41612 PL 96 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 96Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612
5650908-5
te connectivity / amp
Conn DIN 41612 PIN 96 POS 2.54mm Solder ST Thru-Hole Eurocard Type R CONN DIN PLUG 96POS VERT PCB 2.54mm,pin,DIN41612,solder,vert,PCB,96w DIN 41612 Connectors PLUG 96P VERT TYPE R Conn DIN 41612 PIN 96 POS 2.54mm Solder ST Thru-Hole Product Highlights:PlugNumber of Positions = 96PCB Mount Angle = VerticalNo PCB Retention FeaturePost Type = Solder PostSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 PLUG, DIN41612, STRAIGHT, R, 96WAY Plug;Eurocard;Brass;96;Polyester;Gray;PCBMount;0.130in. Type R 96 Position 2.54 mm Plug Vertical Through Hole Eurocard Connector TE Connectivity Eurocard 系列 96 路 2.54mm 节距, R型 C2等级, 3 行 a/b/c 直向 DIN 41612 插头, 焊接端接 ASSY,PIN,EUROCARD,TYPE R,LEAD-
5148116-5
te connectivity / amp
Conn DIN 41612 PIN 96 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN PLUG RTANG 96 POS .100 DIN DIN 41612 Connectors PLUG 96P R/A TYPE C Conn DIN 41612 PIN 96 POS 2.54mm Solder RA Thru-Hole Product Highlights:With ContactsContact Gender = PinHousing Gender = ReceptacleType = Type C2.54 mm CenterlineSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR, PLUG, 96WAY ASSY,PIN,EUROCARD,TYPE C,LEAD-FREE,96 PO
166467-1
te connectivity / amp
Conn DIN 41612 M 96 POS 2.54mm Crimp ST Cable Mount Eurocard Type C CONN PLUG 96POS EUROCARD PCB DIN 41612 Connectors 96P DIN VERT HOUSING Conn DIN 41612 M 96 POS 2.54mm Crimp ST Cable Mount Product Highlights:Type C HousingsPlugNumber of Positions = 96Terminate To WireNo PCB Retention FeatureSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR, PLUG, 96WAY CONECTOR,PLUG,EUROCARDTYPEC,96POS,TERMINATETOWIRE 96P.IEC-C MALE HSG.
5650913-5
te connectivity / amp
Conn DIN 41612 PIN 96 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 96POS RT ANG PCB DIN 41612 Connectors PLUG 96P R/A TYPE C Conn DIN 41612 PIN 96 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 96Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 PLUG, DIN41612, 96WAY Receptacle,Eurocard;Plug;Brass;96;Glass-FilledPolyester;Gray;PCBMount Type C 96 Position 2.54 mm Plug Right Angle Through Hole Eurocard Connector ASSY,PIN,EUROCARD,TYPE C,LEAD-
5536405-5
te connectivity / amp
Conn DIN 41612 PIN 96 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 96POS RT ANG PCB DIN 41612 Connectors PLUG 96P R/A TYPE C Conn DIN 41612 PIN 96 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlug96 PositionsRows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR PLUG 96POS Eurocard 96 Position 3 Row Right Angle Plug TYPE C 3.3 mm Connector ASSY,PIN,EUROCARD,TYPE C,LEAD-
650473-5
te connectivity / amp
Conn DIN 41612 PIN 96 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 96POS RT ANG PCB DIN 41612 Connectors Type C Pin Header 96 Position Conn DIN 41612 PIN 96 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 96Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 Receptacle,Eurocard;Plug;Brass;96;Polyester;Gray;PCBMount;0.104in. Type C 96 Position 2.54 mm Plug Right Angle Through Hole Eurocard Connector 096 EURO TYPE C PIN ST ASSY
536416-5
te connectivity / amp
Conn DIN 41612 PL 96 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 96POS RT ANG PCB DIN 41612 Connectors PLUG 96 POS R/A TYPE C Conn DIN 41612 PL 96 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 96Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612
650913-5
te connectivity / amp
Conn DIN 41612 PL 96 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 96POS RT ANG PCB DIN 41612 Connectors 096 EURO TYPE C PIN 900 Conn DIN 41612 PL 96 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 96Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 TYPECLCP/BDLOCK,096EUROTYPECPINBLASSY 096 EURO TYPE C PIN BL ASSY

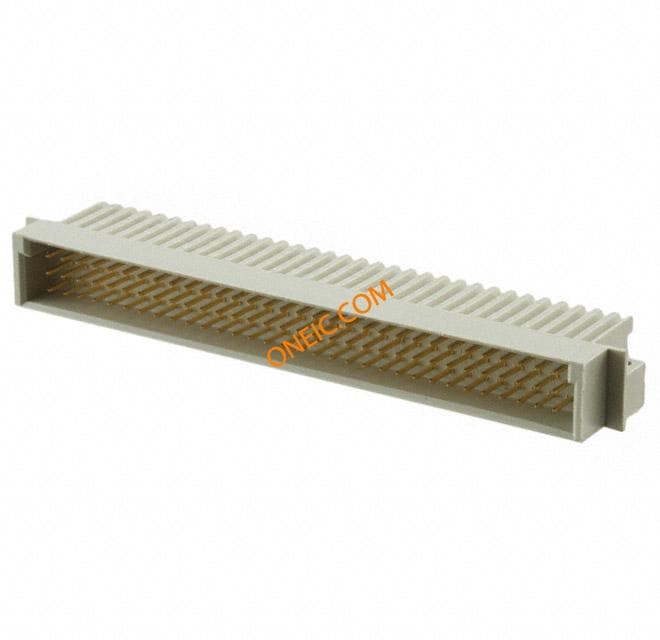

215605-4
