5650916-5
| Manufacturer | |
| Description | Conn DIN 41612 PIN 48 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 48POS RT ANG PCB DIN 41612 Connectors PLUG 48P R/A TYPE C Conn DIN 41612 PIN 48 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 48Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 48 Position 2.54 mm Plug Right Angle Through Hole Eurocard Type C Connector ASSY,PIN,EUROCARD,TYPE C/2,LEA |
| Category |
Business
| Product Category | DIN 41612 Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Interface | Eurocard/DIN 41612 | Voltage - Supply | 250 |
| Current Rating (Max) | 1.5 A | Voltage - Supply (Min) | 250VAC |
Mechanical
| Size | Half | Color | Gray |
| Depth | 17.73 mm | Pitch | 2.54 mm |
| Height | 11.1 mm | Coating | Without |
| Packaging | Bulk | Termination | Solder |
| Contact Size | 0.64 [.025] Sq. | Contact Type | Solder Post |
| Housing Color | Gray | Length - Tail | 2.65 mm |
| Mounting Type | Through Hole | Connector Type | Plug, Male Pins |
| Contact Finish | Tin | Mounting Style | Through Hole |
| Number of Rows | 3 | Terminal Style | .64 x .64 mm [ .025 x .025 in ] |
| Insert Material | 铜合金 | Contact Material | Copper Alloy |
| Housing Material | Polymer | Length - Overall | 53.34 mm |
| Mounting Feature | With | Panel Mount Type | 通孔 - 焊接 |
| Make Before Break | No | Termination Style | Solder Pin |
| Number of Contacts | 48 | Number of Positions | 48 |
| Contact Length - Post | 2.64 mm [ .104 in ] | Material - Insulation | Polymer Thermoplastic, Glass Filled |
| Mounting Hole Diameter | 带有 | Contact Finish - Mating | 锡 |
| Termination Post Length | 2.65 [0.104] | Contact Finish Thickness | 2.54 – 5.08 µm [ 100 – 200 µin ] |
Product Info
| Type | DIN 41612 | Grade | II |
| Style | 1/2 C | Gender | Plug |
| Series | 5650916 | Features | Board Lock |
| Guide Method | Without | Product Type | Type C Connectors |
| Connection Type | Printed Circuit Board | Number of Columns | 16 |
| Tool Type Feature | No | Number of Positions Loaded | All |
Environmental
| Temperature | No | Level, Class | 2 |
| Operating Temperature | -55°C ~ 125°C | Thermal Resistance of Package | 1.57 mm [ .062 in ] |
Documents & Media
Similar Parts
5535070-4
te connectivity / amp
Conn DIN 41612 RCP 48 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 48POS VERT PCB Receptacle 48way socket DIN41612Eurocard DIN 41612 Connectors RECPT 48P VERT TYPE C Conn DIN 41612 RCP 48 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 48Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR RECEPTACLE 48WAY Receptacle48waysocketDIN41612Eurocard 2.54 mm 48 Position Receptacle Through Hole Eurocard Type C Connector TE Connectivity Eurocard 系列 48 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c 直向 DIN 41612 插座, 焊接端接
535071-4
te connectivity / amp
Conn DIN 41612 RCP 48 POS 2.54mm Solder ST Thru-Hole Eurocard Type C CONN DIN RECEPT 48POS VERT PCB DIN 41612 Connectors 48P PCB EURO RECEPT Conn DIN 41612 RCP 48 POS 2.54mm Solder ST Thru-Hole Product Highlights:Type C ConnectorsReceptacleNumber of Positions = 48Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 CONNECTOR, RECEPTACLE, DIN, THT, 48WAY 2.54 mm 48 Position Receptacle Through Hole Eurocard Type C Connector
926040-2
te connectivity / amp
Conn Housing RCP 48 POS 2.54mm Crimp ST Eurocard Type C CONN DIN RECEPT 48POS VERT PCB DIN 41612 Connectors 48P MOD 4 HSG 1200 Conn Housing RCP 48 POS 2.54mm Crimp ST Product Highlights:Type C HousingsReceptacle48 PositionsTerminate To WireNo PCB Retention FeatureSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR RECEPTACLE 48WAY 48P MOD 4 HSG
535071-5
te connectivity / amp
Conn DIN 41612 F 48 POS 2.54mm Solder ST Thru-Hole Eurocard Type C 048 EURO TYPE C RECEPT ST ASSY DIN 41612 Connectors Type C Receptacle 48 Position Eurocard Type C Product Highlights:ConnectorReceptacleType = Type C48 PositionsRows Loaded = A, B, CSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612

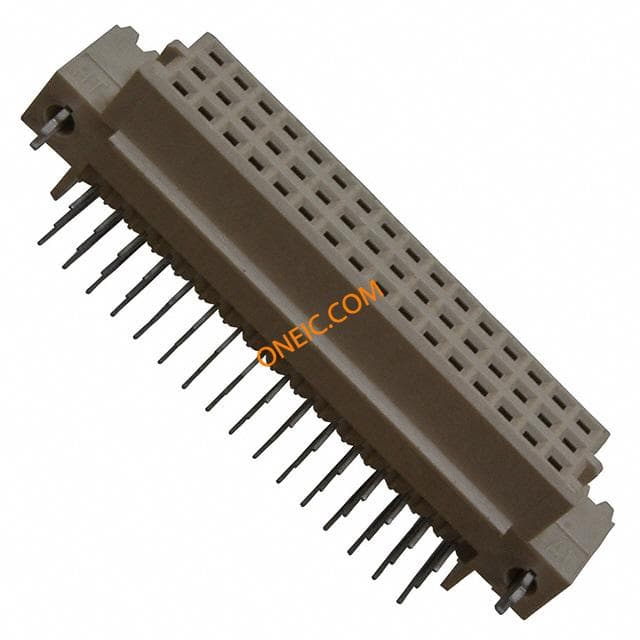

5650893-5
te connectivity / amp
Conn DIN 41612 RCP 48 POS 2.54mm Solder RA Thru-Hole Eurocard Type R CONN RECEPT RTANG 48POS .100 DIN DIN 41612 Connectors ASSY,RECEPT,EUROCARD TYPE R/2,L-FREE,48, Conn DIN 41612 RCP 48 POS 2.54mm Solder RA Thru-Hole Product Highlights:ReceptacleNumber of Positions = 48PCB Mount Angle = Right AngleYes PCB Retention FeatureBoardlock(s)Search Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR, RECEPTACLE, 48 POS 48 Position 3 Row 2.54 mm Pitch Right Angle Eurocard Type R Receptacle Connector ASSY,RECEPT,EUROCARD,TYPE R/2,L-FREE,48,

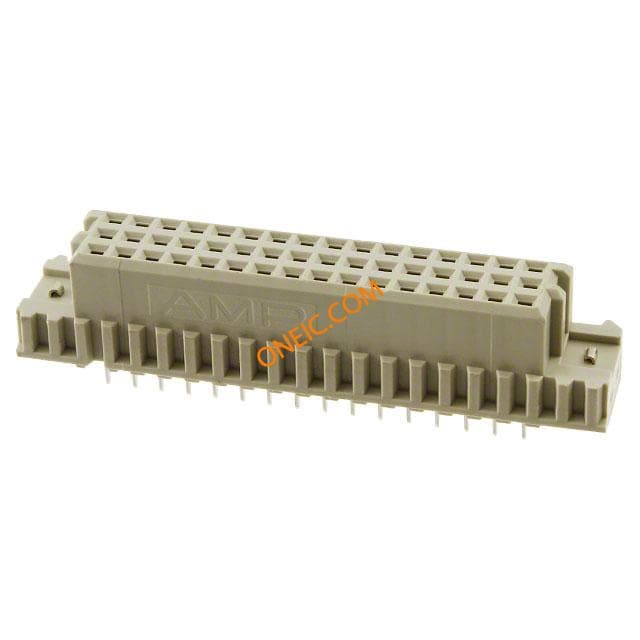

536484-5
