5650893-5
| Manufacturer | |
| Description | Conn DIN 41612 RCP 48 POS 2.54mm Solder RA Thru-Hole Eurocard Type R CONN RECEPT RTANG 48POS .100 DIN DIN 41612 Connectors ASSY,RECEPT,EUROCARD TYPE R/2,L-FREE,48, Conn DIN 41612 RCP 48 POS 2.54mm Solder RA Thru-Hole Product Highlights:ReceptacleNumber of Positions = 48PCB Mount Angle = Right AngleYes PCB Retention FeatureBoardlock(s)Search Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR, RECEPTACLE, 48 POS 48 Position 3 Row 2.54 mm Pitch Right Angle Eurocard Type R Receptacle Connector ASSY,RECEPT,EUROCARD,TYPE R/2,L-FREE,48, |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366930 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Mechanical
| Color | Gray | Pitch | 2.54 mm |
| Weight | 0 | Coating | Without |
| Packaging | Bulk | Thickness | 1.57 [0.062] |
| Termination | Solder | Contact Type | Solder Post |
| Mounting Type | Through Hole | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Tin | Number of Rows | 3 |
| Contact Material | Copper Alloy | Housing Material | Polymer |
| Make Before Break | No | Termination Style | Solder Pin |
| Mating Orientation | Without | Number of Contacts | 48 |
| Contact Termination | :Through Hole Right Angle | Number of Positions | 48 |
| Material - Insulation | Polymer Thermoplastic, Glass Filled | Termination Post Length | 2.79 [0.110] |
Product Info
| Type | DIN 41612 | Grade | II |
| Style | 1/2 R | Gender | :Receptacle |
| Series | Eurocard | Features | Board Lock |
| Guide Method | Without | Product Type | Receptacle |
| Number of Positions Loaded | All | ||
Environmental
| Level, Class | 2 | Operating Temperature | -55°C ~ 125°C |
Documents & Media
Similar Parts

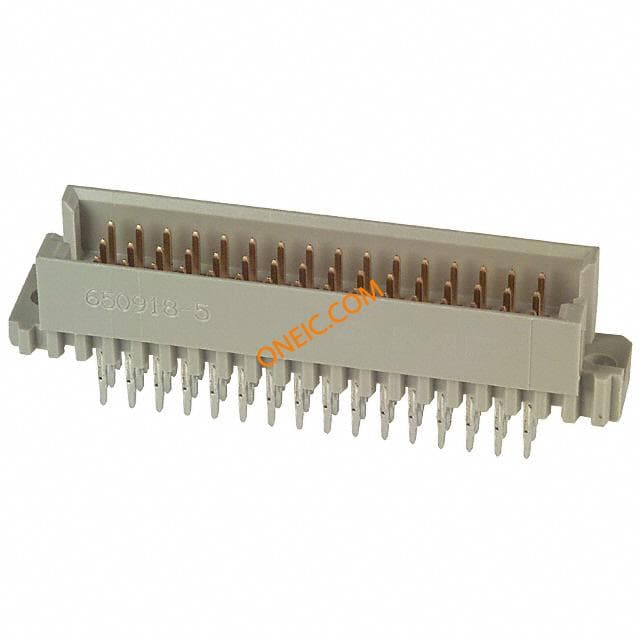

650918-5
