5650868-4
| Manufacturer | |
| Description | Conn DIN 41612 RCP 48 POS 2.54mm Solder RA Thru-Hole Eurocard Type R CONN DIN RECEPT 48POS RT ANG PCB DIN 41612 Connectors RECPT 48P R/A TYPE R Conn DIN 41612 RCP 48 POS 2.54mm Solder RA Thru-Hole Product Highlights:Receptacle48 PositionsPCB Mount Angle = Right AngleNo PCB Retention FeaturePost Type = Solder PostSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 TYPERTTRSDRTLR/A,ASSY,RECEPTACLE,EUROCARD,TYPER/2,LEAD-F 48 Position Right Angle Solder Post No PCB Retention Receptacle Eurocard Type R TE Connectivity Eurocard 系列 48 路 2.54mm 节距, R型 C2等级, 3 行 a/b/c, 直角 DIN 41612 插座, 焊接端接 ASSY,RECEPTACLE,EUROCARD,TYPE |
| Category |
Business
| Product Category | DIN 41612 Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 140 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Interface | Eurocard/DIN 41612 | Voltage - Supply | 250 |
| Current Rating (Max) | 1.5 | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | Gray | Depth | 17.58 mm |
| Pitch | 2.54 mm | Height | 10.49 mm |
| Coating | Without | Packaging | Bulk |
| Orientation | 直角 | Termination | Solder |
| Contact Type | Solder Post | Housing Color | Gray |
| Length - Tail | 2.79 mm | Mounting Type | Through Hole |
| Connector Type | Receptacle, Female Sockets | Contact Finish | DIN 41612 Class 2 |
| Mounting Style | Through Hole | Number of Rows | 3 |
| Terminal Style | .25 x .25 mm [ .01 x .01 in ] | Insert Material | 铜合金 |
| Contact Material | Copper Alloy | Housing Material | Polymer |
| Length - Overall | 53.24 mm | Panel Mount Type | 通孔 - 焊接 |
| Primary Material | Eurocard | Termination Rows | 焊接 |
| Make Before Break | No | Termination Style | Solder Pin |
| Mating Orientation | Without | Number of Contacts | 48 |
| Number of Positions | 48 | Contact Length - Post | 2.79 mm [ .11 in ] |
| Material - Insulation | Polymer Thermoplastic, Glass Filled | Mounting Hole Diameter | 不带 |
| Contact Finish - Mating | 锡 | Termination Post Length | 2.79 [0.110] |
| Contact Finish Thickness | 2.54 µm [ 100 µin ] | ||
Product Info
| Type | DIN 41612 | Grade | II |
| Style | 1/2 R | Gender | RCP |
| Series | 5650868 | Guide Method | Without |
| Product Type | Receptacle | Number of Columns | 16 |
| Outlet Types and Quantity | A/b/c | Number of Positions Loaded | All |
Environmental
| Ratings | C2 | Level, Class | 2 |
| Operating Temperature | -55°C ~ 125°C | Thermal Resistance of Package | 1.57 mm [ .062 in ] |
Similar Parts

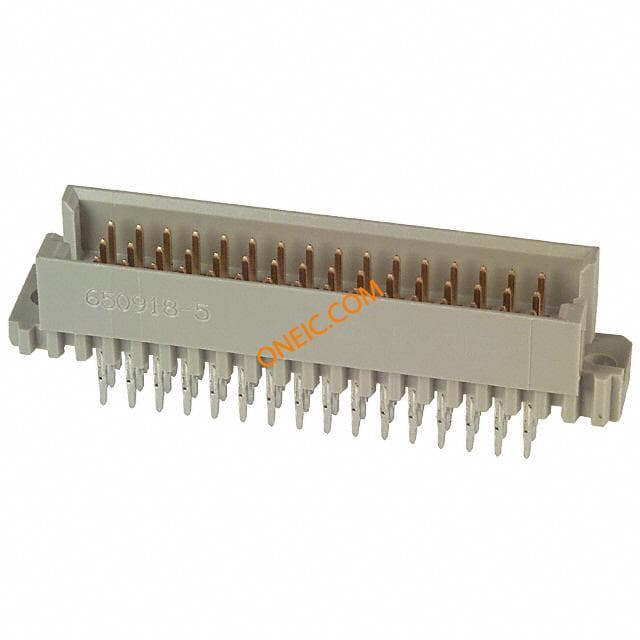

650918-5
te connectivity / amp
Conn DIN 41612 PIN 48 POS 2.54mm Solder ST Thru-Hole Eurocard Type R CONN DIN PLUG 48POS VERT PCB DIN 41612 Connectors Type R Pin Header 48 P w/ Action Pin Conn DIN 41612 PIN 48 POS 2.54mm Solder ST Thru-Hole Product Highlights:PlugNumber of Positions = 48PCB Mount Angle = VerticalYes PCB Retention FeatureACTION (Compliant) Press-fit PostsSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 048 EURO TYPE R PIN AP ASSY
5650478-5
te connectivity / amp
Conn DIN 41612 PIN 48 POS 2.54mm Solder RA Thru-Hole DIN 41612 Connectors PLUG 48P R/A TYPE C Eurocard Type C CONN DIN PLUG 48POS RT ANG PCB 2.54mm,pin,horizontal,solder,PCB,48way Conn DIN 41612 PIN 48 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 48Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 Se CONECTOR,PLUG,EUROCARDTYPEC,48POS,ROWSA,B,CLOADED 48 Positions Eurocard Product Line Plug 2.54mm Pitch TE Connectivity Eurocard 系列 48 路 2.54mm 节距, 1/2 C型 C2等级, 3 行 a/b/c, 直角 DIN 41612 插头, 焊接端接 ASSY,PIN,EUROCARD,TYPE C/2,LEA
3-1393659-9
te connectivity / amp
Conn DIN 41612 PIN 48 POS 2.54mm Solder ST Thru-Hole Eurocard Type R CONN PLUG 48POS VERT SOLDER GRAY Plug pcb vert 48w 3row 2.54mm Eurocard DIN 41612 Connectors V42254B1202R480 PC612 MESSERLE Conn DIN 41612 PIN 48 POS 2.54mm Solder ST Thru-Hole Product Highlights:Housing Gender = ReceptacleContact Gender = Pin48 PositionsPCB Mount Angle = VerticalWithout PCB Mount Retention Plugpcbvert48w3row2.54mmEurocard Socket; DIN 41612,type R; male; straight; PIN:48; THT; len.4.5mm 48 Position 2.54 mm Plug Vertical Through Hole Euro Card Type R Connector Multipole plug, R/2 48p DIN 41612 2 3 x 16 a + b + c, 3-1393659-9, TE Connectivity TE Connectivity Eurocard 系列 48 路 2.54mm 节距, 1/2 R型 C2等级, 3 行 a/b/c 直向 DIN 41612 插头, 焊接端接
650948-5
te connectivity / amp
Conn DIN 41612 PL 48 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 48POS RT ANG PCB DIN 41612 Connectors Type C Pin Header 48 Position Conn DIN 41612 PL 48 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 48Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 048 EURO TYPE C PIN ST ASSY
650917-5
te connectivity / amp
Conn DIN 41612 PIN 48 POS 2.54mm Press Fit ST Thru-Hole DIN 41612 Connectors Type R Pin Header 48 P w/ Action Pin Eurocard Type R RECT DIN PLUG 48 ACTION PIN .521 Conn DIN 41612 PIN 48 POS 2.54mm Press Fit ST Thru-Hole Product Highlights:PlugNumber of Positions = 48PCB Mount Angle = VerticalYes PCB Retention FeatureACTION PIN (Compliant) PostsSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 048 EURO TYPE R PIN AP ASSY
5650918-5
te connectivity / amp
Conn DIN 41612 PIN 48 POS 2.54mm Solder ST Thru-Hole Eurocard Type R CONN DIN PLUG 48POS VERT PCB DIN 41612 Connectors R/2 PIN VRT ABCX16C L2 PFIT Conn DIN 41612 PIN 48 POS 2.54mm Solder ST Thru-Hole Product Highlights:PlugNumber of Positions = 48PCB Mount Angle = VerticalYes PCB Retention FeatureACTION PIN (Compliant) PostsSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 CONNECTOR, PLUG, DIN, 48WAY ASSY,PIN,EUROCARD,TYPE R/2,LEA
650916-5
te connectivity / amp
Conn DIN 41612 PL 48 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 48POS RT ANG PCB DIN 41612 Connectors 48P DIN PCB BRDLCK 900 Conn DIN 41612 PL 48 POS 2.54mm Solder RA Thru-Hole Search Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 48 Position 2.54 mm Plug Right Angle Through Hole Eurocard Type C Connector 048 EURO TYPE C PIN BL ASSY
650477-5
te connectivity / amp
Conn DIN 41612 PIN 48 POS 2.54mm Solder ST Thru-Hole Eurocard Type R CONN DIN PLUG 48POS VERT PCB DIN 41612 Connectors 048 EURO TYPE R PIN 300 Conn DIN 41612 PIN 48 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = Plug48 PositionsPCB Mount Angle = VerticalNo PCB Retention FeatureSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 048 EURO TYPE R PIN ST ASSY
5650916-5
te connectivity / amp
Conn DIN 41612 PIN 48 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 48POS RT ANG PCB DIN 41612 Connectors PLUG 48P R/A TYPE C Conn DIN 41612 PIN 48 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 48Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 48 Position 2.54 mm Plug Right Angle Through Hole Eurocard Type C Connector ASSY,PIN,EUROCARD,TYPE C/2,LEA
174375-1
te connectivity / amp
Connector Accessories Receptacle Dust Cover Thermoplastic White Eurocard and RS-System Accessories IEC DUST COVER Eurocard DIN41612 C,dust cover,64,96 rcp Standard Card Edge Connectors IEC DUST COVER Connector Accessories Receptacle Dust Cover Thermoplastic White Product Highlights:Dust CoverMating Type = ReceptacleNumber of Positions = 64, 96Size = StandardUsed For Type C Connector, Used For Type R ConnectorSearch Keywords:DIN 41612, IEC 603-2, pcb connectors, board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, EurocardDIN41612C,dustcover,64,96rcp Cap IEC Dust Cover Accessory TE Connectivity
5650948-5
te connectivity / amp
Conn DIN 41612 PIN 48 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 48POS RT ANG PCB Eurocard DIN41612 C,plug,3row,r/a,48way DIN 41612 Connectors Type C Pin Header 48 Position Conn DIN 41612 PIN 48 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 48Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 Receptacle,Eurocard;Plug;Brass;48;Polyester;Gray;PCBMount;0.130in. 48 Position 2.54 mm 3 Row Plug Male Pins Right Angle Eurocard Type C Connector TE Connectivity Eurocard 系列 48 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c, 直角 DIN 41612 插头, 焊接端接 ASSY,PIN,EUROCARD,TYPE C/2,LEA
5650477-5
te connectivity / amp
Conn DIN 41612 PIN 48 POS 2.54mm Solder ST Thru-Hole Eurocard Type R CONN DIN PLUG 48POS VERT PCB DIN 41612 Connectors PLUG 48P VERT TYPE R Conn DIN 41612 PIN 48 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = Plug48 PositionsPCB Mount Angle = VerticalNo PCB Retention FeatureSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR, PLUG, 48WAY ASSY,PIN,EUROCARD,TYPE R/2,LEAD-FREE,48
V42254B1201R480
TE Connectivity
PC612 MESSERLE

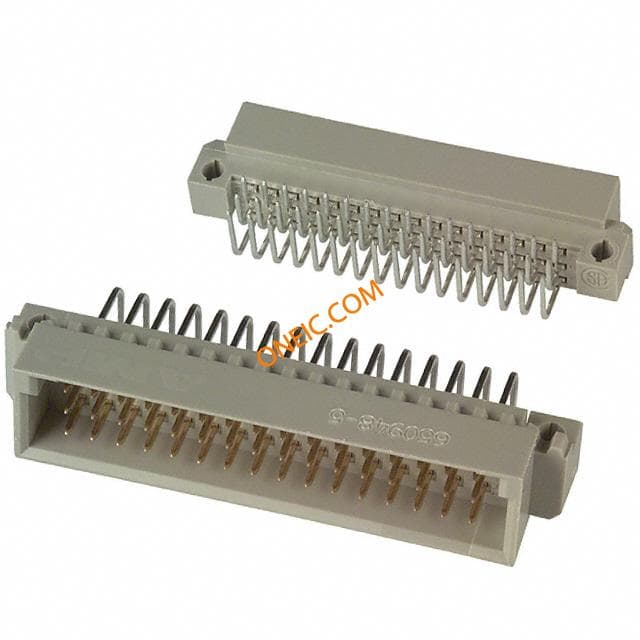

2-42935-1765
