5499786-9
| Manufacturer | |
| Description | Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 40POS .100 GOLD Headers & Wire Housings 40 POS HDR 15AU R/A W/LONG LATCHES Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, RIGHT ANGLE, 40WAY Conn Ejector Header HDR 40 POS 2.54mm A/L UNIV HDR 40P RA LG LAT |
| Category |
Business
| Tradename | AMP-LATCH | Product Category | Headers & Wire Housings |
| Standard Package | Trays | Factory Pack Quantity | 32 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | Approval Agency | :CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Range deg/s | :TE - AMP-LATCH Series | Switch Function | Ejection |
| Current Rating (Max) | :1A | Insulation Resistance | :1Gohm |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Length | :70.2mm | Weight | 0.0105 |
| Packaging | Bulk | Shrouding | Yes |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Contact Type | Male Pin | Lead Spacing | :1.27mm |
| Pitch - Post | 2.54 x 2.54 [.100 x .100] | Polarization | Center, Dual Polarizing Bar, Military |
| 2nd Connector | With | Contact Shape | Square |
| Housing Color | Black | Mounting Type | Right Angle |
| Shell Plating | :Tin/lead over nickel | Connector Type | Universal Ejection Pin Headers |
| Contact Finish | Gold Over Nickel | Fastening Type | Latch, Long/Eject Hooks |
| Number of Rows | 2 | Package / Case | 4-Sided |
| Board Thickness | 1.57 [0.062] | Locking Feature | Latch |
| Profile (W x H) | Standard | Contact Material | :Copper |
| Housing Material | Thermoplastic | Size / Dimension | 0.64 [.025] |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Color - Connectors | :Black | Mating Orientation | With |
| Number of Contacts | 40 | Contact Termination | :Through Hole Right Angle |
| Number of Positions | 40 | Contact Length - Mating | 0.240" (6.10mm) |
| Termination Post Length | 2.79 [0.110] | Contact Finish Thickness | 15µin (0.38µm) |
| Mounting Panel Thickness | :59.94mm | 1st Connector Mounting Type | :Right Angle |
Product Info
| Type | Ejector Header | Gender | HDR |
| Series | AMP-LATCH | Polarity | :Bump/Clip |
| Product Type | Headers | Other Specifications | With |
| Number of Positions Loaded | All | ||
Environmental
| Mating Cycles | :50 | Temperature Rating | Standard |
| Operating Temperature | :105°C | ||
Documents & Media
Similar Parts
1658623-9
te connectivity / amp
Conn IDC Connector RCP 40 POS 2.54mm IDT RA Cable Mount Tube Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 40POS GOLD AMP-LATCHNOVOReceptacleforRibbonCable Headers & Wire Housings .1CL IDC REC 2X20P MIL 30AU Conn IDC Connector RCP 40 POS 2.54mm IDT RA Cable Mount Tube Product Highlights:Connector Type = NOVONumber of Positions = 40ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 40POS, 2.54MM AMP-LATCHNOVOReceptacleforRibbonCable,40position,.100X.100Centerline Amp-Latch 40 Position NOVO Ribbon Cable IDC Socket 40 NOVO MIL 30DP, LEAD FREE
2-1658526-1
te connectivity / amp
Conn IDC Connector F 40 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 40POS VERT .100 GOLD Headers & Wire Housings IDC RCPT 40P W/STR RLF Conn IDC Connector F 40 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 40ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 40WAY CONNECTOR,RECEPTACLE,AMP-LATCH609,40POSITION,MATINGPOLARIZATION 609-4041LF FEM SOCKT,LEAD FREE
2-1658526-0
te connectivity / amp
Conn IDC Connector F 40 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 40POS VERT GOLD Conn IDC Connector F 40 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 40ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization 609-4030LF FEM SOCKT,LEAD FREE
1658624-9
te connectivity / amp
Conn IDC Connector F 40 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 40POS POLAR GOLD Headers & Wire Housings 40 NOVO DUAL 30DP, LEAD FREE Ribbon Cable Connectors (AMP-LATCH) Product Highlights:Connector Type = NOVONumber of Positions = 40ReceptacleMating Polarization Type = Dual Polarizing BarWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board 40 NOVO DUAL 30DP, LEAD FREE
1658622-9
te connectivity / amp
Conn IDC Connector RCP 40 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 40POS W/POL GOLD AMP-LATCH Novo IDC Receptacle 40P Headers & Wire Housings .1CL IDC REC 2X20P C&M 30AU Conn IDC Connector RCP 40 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 40ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 40POS, 2.54MM ReceptacleswithRecessedCovers,Center&MilitaryPolarized,40pos. AMP LATCH 40 Position 2.54 mm Pitch NOVO Cable to Board IDC Receptacle TE Connectivity AMP-LATCH Novo 系列 2行 40路 2.54mm节距 母 IDC 连接器 , 电缆安装 40 NOVO MIL/CTR 30DP,LEAD FREE

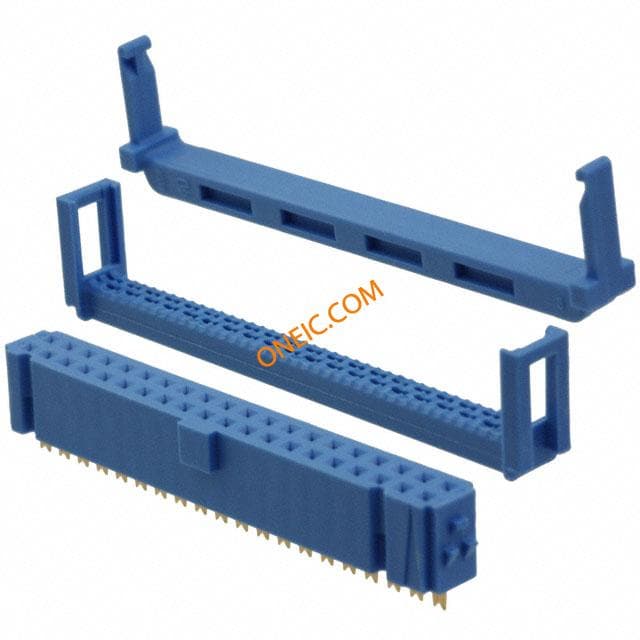

1-1658527-3
