2-1658526-0
| Manufacturer | |
| Description | Conn IDC Connector F 40 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 40POS VERT GOLD Conn IDC Connector F 40 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 40ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization 609-4030LF FEM SOCKT,LEAD FREE |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Current Rating (Max) | 1/Contact A | ||
Mechanical
| Color | Blue | Depth | 7.05 mm |
| Pitch | 2.54 mm | Height | 12.37 mm |
| Packaging | Bulk | Wire Type | Ribbon Cable |
| Body Color | 蓝色 | Cable Exit | Without |
| Cable Type | 带状电缆 | Wire Gauge | 28-30 AWG |
| Row Spacing | 0.100" (2.54mm) | Termination | IDT |
| Contact Type | Female Socket | Polarization | Center & Military |
| 2nd Connector | Without | Housing Color | Blue |
| Mounting Type | No | Cable End Type | Without |
| Connector Type | AMP-LATCH | Contact Finish | Gold Over Nickel |
| Mounting Style | Cable | Number of Rows | 2 |
| Contact Material | Beryllium Copper | Housing Material | Thermoplastic Glass Reinforced |
| Length - Overall | 55.27 mm | Mounting Feature | Without |
| Cable Termination | IDC | Mating Orientation | With |
| Number of Contacts | 40 | Number of Positions | 40 |
| Center Contact Material | 2.54 x 2.54 [.100 x .100] | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | IDC Connector | Gender | F |
| Features | Polarizing Key | Product Type | 连接器 |
| Connection Type | Ribbon Cable | With Modem Control | Yes |
Environmental
| Operating Temperature | -55C to 125C | ||
Similar Parts
5499913-9
te connectivity / amp
Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 40POS .100 GOLD Headers & Wire Housings 40 POS HDR 15AU R/A W/SHORT LATCHES Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 40POS, 2.54MM TE Connectivity AMP-LATCH 系列 2.54mm节距 40路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 40P RA SHT LAT
5103309-8
te connectivity / amp
Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 40POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 40 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings HDR VERT DOUBLE 40P low profile Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 40POS, 2.54MM HEADER,PIN,AMP-LATCH,40POS,2.54X2.54,VERTICAL,LOWPROFILE,PCB,BLACK Pin header DIN 41651 40P, 5103309-8, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 40路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 40P VERT BLACK
2-111446-3
te connectivity / amp
Conn IDC Connector PL 40 POS 2.54mm IDT RA Cable Mount Bulk Ribbon Cable Connectors (AMP-LATCH) CONN IDC PIN 40POS 30AU NO LATCH Headers & Wire Housings 040 UNIV I/O 30DP NO EARS Conn IDC Connector PL 40 POS 2.54mm IDT RA Cable Mount Bulk Product Highlights:Connector Type = Universal I/ONumber of Positions = 40PlugWithout Mating PolarizationTerminate To Ribbon CableSearch Keywords:input/output, paddleboard, paddle board HEADER, IDC, NO LATCH, 40WAY 040 UNIV I/O 30DP NO EARS
5102156-9
te connectivity / amp
Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 40POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X020P VERT Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard ProfileNumber of Positions = 40Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 40P VERT

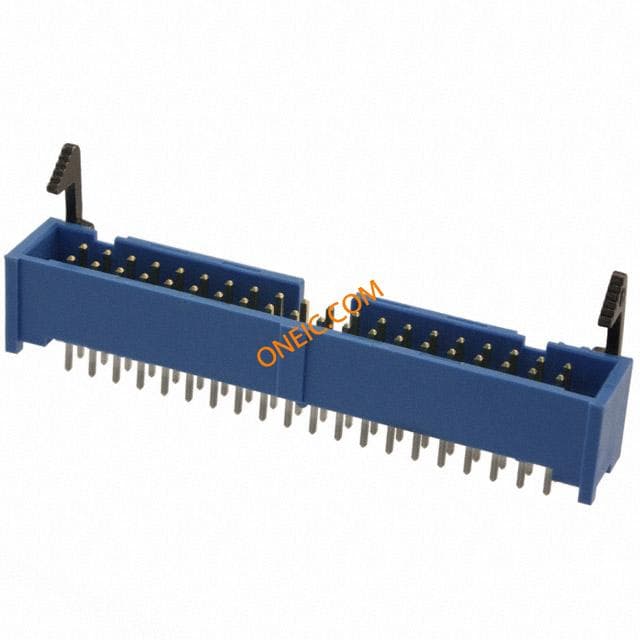

3-1761608-3
te connectivity / amp
Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR .100 40POS TE Connectivity AMP LATCH Series 2.54mm Pitch 40 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 100X100 HDR 2X020P VRT LPRO Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Pin HeaderAMP-LATCH Product LineLow Profile40 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, Headervert40way2.54mmEjectAmpLatch TE Connectivity AMP-LATCH 系列 2.54mm节距 40路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 40P VERT SHT L
5102321-9
te connectivity / amp
Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 40POS .100 GOLD Header Vertical Pin 40 way Amp-Latch Headers & Wire Housings 100X100 HDR 2X020P VERT EJE Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 40POS, 2.54MM HeaderVerticalPin40wayAmp-Latch TE Connectivity AMP-LATCH 系列 2.54mm节距 40路 (2排) 直 PCB 针座, 焊接端接 , 通孔 A/L UNIV HDR 40P VERT LG LAT
3-1761603-3
te connectivity / amp
Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 40POS 30AU TE Connectivity 3-1761603 Series 2.54mm Pitch 40 Way 2 Row Straight PCB Header, Solder Termination Headers & Wire Housings PIN HEADER 40 POS VERT LOW PROFILE Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 40WAY HEADER,PIN,IDC,AMP-LATCH,40POS,LOWPROFILE,PCB,VERTICAL,BLUE TE Connectivity AMP-LATCH 系列 2.54mm节距 40路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 40P VERT BLUE
2-5499206-9
te connectivity / amp
Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 40POS VERT GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 40 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings .1CL IDC HDR 2X20P VRT EJE Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, VERT. PCB 40 WAY SKT TE Connectivity AMP-LATCH 系列 2.54mm节距 40路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 40P VERT LG LAT B
3-1761605-3
te connectivity / amp
Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 40POS 30AU Headers & Wire Housings IDC CONNECTOR Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, R/A, 40WAY IDC LOW PRO HDR 40P RA BLUE
2-111492-3
te connectivity / amp
Conn Ejector Header M 40 POS 2.54mm IDT RA Cable Mount Bulk Ribbon Cable Connectors (AMP-LATCH) CONN PLUG 40POS UNIV I/O NO EARS 040 UNIV I/O 30DP NO EARS LTCH 040 UNIV I/O 30DP NO EARS LTCH Search Keywords:input/output, paddleboard, paddle board
5499910-9
te connectivity / amp
Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 40POS .100 GOLD Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 40POS, 2.54MM HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,40POS,2.54X2.54,PCB,VERTICAL TE Connectivity AMP-LATCH 系列 2.54mm节距 40路 (2排) 直 PCB 针座, 焊接端接 , 通孔 A/L UNIV HDR 40P VERT SHT LAT
5499786-9
te connectivity / amp
Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 40POS .100 GOLD Headers & Wire Housings 40 POS HDR 15AU R/A W/LONG LATCHES Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, RIGHT ANGLE, 40WAY Conn Ejector Header HDR 40 POS 2.54mm A/L UNIV HDR 40P RA LG LAT
5103310-8
te connectivity / amp
Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 40POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 40 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 100X100 HDR 2X020P R/A LOW PROFILE Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 40POS, 2.54MM Header,LowProfile;Shrouded;SquareRight;CopperAlloyPlated;40;Gold TE Connectivity AMP-LATCH 系列 2.54mm节距 40路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 40P RA BLACK
1-1761609-3
te connectivity / amp
Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A .100 40POS Headers & Wire Housings IDC LOW PRO HDR 40P RA SHT LAT BLK Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, IDC LOW PRO HDR 40P RA SHT LAT
5102155-9
te connectivity / amp
Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 40POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X020P VERT Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:PreloadedHousing Gender = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 40P VERT
1-1761607-3
te connectivity / amp
Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A .100 40POS Headers & Wire Housings 100X100 HDR 2X020P R/A LPRO Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, TE Connectivity AMP-LATCH 系列 2.54mm节距 40路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 40P RA LG LAT BLK
2-5499160-9
te connectivity / amp
Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 40POS VERT GOLD Headers & Wire Housings UNIV HDR 40P VT BLU SHORT LATCH Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 40P VERT SHT LAT BLUE

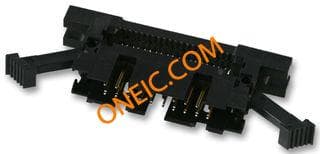

2-111506-4
