1658624-9
| Manufacturer | |
| Description | Conn IDC Connector F 40 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 40POS POLAR GOLD Headers & Wire Housings 40 NOVO DUAL 30DP, LEAD FREE Ribbon Cable Connectors (AMP-LATCH) Product Highlights:Connector Type = NOVONumber of Positions = 40ReceptacleMating Polarization Type = Dual Polarizing BarWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board 40 NOVO DUAL 30DP, LEAD FREE |
| Category |
Business
| Standard Pack | 50 | Standard Package | Rail / Tube |
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Leadfree Defin | Not relevant for lead free process | UL File Number | E28476 |
| CSA File Number | LR 7189 | Standard Number | CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 250 | Voltage - Supply | 250 |
| Resistance - Input | 5000 | Connector Impedance | 刺破式压接 (IDC) |
| Current Rating (Max) | 1 | Connector - Voltage Input | 音叉 |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Width | 7.49 mm [ .2949 in ] | Height | 15.16 mm [ .5968 in ] |
| Length | 55.37 mm [ 2.1799 in ] | Base Type | 不带 |
| Packaging | Tube | Wire Type | Ribbon Cable |
| Body Color | 黑色 | Cable Exit | Without |
| Cable Type | 带状电缆 | Row Spacing | 0.100" (2.54mm) |
| Termination | IDT | Contact Type | Forked |
| Polarization | Dual Polarizing Bar | 2nd Connector | Without |
| Housing Color | Black | Mounting Type | No |
| Cable End Type | Without | Connector Type | NOVO |
| Contact Finish | Gold Over Palladium Nickel Over Nickel|Gold Over Nickel | Flange Feature | 否 |
| Mounting Style | Cable | Number of Rows | 2 |
| Actuation Force | 不带 | Insert Material | 磷青铜 |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic |
| Mounting Feature | Without | Package Quantity | 50 |
| Panel Mount Type | 通孔 - 焊接 | Size / Dimension | .08 – .15 mm², 158 – 296 CMA, 28 – 26 美国线规 |
| Cable Termination | IDC | Termination Style | IDC |
| 1st Connector Type | 插针接头 | Mating Orientation | With |
| Number of Contacts | 40 | Insulation Material | .787 – .94 mm [ .031 – .037 in ] |
| Number of Positions | 40 | Contact Length - Post | 信号（数据） |
| Mounting Hole Diameter | 带有 | Contact Finish - Mating | 锡 |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Note | Receptacle can be used in applications requiring non-polarization, as well as m | Type | IDC Connector |
| Gender | F | Features | Feed Through, Polarizing Key |
| Polarity | 带有 | Product Type | Receptacles / Sockets - Housings |
| Connection Type | Ribbon Cable | With Modem Control | Yes |
| DigiKey Programmable | 不带 | Application Specifics | Wire-to-Board |
Environmental
| Operating Temperature | -65 – 105 °C [ -85 – 221 °F ] | ||
Documents & Media
Similar Parts
5499913-9
te connectivity / amp
Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 40POS .100 GOLD Headers & Wire Housings 40 POS HDR 15AU R/A W/SHORT LATCHES Conn Ejector Header HDR 40 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 40POS, 2.54MM TE Connectivity AMP-LATCH 系列 2.54mm节距 40路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 40P RA SHT LAT
5103309-8
te connectivity / amp
Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 40POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 40 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings HDR VERT DOUBLE 40P low profile Conn Shrouded Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 40POS, 2.54MM HEADER,PIN,AMP-LATCH,40POS,2.54X2.54,VERTICAL,LOWPROFILE,PCB,BLACK Pin header DIN 41651 40P, 5103309-8, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 40路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 40P VERT BLACK
2-111446-3
te connectivity / amp
Conn IDC Connector PL 40 POS 2.54mm IDT RA Cable Mount Bulk Ribbon Cable Connectors (AMP-LATCH) CONN IDC PIN 40POS 30AU NO LATCH Headers & Wire Housings 040 UNIV I/O 30DP NO EARS Conn IDC Connector PL 40 POS 2.54mm IDT RA Cable Mount Bulk Product Highlights:Connector Type = Universal I/ONumber of Positions = 40PlugWithout Mating PolarizationTerminate To Ribbon CableSearch Keywords:input/output, paddleboard, paddle board HEADER, IDC, NO LATCH, 40WAY 040 UNIV I/O 30DP NO EARS
5102156-9
te connectivity / amp
Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 40POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X020P VERT Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard ProfileNumber of Positions = 40Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 40P VERT
5103311-8
te connectivity / amp

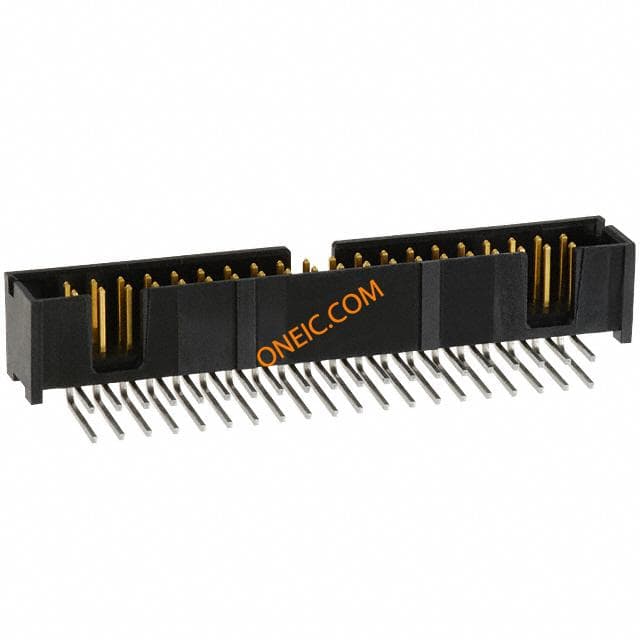

Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 40POS GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 40 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings HDR R.A. DOUBLE 40P low profile Conn Shrouded Header HDR 40 POS 2.54mm Solder RA Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 40POS, 2.54MM HEADER,PIN,AMP-LATCH,40POS,2.54X2.54,RIGHTANGLE,LOWPROFILE,PCB,BLAC Pin header DIN 41651 40P, 5103311-8, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 40路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 40P RA BLACK
5102321-9
te connectivity / amp
Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 40POS .100 GOLD Header Vertical Pin 40 way Amp-Latch Headers & Wire Housings 100X100 HDR 2X020P VERT EJE Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 40POS, 2.54MM HeaderVerticalPin40wayAmp-Latch TE Connectivity AMP-LATCH 系列 2.54mm节距 40路 (2排) 直 PCB 针座, 焊接端接 , 通孔 A/L UNIV HDR 40P VERT LG LAT
2-5499206-9
te connectivity / amp

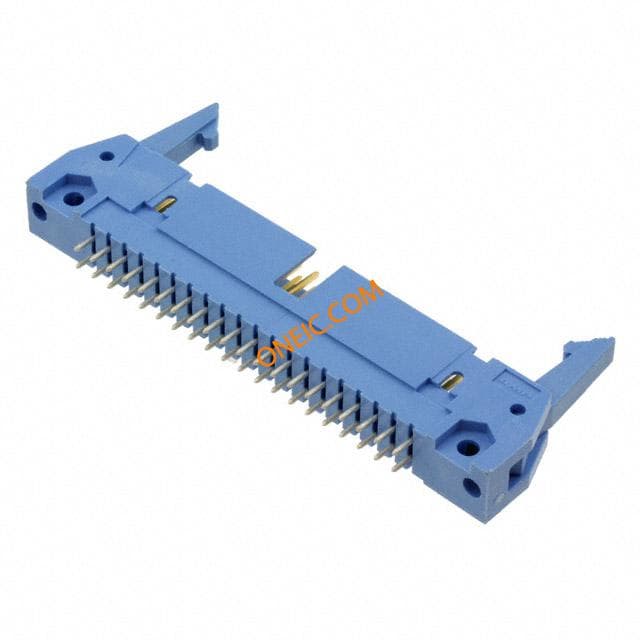

Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 40POS VERT GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 40 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings .1CL IDC HDR 2X20P VRT EJE Conn Ejector Header HDR 40 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 402.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, VERT. PCB 40 WAY SKT TE Connectivity AMP-LATCH 系列 2.54mm节距 40路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 40P VERT LG LAT B
