535032-5
| Manufacturer | |
| Description | Conn DIN 41612 F 96 POS 2.54mm Press Fit ST Thru-Hole Eurocard Type C CONN RECEPT VERT 96 POS DIN PCB DIN 41612 Connectors EUROCARD RECPT 96P Conn DIN 41612 F 96 POS 2.54mm Press Fit ST Thru-Hole Product Highlights:PreloadedContact Gender = ReceptacleHousing Gender = PlugType = Type C2.54 mm CenterlineSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 096EUROTYPECRECEPTAPASSY 96 Position 2.54 mm Receptacle Vertical Through Hole Eurocard Type C Connector |
| Category |
Business
| Other Names | 5350325 | Product Category | DIN 41612 Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 150 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS/Not ELV Compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Current Rating (Max) | 1.5 A | ||
Mechanical
| Size | Standard | Color | Gray |
| Depth | 10.59 mm | Pitch | 2.54 mm |
| Height | 11.51 mm | Coating | Without |
| Packaging | Bulk | Termination | Press Fit |
| Contact Size | 0.30 x 0.61 [.012 x .024] | Contact Type | Compliant Post |
| Housing Color | Gray | Length - Tail | 4.83 mm |
| Mounting Type | Through Hole | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold Over Palladium Nickel | Mounting Style | Through Hole |
| Number of Rows | 3 | Board Thickness | 1.57 [0.062] |
| Contact Material | Phosphor Bronze | Housing Material | Polyester |
| Length - Overall | 93.98 mm | Mounting Feature | With |
| Package Quantity | 150 | Make Before Break | No |
| Termination Style | Press Fit | Number of Contacts | 96 |
| Number of Positions | 96 | Material - Insulation | Polyester, Glass Filled |
| Termination Post Length | 4.83 [0.190] | ||
Product Info
| Type | DIN 41612 | Grade | II |
| Style | C | Gender | Receptacle |
| Series | 535032 | DELETED | Compliant |
| Product Type | Type C Connectors | Bus Connection | FUTUREBUS, MULTIBUS (II), NUBUS, VMEbus, VXIBus |
| Connection Type | Printed Circuit Board | Tool Type Feature | Yes |
| Number of Positions Loaded | All | ||
Environmental
| Temperature | No | Level, Class | 2 |
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts
5650470-5
te connectivity / amp
Conn DIN 41612 PIN 96 POS 2.54mm Solder ST Thru-Hole Eurocard Type R CONN DIN PLUG 96POS VERT PCB Plug 96 way pin DIN41612 Eurocard DIN 41612 Connectors PLUG 96P VERT TYPE R Conn DIN 41612 PIN 96 POS 2.54mm Solder ST Thru-Hole Product Highlights:PlugNumber of Positions = 96PCB Mount Angle = VerticalNo PCB Retention FeaturePost Type = Solder PostSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 DIN 41612 PCB CONNECTOR, PLUG, 96WAY EUROCARDTypeRVerticalPlug,96Position,SolderPost,DINLevelII,Gray CONN DIN ASSY,PIN,EUROCARD,TYPE R,LEAD-
1-650909-4
te connectivity / amp
Conn DIN 41612 PIN 96 POS 2.54mm Press Fit ST Thru-Hole Eurocard Type R CONN PLUG VERT 96 POS .100 DIN DIN 41612 Connectors EUROCARD VER PLG 96P Eurocard Type R Product Highlights:PlugNumber of Positions = 96PCB Mount Angle = VerticalYes PCB Retention FeatureACTION (Compliant) Press-fit PostsSearch Keywords:parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 096 EURO TYPE R PIN AP ASSY
536010-5
te connectivity / amp
Conn DIN 41612 PL 96 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 96POS RT ANG PCB DIN 41612 Connectors EUROCARD RA PLUG 900 Conn DIN 41612 PL 96 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 96Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612
650947-5
te connectivity / amp
Conn DIN 41612 PL 96 POS 2.54mm Solder RA Thru-Hole Eurocard Type C CONN DIN PLUG 96POS RT ANG PCB Eurocard DIN41612 C,3row,r/a,96 pin DIN 41612 Connectors 96P RT ANG PCB CON Conn DIN 41612 PL 96 POS 2.54mm Solder RA Thru-Hole Product Highlights:Type C ConnectorsPlugNumber of Positions = 96Rows Loaded = A, B, CTerminate To Printed Circuit BoardSearch Keywords:board to board, parallel, stacking, co-planar, horizontal, high density, midplane, two piece, IEC 603-2, DIN 41612 Receptacle,Eurocard;Plug;Brass;96;Polyester;Gray;PCBMount;0.130in. CONN DIN TE Connectivity Eurocard 系列 96 路 2.54mm 节距, C型 C2等级, 3 行 a/b/c, 直角 DIN 41612 插头, 焊接端接 096 EURO TYPE C PIN ST ASSY

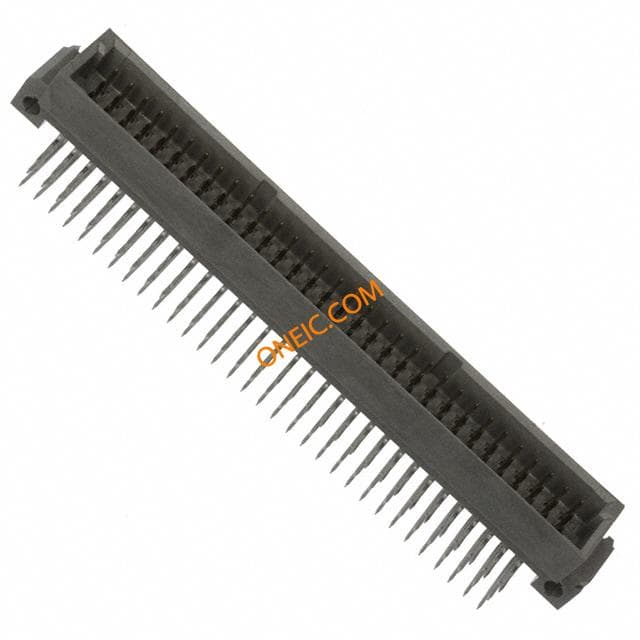

5148116-5
