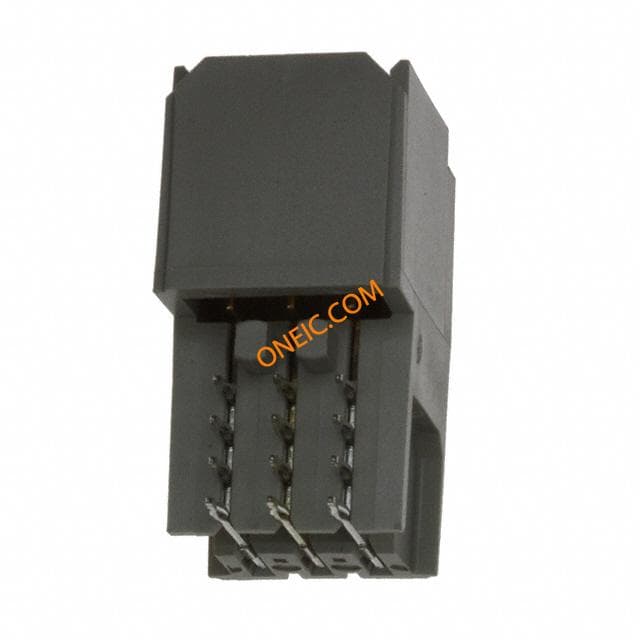

223955-2
| Manufacturer | |
| Description | Conn Universal Power Module RCP 3 POS 2mm Solder ST Thru-Hole 3 Terminal 1 Port Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN RECEPT VERT 3 POS 2MM Z-PACK 3 Female Straight Heavy Duty Power Connector, Through Hole 10A Hard Metric Connectors UNV PWR ASSY RECP Conn Universal Power Module RCP 3 POS 2mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:ReceptacleNumber of Positions = 3Not KeyedSearch Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, HARD METRIC CONNECTOR, RECEPTACLE, 3POS RECEPTACLE,UNIVERSALPOWERMODULE,3POSITION,VERTICAL TE Connectivity Z-Pack 系列 3路 直 2mm节距 通孔 母 RJ45-Rangierfeld, 通用电源模块 UNV PWR MDL ASY RECEPT |
| Category |
Business
| Other Names | 2239552 | Product Category | Hard Metric Connectors |
| Standard Package | Rail / Tube | Factory Pack Quantity | 60 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS/Not ELV Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Voltage Rating | 250V | Current Rating (Max) | 10A |
Mechanical
| Color | Gray | Depth | 9.5 mm |
| Pitch | 2 mm | Height | 12.15 mm |
| Weight | 1 | Packaging | Tube |
| Termination | Solder | Contact Type | Compliant Post |
| Housing Color | Gray | Mounting Type | Through Hole |
| Connector Type | Receptacle, Female Blade Sockets | Contact Finish | Tin-Lead |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Connector Style | Blade Power | Connector Usage | Backplane |
| Contact Material | Phosphor Bronze | Housing Material | Polyester |
| Length - Overall | 11.35 mm | Termination Style | Press Fit |
| Number of Contacts | 3 | Contact Termination | :Press Fit Vertical |
| Number of Positions | 3 | Contact Layout, Typical | 3 Power |
| Contact Finish Thickness | 3µin (0.08µm) | ||
Product Info
| Note | Contact area lubricated with Bellcore approved lubricant. | Type | Universal Power Module |
| Gender | RCP | Series | Z-PACK |
| Coded, Keyed | No | Product Type | Receptacle |
| Number of Ports | 1 Port | Number of Positions Loaded | All |
