5102162-8
| Manufacturer | |
| Description | Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 34POS .100 GOLD Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard ProfileNumber of Positions = 34Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 34P RA |
| Category |
Business
| Other Names | AHZ34L | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage - Supply | 250 | Resistance - Input | 5000 |
| Current Rating (Max) | 1 | Connector - Voltage Input | 方柱 |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Height | 13.94 mm [ .548 in ] | Length | 57.4 mm [ 2.26 in ] |
| Base Type | 不带 | Packaging | Bulk |
| Shrouding | Yes | Body Color | 黑色 |
| End - Size | 3.81 mm [ .15 in ] | Lead Style | 直角 |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Contact Type | Male Pin | Polarization | Center, Dual Polarizing Bar, Military |
| 2nd Connector | Without | Contact Shape | Square |
| Housing Color | Black | Mounting Type | Right Angle |
| Connector Type | Universal Ejection Pin Headers | Contact Finish | Gold Over Palladium Nickel|Gold Over Nickel |
| Mounting Style | 标准 | Number of Rows | 2 |
| Package / Case | 4-Sided | Shell Material | 4 面 |
| Actuation Force | 不带 | Board Thickness | 3.18 [0.125] |
| Insert Material | 磷青铜 | Profile (W x H) | Standard |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic |
| Package Quantity | 30 | Panel Mount Type | 通孔 |
| Size / Dimension | 0.64 [.025] | Termination Style | 插针 |
| Diameter - Outside | .64 mm [ .025 in ] | Mating Orientation | With |
| Number of Contacts | 34 | Number of Positions | 34 |
| Compatible Shell Size | 与母端插接 | Contact Length - Post | 信号（数据） |
| Mounting Hole Diameter | 带有 | Center Contact Material | 2.54 x 2.54 [.100 x .100] |
| Contact Finish - Mating | 锡 | Contact Length - Mating | 0.240" (6.10mm) |
| Termination Post Length | 3.94 [0.155] | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | Ejector Header | Gender | HDR |
| Polarity | 带有 | Product Type | 连接器 |
| Other Specifications | Without | Number of Positions Loaded | All |
Environmental
| Temperature Rating | Standard | Operating Temperature | 标准 |
| Thermal Resistance of Package | 3.18 mm [ .125 in ] | ||
Similar Parts
746383-1
te connectivity / amp
Connector Accessories Mounting Bolt Accessories (AMP-LATCH) CONN MOUNTING SCREW Headers & Wire Housings A/L MT SCR Connector Accessories Mounting Bolt Product Highlights:Mounting BoltSearch Keywords:ribbon cable connector system, hardware, Mounting Header Screw A/L MT SCREW
1658622-8
te connectivity / amp
Conn IDC Connector RCP 34 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 34POS W/POL GOLD AMP-LATCH Novo IDC Receptacle 34P Headers & Wire Housings .1CL IDC REC 2X17P C&M 30AU Conn IDC Connector RCP 34 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 34ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 34POS, 2.54MM ReceptacleswithRecessedCovers,Center&MilitaryPolarized,34pos. 34 NOVO MIL/CTR 30DP,LEAD FREE
1658620-8
te connectivity / amp
Conn IDC Connector F 34 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 34POS 15 GOLD Headers & Wire Housings MLTRY PLRZD RECPT 34 NOVO Conn IDC Connector F 34 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 34ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board CONNECTOR,RECEPTACLE,NOVA,AMP-LATCH,34POSITION,WITHMATINGPOLARIZATION 34 NOVO MIL 15DP, LEAD FREE
1658621-8
te connectivity / amp
Conn IDC Connector F 34 POS 2.54mm IDT RA Cable Mount Headers & Wire Housings CNTR PLRZD RECPT 34P NOVO Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 34POS W/POL 15 GOLD 34way polarised skt w/o strain relief Conn IDC Connector F 34 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 34ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board SOCKET, NOVOLATCH, 34WAY Connector,Receptacle;Novo;34;Gold(15);Tin-Lead;0.100in.x0.100in. Plug; IDC; female; PIN:34; IDC; for ribbon cable; 1.27mm Multipole socket DIN 41651 34P, 1658621-8, TE Connectivity TE Connectivity AMP-LATCH Novo 系列 2行 34路 2.54mm节距 直角 电缆安装 母 IDC 连接器 34 NOVO MIL/CTR 15DP,LEAD FREE
1658623-8
te connectivity / amp
Conn IDC Connector RCP 34 POS 2.54mm IDT RA Cable Mount Tube Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 34POS GOLD AMP-LATCHConnect,ReceptacleforRibbonCbl Headers & Wire Housings .1CL IDC REC 2X17P MIL 30AU Conn IDC Connector RCP 34 POS 2.54mm IDT RA Cable Mount Tube Product Highlights:Connector Type = NOVONumber of Positions = 34ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 34POS, 2.54MM AMP-LATCHConnector,ReceptacleforRibbonCable,NOVO,34Positions 34 NOVO MIL 30DP, LEAD FREE
487223-9
te connectivity / amp

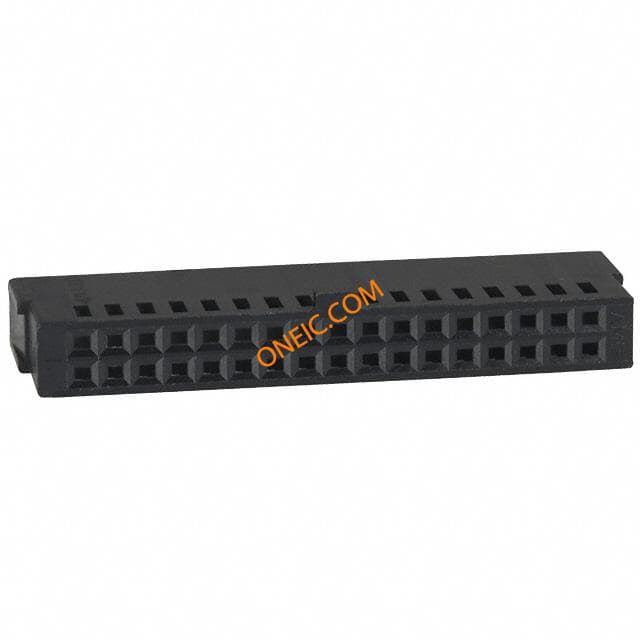

Conn Housing RCP 34 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors 034 HOUSING FFC RCPT 100CL DR FFC & FPC Connectors 34 HSG RCPT 100CL DR Flexible Film Connectors Product Highlights:Housing2.54 mm CenterlineConnector Type = Standard34 PositionsNumber of Rows = DualSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector
1825851-1
te connectivity / amp
Connector Accessories Ejector Headr Locking Latch Polybutylene Terephthalate Black Headers & Wire Housings EJECTOR LATCH AMPMODU Mod IV, V CONN LATCH LOCKING FOR .100 HDRS Connector Accessories Ejector Headr Locking Latch Polybutylene Terephthalate Black Product Highlights:Locking LatchSearch Keywords:board to board, AMPMODU, pcb connectors, AMPLATCH UNIVERSAL HEADER LOCKING LATCH TE Connectivity PCB 针座锁定闩锁 AMPMODU MOD IV LATCH for AMPLA
1-1658526-9
TE Connectivity / AMP

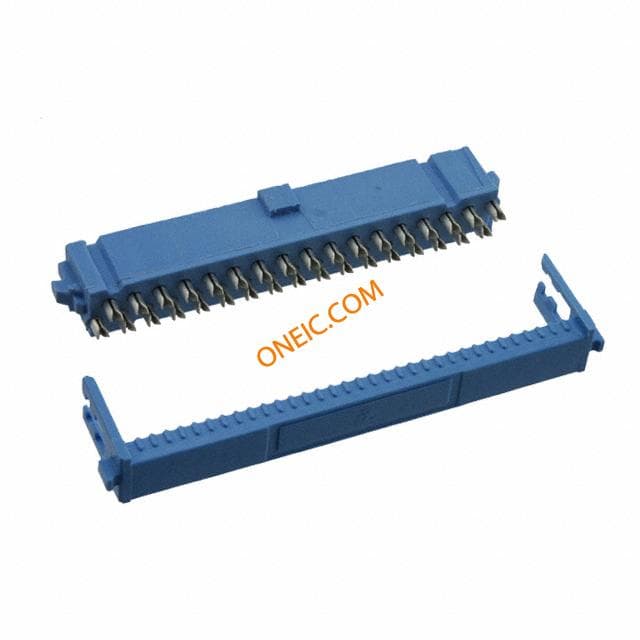

Headers & Wire Housings 34 POS RECPT 30 AU W/STRN RLF Ribbon Cable Connectors (AMP-LATCH) CONN AMP-LATCH RCPT 34POS 34 Way HE10 Skt w/ Strain Relief Conn IDC Connector F 34 POS 2.54mm IDT RA Cable Mount Conn IDC Connector F 34 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 34ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 34WAY 609-3441LF FEM SOCKT,LEAD FREE
