1-1658526-9
| Manufacturer | |
| Description | Headers & Wire Housings 34 POS RECPT 30 AU W/STRN RLF Ribbon Cable Connectors (AMP-LATCH) CONN AMP-LATCH RCPT 34POS 34 Way HE10 Skt w/ Strain Relief Conn IDC Connector F 34 POS 2.54mm IDT RA Cable Mount Conn IDC Connector F 34 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = AMP-LATCHNumber of Positions = 34ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization SOCKET, IDC, 34WAY 609-3441LF FEM SOCKT,LEAD FREE |
| Category |
Business
| Tradename | AMP-LATCH | Product Category | Headers & Wire Housings |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Not relevant for lead free process | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE - 609 Series | Voltage - Breakdown | :500V |
| Current Rating (Max) | 1A | Insulation Resistance | :1Gohm |
| Contact Rating (Current) | :1A | ||
Mechanical
| Color | Blue | Depth | 7.05 mm |
| Pitch | 0.100" (2.54mm) | Height | 12.37 mm |
| Weight | 0.006 | Material | :Glass Feinforced Thermoplastic |
| Packaging | Bulk | Wire Type | Ribbon Cable |
| Cable Exit | With | Wire Gauge | 28-30 AWG |
| Row Spacing | 0.100" (2.54mm) | Termination | IDT |
| Contact Type | Female Socket | Pitch - Post | :2.54mm |
| Polarization | Center & Military | 2nd Connector | Without |
| Housing Color | Blue | Mounting Type | No |
| Cable End Type | Without | Connector Type | AMP-LATCH |
| Contact Finish | Tin over Nickel | Mounting Style | Cable |
| Number of Rows | 2 | Contact Material | Beryllium Copper |
| Housing Material | Thermoplastic Glass Reinforced | Length - Overall | 47.65 mm |
| Mounting Feature | Without | Cable Termination | IDC |
| Termination Style | IDC | Mating Orientation | With |
| Number of Contacts | 34 | Contact Termination | :IDC / IDT |
| Number of Positions | 34 | Center Contact Material | 2.54 x 2.54 [.100 x .100] |
| Contact Finish Thickness | 30µin (0.76µm) | 1st Connector Mounting Type | :Cable |
Product Info
| Type | IDC Connector | Gender | Receptacle |
| Series | AMP-LATCH | Features | Polarizing Key, Strain Relief |
| Polarity | :Bump/Clip | Product Type | Receptacles / Sockets - Housings |
| Connection Type | Ribbon Cable | With Modem Control | Yes |
Environmental
| Mating Cycles | :200 | Operating Temperature | +125°C |
Similar Parts
5111448-8
te connectivity / amp
Conn IDC Connector M 34 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN PLUG 34POS UNIV I/O W/EARS Ribbon cable conn.male,34 way,2.54mm,blk Headers & Wire Housings 034 UNIV I/O 30DP SLOT Conn IDC Connector M 34 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = Universal I/ONumber of Positions = 34PlugWithout Mating PolarizationTerminate To Ribbon CableSearch Keywords:input/output, paddleboard, paddle board Ribboncableconn.male,34way,2.54mm,blk TE Connectivity AMP-LATCH 系列 2行 34路 2.54mm节距 直角 公 IDC 连接器 , 电缆安装 034 UNIV I/O 30DP SLOT
2-5499206-8
te connectivity / amp
Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 34POS VERT GOLD TE Connectivity AMP LATCH Series 2.54mm Pitch 34 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings UNIV HDR 34P VT BLU LARGE LATCH Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard Profile34 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 34WAY TE Connectivity AMP-LATCH 系列 2.54mm节距 34路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 34P VERT LG LAT B
3-1761605-1
te connectivity / amp
Conn Shrouded Header HDR 34 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A 34POS 30AU Headers & Wire Housings LOW PRO HDR 34P RA Conn Shrouded Header HDR 34 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, R/A, 34WAY TE Connectivity AMP-LATCH 系列 2.54mm节距 34路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 34P RA BLUE
1-1761607-1
te connectivity / amp
Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO R/A .100 34POS AMP-LATCH IDC Header Right Angle 34P Headers & Wire Housings 100X100 HDR 2X017P R/A LOW PROFILE Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 34POS, 2.54MM HEADER,PIN,IDC,AMP-LATCH,34POS,LOWPROFILE,PCB,RIGHTANGLE,BLACK AMP-LATCH 34 Position Through-Hole Dual Row Right Angle Pin Header IDC LOW PRO HDR 34P RA LG LAT
3-1761603-1
te connectivity / amp
Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 34POS 30AU TE Connectivity 3-1761603 Series 2.54mm Pitch 34 Way 2 Row Straight PCB Header, Solder Termination Headers & Wire Housings IDC LOW PRO HDR 34P VERT BLUE Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER,PIN,IDC,AMP-LATCH,34POS,LOWPROFILE,PCB,VERTICAL,BLUE TE Connectivity AMP-LATCH 系列 2.54mm节距 34路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 34P VERT BLUE
5102160-8
te connectivity / amp
Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 34POS .100 GOLD Headers & Wire Housings 34 POS HDR 30AU R/A W/OUT LATCHES Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, Header;UniversalEjectionPinHeader;34;0.100x0.100in.;RightAngle(PCB) Pin header DIN 41651 34P, 5102160-8, TE Connectivity TE Connectivity AMP-LATCH 系列 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 34P RA
3-1761606-1
te connectivity / amp
Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER PIN 34POS VERT GOLD TE Connectivity 3-1761606 Series 2.54mm Pitch 34 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 100X100 HDR 2X017P VRT LPRO Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 34WAY 34waymalestraightfrontlatchheader TE Connectivity AMP-LATCH 系列 2.54mm节距 34路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 IDC LOW PRO HDR 34P VERT LG LA
1-1761606-1
te connectivity / amp
Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR .100 34POS Headers & Wire Housings 100X100 HDR 2X017P VERT LOW PROFILE Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 34POS, 2.54MM HEADER,PIN,IDC,AMP-LATCH,34POS,LOWPROFILE,PCB,VERTICAL,BLACK TE Connectivity AMP-LATCH 系列 2.54mm节距 34路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 34P VERT LG LAT BLK
1-1761688-1
te connectivity / amp
Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings IDC LOW PRO HDR 34P VERT LG LAT Pin and Pinless Headers (AMP-LATCH) CONN HEADER 34POS VERT IDC GOLD Pin and Pinless Headers (AMP-LATCH) Product Highlights:Connector Type = Pin HeaderLow ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, IDC LOW PRO HDR 34P VERT LG LAT
5102161-8
te connectivity / amp
Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 34POS .100 GOLD Headers & Wire Housings A/L UNIV HDR 34P RA Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 34P RA
5103309-7
te connectivity / amp
Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 34POS GOLD Headers & Wire Housings HDR VERT DOUBLE 34P low profile Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 34POS, 2.54MM HEADER,PIN,AMP-LATCH,34POS,2.54X2.54,VERTICAL,LOWPROFILE,PCB,BLACK Pin header DIN 41651 34P, 5103309-7, TE Connectivity A/L LOW PRO HDR 34P VERT BLACK
5499786-8
te connectivity / amp
Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 34POS .100 GOLD TE Connectivity 5499786 Series 2.54mm Pitch 34 Way 2 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 34 POS HDR 15AU R/A W/LONG LATCHES Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, 34waymaler/amountsidelatchheader,1A TE Connectivity AMP-LATCH 系列 2.54mm节距 34路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 34P RA LG LAT
5102321-8
te connectivity / amp
Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 34POS .100 GOLD TE Connectivity 5102321 Series 2.54mm Pitch 34 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 100X100 HDR 2X017P VRT EJE Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 34POS, 2.54MM 034UNIVHDRSP4S30DPSTDL1 TE Connectivity AMP-LATCH 系列 2.54mm节距 34路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 34P VERT LG LAT

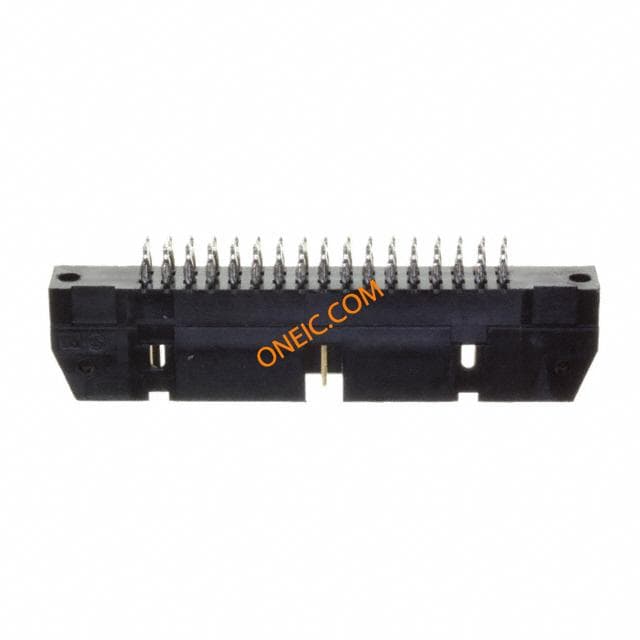

1-1658694-1
te connectivity / amp
Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 34POS .100 GOLD Headers & Wire Housings 34P UNIV HDR ACT PIN Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 34P ACT PIN
5102162-8
te connectivity / amp
Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 34POS .100 GOLD Conn Ejector Header HDR 34 POS 2.54mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard ProfileNumber of Positions = 34Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 34P RA
5499206-8
te connectivity / amp
Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 34POS .100 GOLD Headers & Wire Housings 34 POS HDR 30AU W/LONG LATCHES Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 342.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,34POS,2.54X2.54,PCB,VERTICAL A/L UNIV HDR 34P VERT LG LAT
1-1761681-1
te connectivity / amp
Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 34POS VERT IDC GOLD TE Connectivity 1-1761681 Series 2.54mm Pitch 34 Way 2 Row Straight PCB Header, Solder Termination Headers & Wire Housings IDC LOW PRO HDR 34P VERT HT BL Conn Shrouded Header HDR 34 POS 2.54mm Solder ST Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, Shroudedhdr,male,34way,2.54mm,PCB,180° TE Connectivity AMP-LATCH 系列 2.54mm节距 34路 (2排) 直 PCB 针座, 焊接端接 , 通孔 IDC LOW PRO HDR 34P VERT HT BLACK

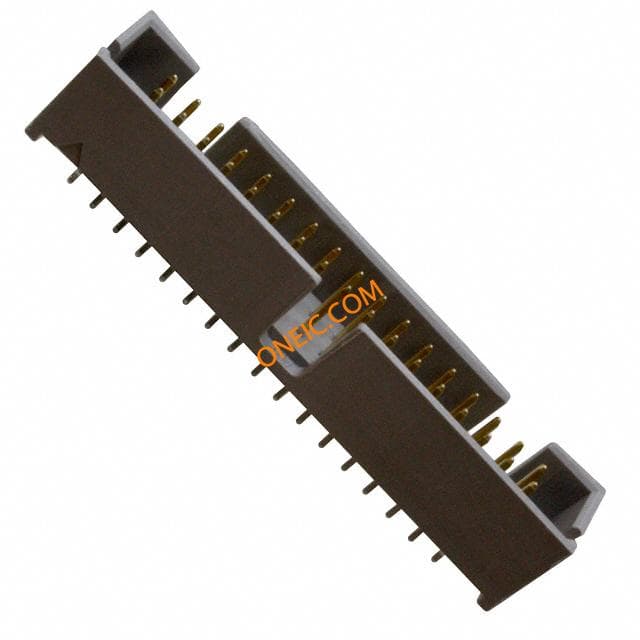

5104338-7
