5102154-8
| Manufacturer | |
| Description | Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 34POS .100 GOLD Headers & Wire Housings 34 POS HDR 30AU W/OUT LATCHES Conn Ejector Header HDR 34 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard Profile34 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 34POS, 2.54MM 034UNIVHDRSP4S30DPSTD Pin header DIN 41651 34P, 5102154-8, TE Connectivity A/L UNIV HDR 34P VERT |
| Category |
Business
| Tradename | AMP-LATCH | Product Category | Headers & Wire Housings |
| Standard Package | Trays | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 00000000 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE - AMP-LATCH Series | Current Rating (Max) | 1/Contact A |
| Voltage - Supply (Min) | 250VAC | ||
Mechanical
| Color | Black | Depth | 8.53 mm |
| Pitch | 2.54 mm | Height | 13.94 mm |
| Weight | 0.005 | Packaging | Bulk |
| Shrouding | Yes | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Male Pin |
| Polarization | Center, Dual Polarizing Bar, Military | 2nd Connector | Without |
| Contact Shape | Square | Housing Color | Black |
| Mounting Type | Vertical | Connector Type | Universal Ejection Pin Headers |
| Contact Finish | Gold Over Palladium Nickel|Gold Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 2 | Package / Case | 4-Sided |
| Board Thickness | 1.57 [0.062] | Profile (W x H) | Standard |
| Contact Material | Brass/Phos Bronze | Housing Material | Thermoplastic |
| Length - Overall | 62.48 mm | Size / Dimension | 0.64 [.025] |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Mating Orientation | With | Number of Contacts | 34 |
| Contact Termination | :Through Hole Vertical | Number of Positions | 34 |
| Center Contact Material | 2.54 x 2.54 [.100 x .100] | Contact Length - Mating | 0.240" (6.10mm) |
| Termination Post Length | 2.79 [0.110] | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | Ejector Header | Gender | HDR |
| Series | AMP-LATCH | Product Type | Headers |
| Other Specifications | Without | Number of Positions Loaded | All |
Environmental
| Temperature Rating | Standard | Operating Temperature | -65C to 105C |
Documents & Media
Similar Parts
746383-1
te connectivity / amp
Connector Accessories Mounting Bolt Accessories (AMP-LATCH) CONN MOUNTING SCREW Headers & Wire Housings A/L MT SCR Connector Accessories Mounting Bolt Product Highlights:Mounting BoltSearch Keywords:ribbon cable connector system, hardware, Mounting Header Screw A/L MT SCREW
1658622-8
te connectivity / amp
Conn IDC Connector RCP 34 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 34POS W/POL GOLD AMP-LATCH Novo IDC Receptacle 34P Headers & Wire Housings .1CL IDC REC 2X17P C&M 30AU Conn IDC Connector RCP 34 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 34ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 34POS, 2.54MM ReceptacleswithRecessedCovers,Center&MilitaryPolarized,34pos. 34 NOVO MIL/CTR 30DP,LEAD FREE
1658620-8
te connectivity / amp
Conn IDC Connector F 34 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 34POS 15 GOLD Headers & Wire Housings MLTRY PLRZD RECPT 34 NOVO Conn IDC Connector F 34 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 34ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board CONNECTOR,RECEPTACLE,NOVA,AMP-LATCH,34POSITION,WITHMATINGPOLARIZATION 34 NOVO MIL 15DP, LEAD FREE
102320-1
te connectivity / amp
Connector Accessories Latch Thermoplastic Black Accessories (AMP-LATCH) LOCK EJECTOR HOOKS FOR HDR LONG Latch Long Black AmpLatch Headers & Wire Housings UNIVERSAL HDR LATCH Connector Accessories Latch Thermoplastic Black Product Highlights:LatchSearch Keywords:ribbon cable connector system, hardware, EJECTOR LATCH, UNIVERSAL HEADER HeaderLatches,formatingreceptacleswithstrainrelief TE Connectivity 闩锁, 使用于AMPLATCH Novo 系列 UNIVERSAL HEADER LATCH
1658621-8
te connectivity / amp
Conn IDC Connector F 34 POS 2.54mm IDT RA Cable Mount Headers & Wire Housings CNTR PLRZD RECPT 34P NOVO Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 34POS W/POL 15 GOLD 34way polarised skt w/o strain relief Conn IDC Connector F 34 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 34ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board SOCKET, NOVOLATCH, 34WAY Connector,Receptacle;Novo;34;Gold(15);Tin-Lead;0.100in.x0.100in. Plug; IDC; female; PIN:34; IDC; for ribbon cable; 1.27mm Multipole socket DIN 41651 34P, 1658621-8, TE Connectivity TE Connectivity AMP-LATCH Novo 系列 2行 34路 2.54mm节距 直角 电缆安装 母 IDC 连接器 34 NOVO MIL/CTR 15DP,LEAD FREE
1658623-8
te connectivity / amp
Conn IDC Connector RCP 34 POS 2.54mm IDT RA Cable Mount Tube Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 34POS GOLD AMP-LATCHConnect,ReceptacleforRibbonCbl Headers & Wire Housings .1CL IDC REC 2X17P MIL 30AU Conn IDC Connector RCP 34 POS 2.54mm IDT RA Cable Mount Tube Product Highlights:Connector Type = NOVONumber of Positions = 34ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 34POS, 2.54MM AMP-LATCHConnector,ReceptacleforRibbonCable,NOVO,34Positions 34 NOVO MIL 30DP, LEAD FREE
102312-1
te connectivity / amp
Connector Accessories Latch Thermoplastic Black Accessories (AMP-LATCH) LOCK EJECTOR HOOKS FOR HDR SHORT Latch accessory black Amp-Latch Headers & Wire Housings UNIVERSAL HDR LATCH Connector Accessories Latch Thermoplastic Black Product Highlights:LatchSearch Keywords:ribbon cable connector system, hardware, HeaderLatches,formatingreceptacleswithoutstrainrelief Ejector/latchP, 102312-1, TE Connectivity TE Connectivity 应力释放支架, 使用于 AMPLATCH Connector 带状电缆 UNIVERSAL HEADER LATCH
487223-9
te connectivity / amp
Conn Housing RCP 34 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors 034 HOUSING FFC RCPT 100CL DR FFC & FPC Connectors 34 HSG RCPT 100CL DR Flexible Film Connectors Product Highlights:Housing2.54 mm CenterlineConnector Type = Standard34 PositionsNumber of Rows = DualSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector

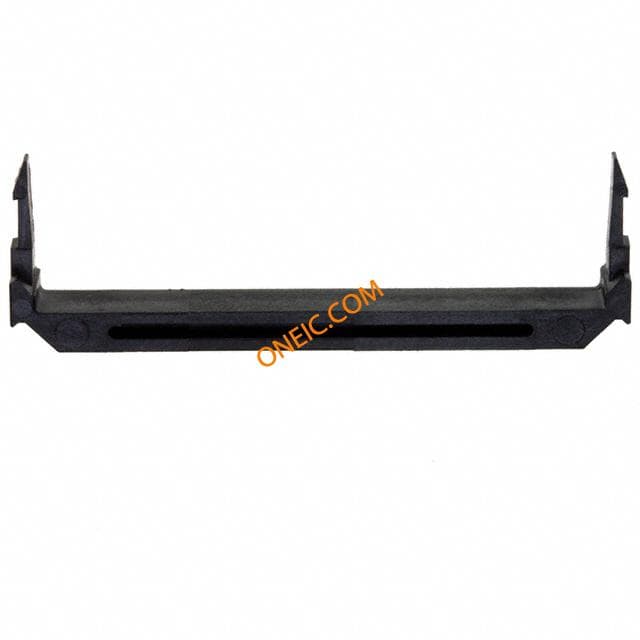

499252-6
te connectivity / amp
Connector Accessories 34 POS Receptacle Flat Cable Connector Strain Relief Thermoplastic Black Accessories (AMP-LATCH) STRAIN RELIEF 34POS SOCKET CONN 34 way IDC strain relief Headers & Wire Housings STRAIN RELIEF 34POS Connector Accessories 34 POS Receptacle Flat Cable Connector Strain Relief Thermoplastic Black Product Highlights:Strain ReliefNumber of Positions = 34Search Keywords:input/output, paddleboard, paddle board StrainRelief,CableConnector;34;Thermoplastic;UL94V-0;Black Strain relief 34P, 499252-6, TE Connectivity TE Connectivity 34路 应力释放支架, 使用于 AMP Novo 系列 034 STRAIN RELIEF A-L RCPT
1825851-1
te connectivity / amp
Connector Accessories Ejector Headr Locking Latch Polybutylene Terephthalate Black Headers & Wire Housings EJECTOR LATCH AMPMODU Mod IV, V CONN LATCH LOCKING FOR .100 HDRS Connector Accessories Ejector Headr Locking Latch Polybutylene Terephthalate Black Product Highlights:Locking LatchSearch Keywords:board to board, AMPMODU, pcb connectors, AMPLATCH UNIVERSAL HEADER LOCKING LATCH TE Connectivity PCB 针座锁定闩锁 AMPMODU MOD IV LATCH for AMPLA
499991-2
te connectivity / amp
Connector Accessories Snap-In Polarizer Thermoplastic Black Bag Accessories (AMP-LATCH) CONN POLARIZER SNAP-IN Connector Accessories Snap-In Polarizer Thermoplastic Black Bag Product Highlights:Snap-In PolarizerSearch Keywords:input/output, paddleboard, paddle board SNAP-IN POLARIZER, AMP-LATCH HEADER POLARIZER,SNAP-IN,AMP-LATCH,BLACK TE Connectivity AMP-LATCH系列 军用偏振器, 使用于薄型管座 POLARIZER AMP-LATCH 50/BAG

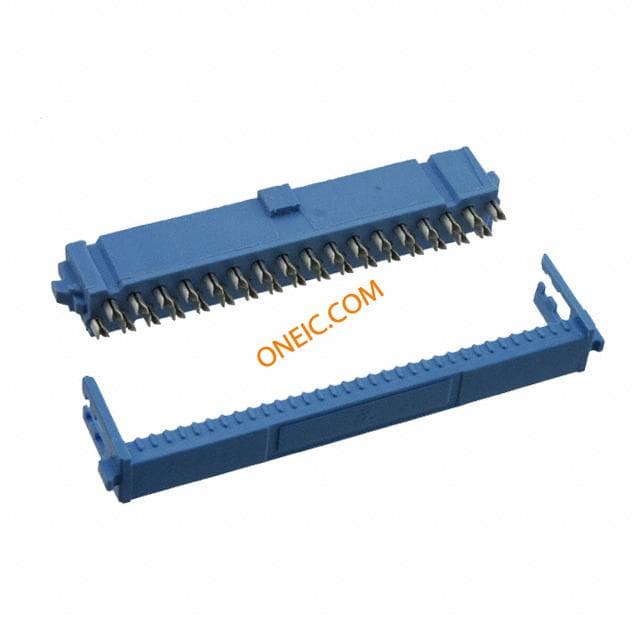

1-1658526-9
