5102154-1
| Manufacturer | |
| Description | Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 10POS .100 GOLD Headers & Wire Housings 10 POS HDR 30AU W/OUT LATCHES Conn Ejector Header HDR 10 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard Profile10 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 10POS, 2.54MM Header;UniversalEjectionPinHeader;10;0.100x0.100in.;Vertical(PCB) Pin header DIN 41651 10P, 5102154-1, TE Connectivity TE Connectivity AMP-LATCH 系列 2.54mm节距 10路 (2排) 直 PCB 针座, 焊接端接 , 通孔 A/L UNIV HDR 10P VERT |
| Category |
Business
| Tradename | AMP-LATCH | Product Category | Headers & Wire Housings |
| Standard Package | Trays | Factory Pack Quantity | 90 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE - AMP-LATCH Series | Current Rating (Max) | 1/Contact A |
| Voltage - Supply (Min) | 250VAC | ||
Mechanical
| Color | Black | Depth | 8.53 mm |
| Pitch | 2.54 mm | Height | 13.94 mm |
| Weight | 0.003 | Packaging | Bulk |
| Shrouding | Yes | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Male Pin |
| Pitch - Post | 2.54 x 2.54 [.100 x .100] | Polarization | Center, Dual Polarizing Bar, Military |
| 2nd Connector | Without | Contact Shape | Square |
| Housing Color | Black | Mounting Type | Vertical |
| Connector Type | Universal Ejection Pin Headers | Contact Finish | Gold Over Palladium Nickel|Gold Over Nickel |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Package / Case | 4-Sided | Board Thickness | 1.57 [0.062] |
| Profile (W x H) | Standard | Contact Material | Brass/Phos Bronze |
| Housing Material | Thermoplastic | Length - Overall | 32 mm |
| Size / Dimension | 0.64 [.025] | Termination Style | Through Hole |
| 1st Contact Gender | Pin (Male) | Mating Orientation | With |
| Number of Contacts | 10 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 10 | Contact Length - Mating | 0.240" (6.10mm) |
| Termination Post Length | 2.79 [0.110] | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Note | Pin headers in 10- and 14-position sizes have only one slot for snap-in polariz | Type | Ejector Header |
| Gender | HDR | Series | AMP-LATCH |
| Product Type | Headers | Other Specifications | Without |
| Number of Positions Loaded | All | ||
Environmental
| Temperature Rating | Standard | Operating Temperature | -65C to 105C |
Documents & Media
Similar Parts
746383-1
te connectivity / amp
Connector Accessories Mounting Bolt Accessories (AMP-LATCH) CONN MOUNTING SCREW Headers & Wire Housings A/L MT SCR Connector Accessories Mounting Bolt Product Highlights:Mounting BoltSearch Keywords:ribbon cable connector system, hardware, Mounting Header Screw A/L MT SCREW
102320-1
te connectivity / amp
Connector Accessories Latch Thermoplastic Black Accessories (AMP-LATCH) LOCK EJECTOR HOOKS FOR HDR LONG Latch Long Black AmpLatch Headers & Wire Housings UNIVERSAL HDR LATCH Connector Accessories Latch Thermoplastic Black Product Highlights:LatchSearch Keywords:ribbon cable connector system, hardware, EJECTOR LATCH, UNIVERSAL HEADER HeaderLatches,formatingreceptacleswithstrainrelief TE Connectivity 闩锁, 使用于AMPLATCH Novo 系列 UNIVERSAL HEADER LATCH
487223-1
te connectivity / amp
Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount Flexible Film Connectors 010 HOUSING FFC RCPT 100CL DR FFC & FPC Connectors REC 2X05P 100X100 HSG Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount Product Highlights:Housing2.54 mm CenterlineConnector Type = StandardNumber of Positions = 10Number of Rows = DualSearch Keywords:Circuitry-to-Board, cable to board, board to board, FFC, flat flexible cable, flat flex wire, Easy Mating Connector 10 Position Dual Row 2.54 mm Pitch Cable to Board Receptacle Housing
1658527-4
te connectivity / amp
Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount 622-1041LF FEM SOCKET Ribbon Cable Connectors (AMP-LATCH) CONN RCPT 10POS .100 W/STR RELF 10 way IDC bump polarised socket Headers & Wire Housings FSKT IDC S 10 30AU Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = 622 SeriesNumber of Positions = 10ReceptacleMating Polarization Method = Center & MilitaryWith Mating Polarization RECEPTACLE, S/RELIEF, IDC, 2.54MM, 10WAY CONNECTOR,RECEPTACLE,AMP-LATCH622,10POSITION,MATINGPOLARIZATION Multipole socket DIN 41651 10P, 1658527-4, TE Connectivity TE Connectivity AMP-LATCH 622 系列 2行 10路 2.54mm节距 直角 电缆安装 母 IDC 连接器 622-1041LF FEM SOCKT,LEAD FREE
102312-1
te connectivity / amp
Connector Accessories Latch Thermoplastic Black Accessories (AMP-LATCH) LOCK EJECTOR HOOKS FOR HDR SHORT Latch accessory black Amp-Latch Headers & Wire Housings UNIVERSAL HDR LATCH Connector Accessories Latch Thermoplastic Black Product Highlights:LatchSearch Keywords:ribbon cable connector system, hardware, HeaderLatches,formatingreceptacleswithoutstrainrelief Ejector/latchP, 102312-1, TE Connectivity TE Connectivity 应力释放支架, 使用于 AMPLATCH Connector 带状电缆 UNIVERSAL HEADER LATCH
1658620-1
te connectivity / amp
Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 10POS 15 GOLD Connector,Receptacle,Novo,10Position Headers & Wire Housings MLTRY PLRZD RECPT 10 NOVO Conn IDC Connector F 10 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 10ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 10POS, 2.54MM Connector,Receptacle;Novo;10Position,Gold(15),.100X.100 TE Connectivity AMP-LATCH Novo 系列 2行 10路 2.54mm节距 母 IDC 连接器 , 电缆安装 10 NOVO MIL 15DP, LEAD FREE
1658622-1
te connectivity / amp
Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 10POS W/POL GOLD Receptacle 10 way socket Amp-Latch Headers & Wire Housings 10P IDC RECEPTACLE DUAL ROW Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 10ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board CONN, RECEPT. 10, RIBBON CRIMP AMP-LATCHNOVOReceptacle,10Pos.,Center&MilitaryPolarization,.100X.100 TE Connectivity AMP-LATCH Novo 系列 2行 10路 2.54mm节距 母 IDC 连接器 , 电缆安装 10 NOVO MIL/CTR 30DP,LEAD FREE
1825851-1
te connectivity / amp
Connector Accessories Ejector Headr Locking Latch Polybutylene Terephthalate Black Headers & Wire Housings EJECTOR LATCH AMPMODU Mod IV, V CONN LATCH LOCKING FOR .100 HDRS Connector Accessories Ejector Headr Locking Latch Polybutylene Terephthalate Black Product Highlights:Locking LatchSearch Keywords:board to board, AMPMODU, pcb connectors, AMPLATCH UNIVERSAL HEADER LOCKING LATCH TE Connectivity PCB 针座锁定闩锁 AMPMODU MOD IV LATCH for AMPLA
499991-2
te connectivity / amp
Connector Accessories Snap-In Polarizer Thermoplastic Black Bag Accessories (AMP-LATCH) CONN POLARIZER SNAP-IN Connector Accessories Snap-In Polarizer Thermoplastic Black Bag Product Highlights:Snap-In PolarizerSearch Keywords:input/output, paddleboard, paddle board SNAP-IN POLARIZER, AMP-LATCH HEADER POLARIZER,SNAP-IN,AMP-LATCH,BLACK TE Connectivity AMP-LATCH系列 军用偏振器, 使用于薄型管座 POLARIZER AMP-LATCH 50/BAG

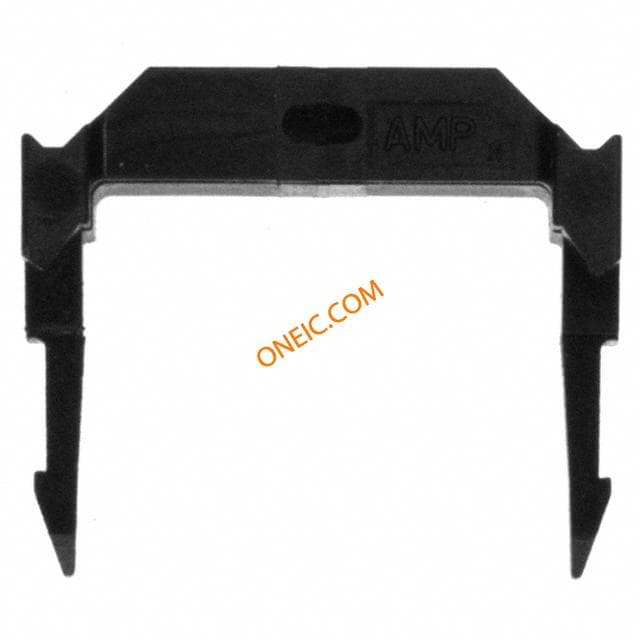

499252-5
te connectivity / amp
Connector Accessories 10 POS Receptacle Flat Cable Connector Strain Relief Thermoplastic Black Accessories (AMP-LATCH) STRAIN RELIEF 10POS SOCKET CONN 10 way IDC strain relief Headers & Wire Housings STRAIN RELIEF 10POS Connector Accessories 10 POS Receptacle Flat Cable Connector Strain Relief Thermoplastic Black Product Highlights:Strain ReliefNumber of Positions = 10Search Keywords:input/output, paddleboard, paddle board STRAIN RELIEF, 10WAY StrainRelief,CableConnector;10;Thermoplastic;UL94V-0;Black Strain relief 10P, 499252-5, TE Connectivity TE Connectivity 10路 应力释放支架, 使用于 AMP-LATCH NOVO 系列 010 STRAIN RELIEF A-L RCPT

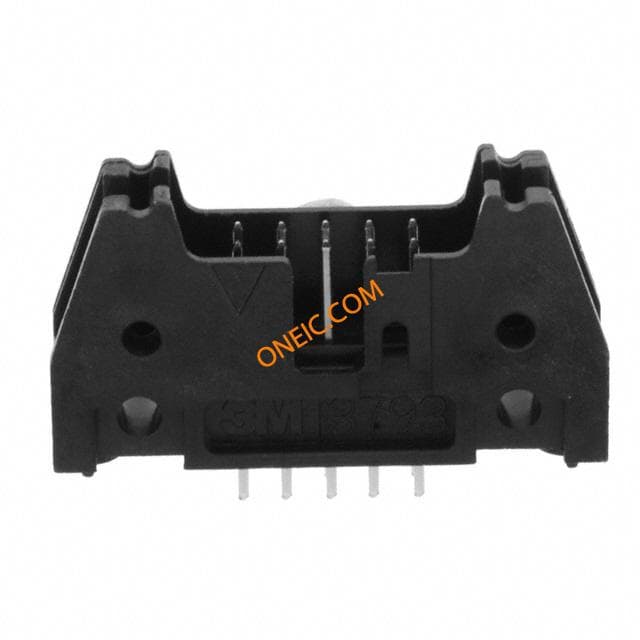

N3793-6002RB
