点击放大查看
5-747904-2
| Manufacturer | |
| Description | Conn D-Subminiature PIN 9 POS 2.77mm Solder Cup ST Panel Mount 9 Terminal 1 Port D-Sub Standard Connectors 9P PLUG TIN Standard Cable Connectors CONN D-SUB PLUG 9POS SLD CUP AU AMPLIMITE HD-20 d-sub cable plug,9 pin Conn D-Subminiature PIN 9 POS 2.77mm Solder Cup ST Panel Mount 9 Terminal 1 Port Product Highlights:ConnectorProduct Series = HD-20 (Solder Cup)Number of Positions = 9PlugWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONNECTOR, D-SUB, PLUG, SOLDER, 9WAY Conn;D-Sub;CablePlug;9Pos;STR;HD-20Series;20AWG;FullMetalShell Plug; D-Sub; HD 20; PIN:9; male; soldering; for cable; gold flash D-Sub plug 9P, 5-747904-2, TE Connectivity TE Connectivity Amplimite HD-20 系列 面板安装 DB9 9 路 焊接 D-sub 连接器 插头 , 250 V 交流, 3A 9 Plug Solder Cup, Gold Flash, |
| Category |
Business
| Product Category | D-Sub Standard Connectors | Standard Package | Trays |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Standards | Insert,UL94V-0 | Tariff No | 85369010 |
| Rad Hardened | No | Leadfree Defin | Wave solder capable to 240°C |
| Approval Agency | ULRecognized,ULListedandCSACertified | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Range deg/s | :TE CONNECTIVITY - Amplimite HDE-20 Series | Voltage Rating | 250V |
| Voltage - Working | :250V | Current Rating (Max) | 3A |
| Voltage - Input (Min) | 250VAC | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | Black | Depth | 15.4mm |
| Pitch | 2.77 mm | Width | 12.5mm |
| Height | 12.5 mm | Length | 30.8mm |
| Weight | 0.004 | Packaging | Tray |
| Shell Size | 1 | Wire Gauge | 20 |
| Termination | Solder Cup | Contact Size | 20 |
| Contact Type | Solder Cup | 2nd Connector | With |
| Mounting Type | Panel Mount | Shell Plating | Tin |
| Angle of Throw | Straight | Connector Type | Solder |
| Contact Finish | Gold | Flange Feature | Housing/Shell (Unthreaded) |
| Housing Finish | Tin | Mounting Style | Panel |
| Number of Rows | 2 | Plating - Body | :Tin |
| Shell Material | Steel | Connector Style | D-Sub |
| Insert Material | Thermoplastic | Locking Feature | Mounting Holes |
| Material - Body | :Steel | Contact Material | Phosphor Bronze |
| Housing Material | Polybutylene Terephthalate | Length - Overall | 30.8 mm |
| Package Quantity | 1 | Primary Material | D-Subminiature |
| Size / Dimension | 30.8 x 12.5 x 15.4mm | Connector - Cable | plug |
| Grounding Indents | With | Termination Style | Solder |
| 1st Contact Gender | PIN | Number of Contacts | 9 |
| Contact Termination | :Solder | Number of Positions | 9 |
| Shell Size - Insert | Steel | Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | 8µin (0.20µm) | Wire Gauge or Range - mm2 | 0.5 - 0.6 [20] |
| Contact Material - Plating | gold flash | Shell Size, Connector Layout | 1 (DE, E) |
Product Info
| Spg | 1 | Type | D-Subminiature |
| Grade | Standard | Gender | PIN |
| Series | HD-20 | Features | Grounding Indents |
| Manufacturer | HD-20 | Product Type | Connector |
| Adapter Series | HD 20 | Number of Ports | 1 |
| Number of Units | 1 | Application Specifics | Commercial |
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
Documents & Media
Similar Parts
5747844-4
te connectivity / amp
Conn D-Subminiature SKT 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Tray D-Sub Standard Connectors RECP FRNT MTL SHL 9P Standard Board Mount Connectors CONN D-SUB RCPT R/A 9POS 30GOLD AMPLIMITE HD-20 d-sub PCB socket, 9 way Conn D-Subminiature SKT 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Tray Product Highlights:Number of Positions = 9ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub SOCKET, D, PCB, 9WAY Conn;D-Sub;PCBSocket;9Pos;RTAng;HD-20Series;20AWG;FrontMetalShell Socket; D-Sub; HD 20; PIN:9; female; angled 90°; THT; UNC4-40 D-Sub female 9P, 5747844-4, TE Connectivity TE Connectivity Amplimite HD-20 系列 2.74mm 节距 9 路 直角 通孔安装 PCB D-sub 连接器 插座 09 MSFL RCPT RA 318 (IN,FM,BL)
5747150-4
te connectivity / amp
Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors 09 RCPT SP/FMS STD Standard Board Mount Connectors CONN D-SUB RECPT STR 9POS PCB AU Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:Number of Positions = 9ReceptaclePCB Mount Angle = VerticalProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 9POS, RCPT 09 RCPT SP/FMS STD
5-747905-2
te connectivity / amp
Conn D-Subminiature SKT 9 POS 2.77mm Solder Cup ST Panel Mount 9 Terminal 1 Port D-Sub Standard Connectors 9P SOCKET ZINC Standard Cable Connectors CONN D-SUB RCPT 9POS SLD CUP AU AMPLIMITE HD-20 d-sub cable socket,9 way Conn D-Subminiature SKT 9 POS 2.77mm Solder Cup ST Panel Mount 9 Terminal 1 Port Product Highlights:ConnectorProduct Series = HD-20 (Solder Cup)Number of Positions = 9ReceptacleWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub SOCKET, D, SOLDER, 9WAY Conn;D-Sub;CableSocket;9Pos;STR;HD-20Series;20AWG;FullMetalShell Plug; D-Sub; HD 20; PIN:9; female; soldering; for cable; gold flash D-sub socket 9P, 5-747905-2, TE Connectivity TE Connectivity Amplimite HD-20 系列 面板安装 DB9 9 路 焊接 D-sub 连接器 插座 , 250 V 交流, 3A 9 Rcpt Solder Cup, Gold Flash,
5745183-2
te connectivity / amp
Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors RECP FULL MTL SHL 9P mounting holes Standard Board Mount Connectors CONN D-SUB RCPT STR 9POS T/H AU Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:9 PositionsHousing Gender = ReceptaclePCB Mount Angle = VerticalProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 9POS, RCPT Conn;D-Sub;PCBSocket;9Pos;STR;HD-20Series;20AWG;FullMetalShell 09 RCPT SP/MS STD
106505-2
te connectivity / amp
Conn D-Subminiature SKT 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors 9P.HDP20 REC.ASSY. Standard Board Mount Connectors CONN RCPT 9POS R/A BOARDLOCK MET AMPLIMITE HD-20 d-sub PCB socket, 9 way Standard Board Mount Connectors Product Highlights:Number of Positions = 9ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub AMPLIMITEHD-20d-subPCBsocket,9way TE Connectivity Amplimite HD-20 系列 2.74mm 节距 9 路 直角 通孔安装 欧式印刷电路板 D-Sub 连接器 插座 9P.HDP20 REC.ASSY.
205866-1
te connectivity / amp
Conn D-Subminiature SKT 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors HD-20 9P SOCKET 280 Standard Board Mount Connectors CONN D-SUB RECPT R/A 9POS PCB AU Conn D-Subminiature SKT 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Product Highlights:Number of Positions = 9ReceptaclePCB Mount Angle = Right AngleProduct Series = HDP-20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub
5-338313-2
te connectivity / amp
Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors 9POS.HD-20 REC.ASSY Standard Board Mount Connectors 9POS.HD-20 REC.ASSY Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:Number of Positions = 9ReceptaclePCB Mount Angle = VerticalProduct Series = HDP-20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub SOCKET, D, B/L & 3.1MM, 9WAY D-Sub female 9P, 5-338313-2, TE Connectivity
5-747905-5
te connectivity / amp
Conn D-Subminiature SKT 9 POS 2.77mm Solder Cup ST Panel Mount 9 Terminal 1 Port D-Sub Standard Connectors 9 Rcpt Solder Cup 9P Rcpt Solder Cup Standard Cable Connectors CONN D-SUB RCPT 9POS SLD CUP AU Conn D-Subminiature SKT 9 POS 2.77mm Solder Cup ST Panel Mount 9 Terminal 1 Port Product Highlights:ConnectorProduct Series = HD-20 (Solder Cup)Number of Positions = 9ReceptacleWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub 9 Rcpt Solder Cup, 30 gold, Ro
205734-7
te connectivity / amp
Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors 09P RCPT VERT SZ 1 Standard Board Mount Connectors CONN RCPT VERT 9 POS GOLD PCB Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:9 PositionsWith ContactsHousing Gender = ReceptaclePCB Mount Angle = VerticalProduct Series = HDP-20Search Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 9POS, RCPT 09 RCPT SP/MS STD
745183-7
te connectivity / amp
Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors HD-20 9P SOCKET 459 Standard Board Mount Connectors CONN D-SUB RCPT STR 9POS T/H AU Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:9 PositionsConnector Style = ReceptaclePCB Mount Angle = VerticalProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 09 RCPT SP/MS STD
747150-4
te connectivity / amp
Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors RECP FRNT MTL SHL 9P standard mntg holes Standard Board Mount Connectors CONN D-SUB RECPT STR 9POS PCB AU Conn D-Subminiature SKT 9 POS 2.74mm Solder ST Thru-Hole 9 Terminal 1 Port Product Highlights:9 PositionsReceptaclePCB Mount Angle = VerticalProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 09 RCPT SP/FMS STD
6-788796-7
te connectivity / amp
Conn D-Subminiature SKT 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Tray D-Sub Standard Connectors 9P RA HTMSFL 318 RCPT Standard Board Mount Connectors CONN D-SUB RCPT 9POS R/A GOLD 9P RA HTMSFL 318 RCPT 9P RA HTMSFL 318 RCPT Search Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub
5745781-2
te connectivity / amp
Conn D-Subminiature SKT 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors DSUB E09S RA318 Standard Board Mount Connectors CONN D-SUB RCPT R/A 9POS 30GOLD AMPLIMITE HD-20 Socket Right Angle 9P Conn D-Subminiature SKT 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Product Highlights:Number of Positions = 9ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 9POS, RCPT Conn;D-Sub;PCBSocket;9Pos;RTAng;HD-20Series;20AWG;FrontMetalShell 09 MSFL RCPT RA 318 (FM)
5788796-3
te connectivity / amp
Conn D-Subminiature SKT 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Tube D-Sub Standard Connectors 9P HTMSFL ASSY RA 318 Standard Board Mount Connectors CONN D-SUB RCPT 9POS R/A GOLD Conn D-Subminiature SKT 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Tube Product Highlights:Number of Positions = 9ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 9POS, RCPT 09 HTMSFL ASSY RA 318 (IN, BL)
5205866-1
te connectivity / amp
Conn D-Subminiature SKT 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors 09P RCPT RA/MS STD Standard Board Mount Connectors CONN D-SUB RECPT R/A 9POS GOLD Standard Board Mount Connectors Product Highlights:Number of Positions = 9ReceptaclePCB Mount Angle = Right AngleProduct Series = HDP-20Without Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub TE Connectivity AMPLIMITE HDP-20 系列 2.743mm 节距 9 路 直角 通孔安装 PCB D-sub 连接器 插座 09 RCPT RA/MS STD
5745438-4
te connectivity / amp
Conn D-Subminiature SKT 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors 09 RCPT RA HD 20 Standard Board Mount Connectors CONN D-SUB 9POS FEMALE R/A Conn D-Subminiature SKT 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Product Highlights:Number of Positions = 9ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 09 RCPT RA/MS 454
5788796-1
te connectivity / amp
Conn D-Subminiature SKT 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Tray D-Sub Standard Connectors DSUB E09S RA318 CONN D-SUB RCPT 9POS R/A GOLD AMPLIMITE HD-20 d-sub PCB socket, 9 way Conn D-Subminiature SKT 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Tray Product Highlights:Number of Positions = 9ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 9POS, RCPT Conn;D-Sub;PCBSocket;9Pos;RTAng;HD-20Series;20AWG;FrontMetalShell TE Connectivity Amplimite HD-20 系列 2.74mm 节距 9 路 直角 通孔安装 PCB D-sub 连接器 插座 09 HTMSFL ASSY RA 318 (IN,BL)
5747852-4
te connectivity / amp
Conn D-Subminiature SKT 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port D-Sub Standard Connectors 09 MSFL RCPT RA 478 (IN FM BL) Standard Board Mount Connectors CONN D-SUB RCPT 9POS R/A PCB Conn D-Subminiature RCP 9 POS Solder RA Thru-Hole 9 Terminal 1 Port Conn D-Subminiature SKT 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Product Highlights:Number of Positions = 9ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub 09 MSFL RCPT RA 478 (IN,FM,BL)

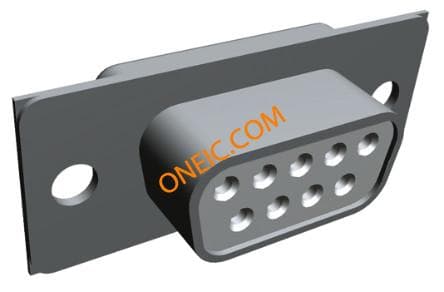

8-1393483-7
