ONEIC.US
5747844-4

点击放大查看

5747844-4

Manufacturer
TE Connectivity Ltd.
Description
Conn D-Subminiature SKT 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Tray D-Sub Standard Connectors RECP FRNT MTL SHL 9P Standard Board Mount Connectors CONN D-SUB RCPT R/A 9POS 30GOLD AMPLIMITE HD-20 d-sub PCB socket, 9 way Conn D-Subminiature SKT 9 POS 2.74mm Solder RA Thru-Hole 9 Terminal 1 Port Tray Product Highlights:Number of Positions = 9ReceptaclePCB Mount Angle = Right AngleProduct Series = HD 20With Mating Connector LockSearch Keywords:Subminiature D, AMPLIMITE, MIL-C-24308, DIN 41652, Mark II, Mark III, DIN 41494, box to box, military/aerospace, 13C3, 3C3, HD-22, ACTION PIN, d-sub, d sub, dsub SOCKET, D, PCB, 9WAY Conn;D-Sub;PCBSocket;9Pos;RTAng;HD-20Series;20AWG;FrontMetalShell Socket; D-Sub; HD 20; PIN:9; female; angled 90°; THT; UNC4-40 D-Sub female 9P, 5747844-4, TE Connectivity TE Connectivity Amplimite HD-20 系列 2.74mm 节距 9 路 直角 通孔安装 PCB D-sub 连接器 插座 09 MSFL RCPT RA 318 (IN,FM,BL)
Category
Connector SolutionsD-Sub ConnectorsD-Sub Connectors
对参数有疑问？问 AI 助手

Business

Product CategoryD-Sub Standard ConnectorsStandard PackageTrays
Factory Pack Quantity1

Compliance

RoHSRoHS CompliantEU RoHSCompliant
Tariff No85369010Rad HardenedNo
Leadfree DefinWave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cRoHSELV ComplianceRoHS compliant, ELV compliant
Material Flammability RatingUL 94V-0

Electrical

GroundingWithoutRange deg/s:TE CONNECTIVITY - Amplimite HD-20 Series
Voltage Rating125VCurrent Rating (Max)6A

Mechanical

ColorBlackDepth18.79mm
Pitch2.74 mmWidth12.54mm
Height12.54 mmLength30.81mm
SealedNoWeight0.001
PlatingTinMaterial:Steel
PackagingTrayShell Size1
Orientationangled 90°TerminationSolder
Contact TypeSignal2nd ConnectorWith
Contact ShapeRoundMounting TypeThrough Hole
Shell PlatingTinConnector TypeReceptacle, Female Sockets
Contact FinishGoldFlange FeatureHousing/Shell (4-40)
Grounding TypeWithMaterial - TipTin
Mounting StyleThrough HoleNumber of Rows2
Plating - Body:TinShell MaterialSteel
Board Thickness0.062 [1.57]Connector StyleD-Sub
Insert MaterialZincLocking FeatureThreaded Insert, 4-40 UNC
Material - Body:MetalMaterial FinishClear Chromate
Profile (W x H)StandardContact MaterialPhosphor Bronze
Housing MaterialThermoplasticLength - Overall30.81 mm
Package Quantity1Panel Mount TypeWithout
Size / Dimension0.66 [.026]Connector - Cablesocket
Grounding IndentsWithoutOutline L x W x H8.08 [.318]
Termination StyleSolder1st Contact GenderSKT
Color - ConnectorsNoneNumber of Contacts9
Contact Termination:SolderNumber of Positions9
Plating - Thickness0.76µmShell Size - InsertFront Metal Shell
Mounting Hole Diameter3.18 [.125]Shell Material, FinishSteel, Tin Plated
Thread/Screw/Hole SizeUNC4-40Termination Post Length3.18 [0.125]
Contact Finish Thickness30µin (0.76µm)Contact Material - Platinggold plated
Material - Housing & Prism:ThermoplasticShell Size, Connector Layout1 (DE, E)

Product Info

Spg1NoteAll receptacles are preloaded with size 20 DF posted socket contacts
TypeD-SubminiatureGenderSKT
SeriesHD-20FeaturesBoard Lock, Ground Strap
CAD Drawing3D CAD ModelManufacturerAMP
Adapter SeriesHD 20Number of Ports1
Number of Units1

Environmental

Operating Temperature-55°C ~ 105°C

Documents & Media

Online Document
5747844-4?RQPN=5747844-4

Similar Parts

5-747904-2

5-747904-2

te connectivity / amp

Conn D-Subminiature PIN 9 POS 2.77mm Solder Cup ST Panel Mount 9 Terminal 1 Port D-Sub Standard Connectors 9P PLUG TIN Standard Cable Connectors CONN D-SUB PLUG 9POS SLD CUP AU AMPLIMITE HD-20 d-sub cable plug,9 pin Conn D-Subminiature PIN 9 POS 2.77mm Solder Cup ST Panel Mount 9 Terminal 1 Port Product Highlights:ConnectorProduct Series = HD-20 (Solder Cup)Number of Positions = 9PlugWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONNECTOR, D-SUB, PLUG, SOLDER, 9WAY Conn;D-Sub;CablePlug;9Pos;STR;HD-20Series;20AWG;FullMetalShell Plug; D-Sub; HD 20; PIN:9; male; soldering; for cable; gold flash D-Sub plug 9P, 5-747904-2, TE Connectivity TE Connectivity Amplimite HD-20 系列 面板安装 DB9 9 路 焊接 D-sub 连接器 插头 , 250 V 交流, 3A 9 Plug Solder Cup, Gold Flash,

$1.9992
Details
1-745492-8

1-745492-8

te connectivity / amp

Conn D-Subminiature PIN 9 POS 2.74mm IDT ST Panel Mount 9 Terminal 1 Port D-Sub Standard Connectors PLUG 9 POSITION Standard Cable Connectors CONN D-SUB PLUG 9POS 22-26AWG AU AMPLIMITE HDE-20 d-sub IDC plug,9 pin Conn D-Subminiature PIN 9 POS 2.74mm IDT ST Panel Mount 9 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDE-20 (IDC)Number of Positions = 9PlugWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub PLUG, IDC, D, METAL, 9WAY Conn;D-Sub;CablePlug;9Pos;STR;HDE-20Series;IDC;26-22AWG;FullMetalShell D-Sub male 9P, 1-745492-8, TE Connectivity TE Connectivity AMPLIMITE HDE-20 系列 2.74mm 节距 9 路 IDC D-sub 连接器, 插头, 钢外壳 09 HDE MS PLUG,22-26,LEAD FREE

$2.7608
Details
205204-4

205204-4

te connectivity / amp

Conn Housing PL 9 POS Crimp ST D-Sub Standard Connectors 9P PLUG TIN IN Standard Cable Connectors CONN D-SUB HOUSING PLUG 9POS AMPLIMITE HDP-20 d-sub cable plug, 9 pin Conn Housing PL 9 POS Crimp ST Product Highlights:ConnectorProduct Series = HDP-20 (Crimp Snap)Number of Positions = 9PlugWithout ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub Conn;D-Sub;CablePlug;9Pos;STR;HDP-20Series;CrimpSnap;20AWG;MetalShell D-Sub crimp plug-housing 9P, 205204-4, TE Connectivity TE Connectivity AMPLIMITE HDP-20系列 9路 直 压接式 D-sub 连接器, 插头 CRIMP SNAP PLUG ASSY,SIZE 1

$0.6683
Details
1658613-4

1658613-4

te connectivity / amp

Conn D-Subminiature PIN 9 POS 2.76mm IDT RA Cable Mount 9 Terminal 1 Port D-Sub Standard Connectors LPM PLUG 9P Standard Cable Connectors CONN D-SUB PLUG 9POS GOLD AMPLIMITE HDF-20 d-sub IDC plug,9 pin Conn D-Subminiature PIN 9 POS 2.76mm IDT RA Cable Mount 9 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDF-20 (Ribbon Cable)Number of Positions = 9PlugWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub PLUG, IDC, D, METAL, 9WAY Conn;D-Ribbon;CablePlug;9Pos;STR;HDF-20Series;IDC;28-26AWG;FrontMetalShell D-Sub Plug 9P, 1658613-4, TE Connectivity TE Connectivity AMPLIMITE HDF-20 系列 2.76mm 节距 9 路 IDC D-Sub 带状电缆连接器, 插头, 钢外壳 09 POS HDF PLUG, MS, LEAD FREE

$4.2093
Details
1658608-4

1658608-4

te connectivity / amp

Conn D-Subminiature PIN 9 POS 2.76mm IDT RA Cable Mount 9 Terminal 1 Port D-Sub Standard Connectors DSUB E09P IDC RIBBON Standard Cable Connectors CONN D-SUB PLUG 9POS GOLD AMPLIMITE HDF-20 d-sub IDC plug, 9 pin Conn D-Subminiature PIN 9 POS 2.76mm IDT RA Cable Mount 9 Terminal 1 Port Product Highlights:ConnectorProduct Series = HDF-20 (Ribbon Cable)Number of Positions = 9PlugWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub PLUG, DSUB, 9WAY Conn;D-Ribbon;CablePlug;9Pos;STR;HDF-20Series;IDC;28-26AWG;FrontMetalShell TE Connectivity AMPLIMITE HDF-20 系列 2.76mm 节距 9 路 IDC D-Sub 带状电缆连接器, 插头, 钢外壳 09 POS HDF PLUG, MS, LEAD FREE

$3.9070
Details
5-747904-5

5-747904-5

te connectivity / amp

Conn D-Subminiature PIN 9 POS 2.77mm Solder Cup ST Panel Mount 9 Terminal 1 Port D-Sub Standard Connectors DSUB E09P S/CUP Standard Cable Connectors CONN D-SUB PLUG 9POS SLD CUP AU AMPLIMITE HD-20 d-sub cable plug,9 pin Conn D-Subminiature PIN 9 POS 2.77mm Solder Cup ST Panel Mount 9 Terminal 1 Port Product Highlights:ConnectorProduct Series = HD-20 (Solder Cup)Number of Positions = 9PlugWith ContactsSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONNECTOR, STANDARD, 9POS, PLUG Conn;D-Sub;CablePlug;9Pos;STR;HD-20Series;20AWG;FullMetalShell TE Connectivity Amplimite HD-20 系列 电缆安装 DB9 9 路 焊接 D-sub 连接器 插头 , 250 V 交流, 3A 9 Plug Solder Cup, 30 gold, Ro

$2.2562
Details
1-66507-0

1-66507-0

te connectivity / amp

Contact PIN Crimp ST Cable Mount Loose Piece D-Sub Contacts HDP-20 PIN 28-24 AMPLIMITE HD20 Crimp Snap-In CONN D-SUB PIN 24-28AWG AU AMPLIMITE HDP-20 pin crimp contact 20 DF Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CRIMP PIN, GOLD, 28-24AWG D-SubConnector;Pin;28to24AWG;Crimp;0.04in.;GoldFlash;20;Standard TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 28 → 24 AWG PIN CONTACT, 20 DF

$0.3355
Details
749810-7

749810-7

te connectivity / amp

Conn D-Subminiature PL 9 POS IDT ST Cable Mount 9 Terminal 1 Port Bulk D-Sub Standard Connectors KIT SZ 1 HDE PLUG KIT 9P SZ 1 HDE PLUG Standard Cable Connectors CONN D-SUB PLUG KIT 9 POS GOLD Conn,D-Sub,CablePlug,9Pos,STR,HDE-20S Connector; Cable; Plug; Full Metal Shell; 1; 9; 20 AWG; Black; Steel Conn D-Subminiature PL 9 POS IDT ST Cable Mount 9 Terminal 1 Port Bulk Product Highlights:Connector KitProduct Series = HDE-20 (IDC)Number of Positions = 9ShieldedPlugSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub Conn;D-Sub;CablePlug;9Pos;STR;HDE-20Series;IDC;26-22AWG;FullMetalShell KIT SZ 1, HDE PLUG, LEAD FREE

$17.5137
Details

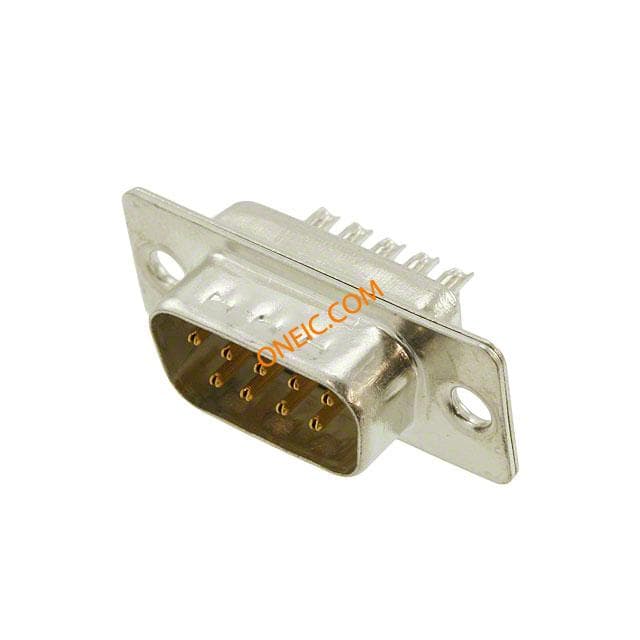

4-1393483-7
