5747150-4
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | D-Sub Standard Connectors | Standard Package | Rail / Tube |
| Factory Pack Quantity | 17 | ||
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366930 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Grounding | Without | Range deg/s | :TE CONNECTIVITY - Amplimite HD-20 Series |
| Voltage Rating | 125V | Current Rating (Max) | 6A |
Mechanical
| Color | Black | Pitch | 2.74 mm |
| Sealed | No | Weight | 0.005 |
| Packaging | Tube | Shell Size | 1 |
| Termination | Solder | Contact Type | Signal |
| 2nd Connector | Without | Contact Shape | Round |
| Mounting Type | Through Hole | Shell Plating | Tin |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Grounding Type | Without |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Shell Material | Steel | Board Thickness | 0.093 â 0.125 [2.36 â 3.18] |
| Connector Style | D-Sub | Material - Body | :Metal |
| Profile (W x H) | Standard | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic | Panel Mount Type | Without |
| Size / Dimension | 0.66 [.026] | Grounding Indents | Without |
| Termination Style | Solder | Color - Connectors | None |
| Number of Contacts | 9 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 9 | Shell Size - Insert | Front Metal Shell |
| Mounting Hole Diameter | 3.05 [.120] | Shell Material, Finish | Steel, Tin Plated |
| Termination Post Length | 4.32 [0.170] | Contact Finish Thickness | 30µin (0.76µm) |
| Shell Size, Connector Layout | 1 (DE, E) | ||
Product Info
| Note | All receptacles are preloaded with size 20 DF posted socket contacts | Type | D-Subminiature |
| Gender | SKT | Series | HD-20 |
| Manufacturer | AMP | ||
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
Documents & Media
Online Document
Online Document
PDF Document
Similar Parts
2-5748003-0
te connectivity / amp
$42.3762
Details
5-747904-2
te connectivity / amp
$14.1984
Details
5747871-8
te connectivity / amp
$37.5836
Details
1-745492-8
te connectivity / amp
$24.2760
Details
5208006-2
te connectivity / amp
$24.2420
Details
1658613-4
te connectivity / amp
$30.0662
Details

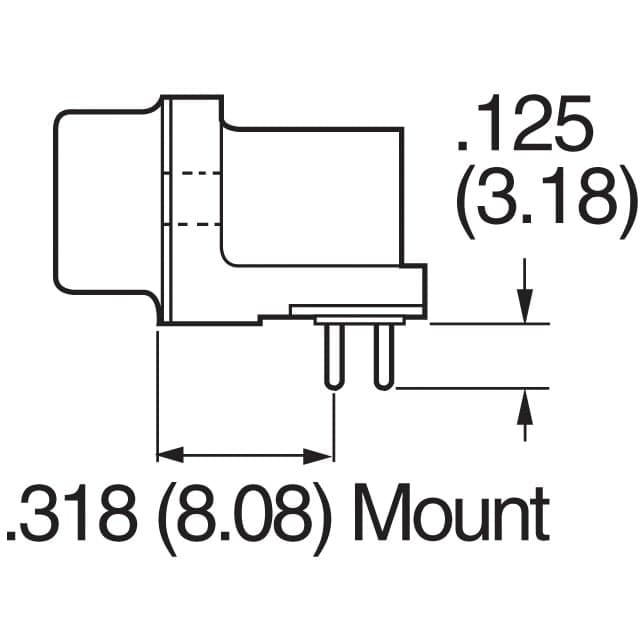

5747250-6
te connectivity / amp
$24.8146
Details
5747871-2
te connectivity / amp
$38.6403
Details
5-747904-5
te connectivity / amp
$14.1610
Details
5747840-5
te connectivity / amp
$14.9843
Details
1-5747871-4
te connectivity / amp
$30.6340
Details

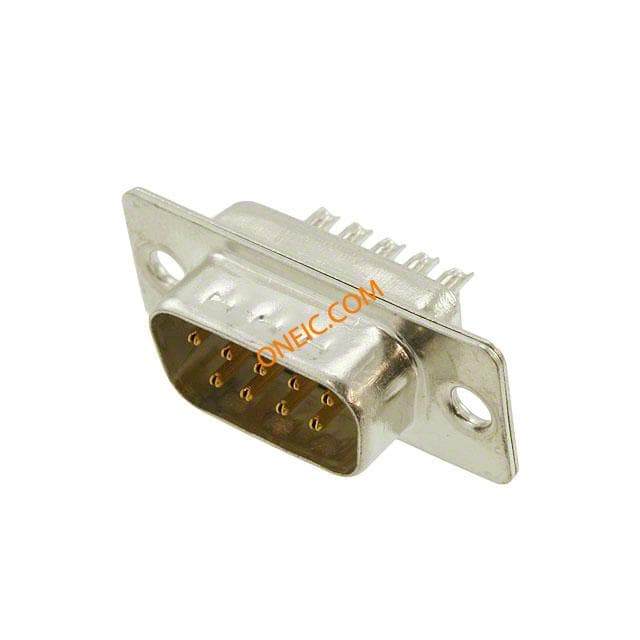

4-1393483-7
te connectivity / amp
$33.7960
Details
5747840-4
te connectivity / amp
$14.2120
Details
749808-8
te connectivity / amp
$75.2944
Details
1-745492-9
te connectivity / amp
$24.0380
Details
5745183-1
te connectivity / amp
$58.5542
Details
2-745492-0
te connectivity / amp
$60.0998
Details
1-745492-7
te connectivity / amp
$34.4559
Details

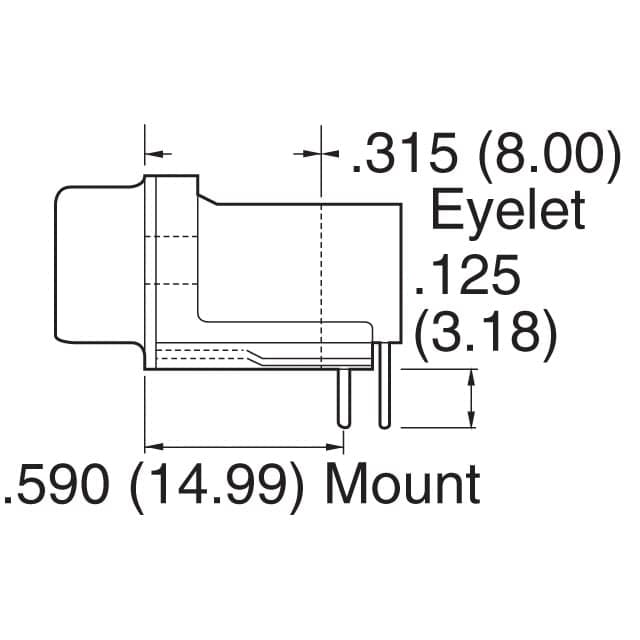

5747832-4
