120943-1
| Manufacturer | |
| Description | Conn Power RCP 3 POS Press Fit RA Thru-Hole 18 Terminal 1 Port CONN RCPT 3POS R/A GRAY Heavy Duty Power Connectors ASSEMBLY, R/A UPM RECPT, 3 POS Conn Power RCP 3 POS Press Fit RA Thru-Hole 18 Terminal 1 Port Search Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, RECEPTACLE, UPM, R/A, 3WAY HARD METRIC CONNECTOR, RECEPTACLE, 3POS CONN RCPT 3POS ASSEMBLY, R/A UPM RECPT, 3 POS |
| Category |
Business
| Other Names | A108479 | Standard Package | Bulk |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Not applicable / RoHS Compliant | Tariff No | 85369010 |
| Material Flammability Rating | UL94 V-0 | ||
Mechanical
| Color | Gray | Pitch | :1.5mm |
| Weight | 0.05 | Packaging | Bulk |
| Termination | Press Fit | Mounting Type | Through Hole |
| Connector Type | Receptacle, Female Blade Sockets | Contact Finish | Gold |
| Number of Rows | :1 | Connector Style | Blade Power |
| Insertion Force | Female | Contact Material | Copper Alloy |
| Housing Material | Polyester | Termination Style | Solder |
| Number of Contacts | 3 | Contact Termination | :Press Fit Right Angle |
| Number of Positions | 3 | Contact Layout, Typical | 3 Power |
| Contact Finish Thickness | 50µin (1.27µm) | ||
Product Info
| Type | Power | Gender | RCP |
| Series | Universal Power | Product Type | Connectors |
| Number of Positions Loaded | All | ||
Documents & Media
Similar Parts
5-5223961-1
te connectivity / amp
Conn Backplane HDR 3Power POS 2mm Press Fit RA Thru-Hole Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN PLUG 3POS BLADE RT ANG GOLD Header horizontal 3 way Blade U-P Module Hard Metric Connectors HDR 1X003P R/A HC B-PLANE UPME Conn Backplane HDR 3Power POS 2mm Press Fit RA Thru-Hole Product Highlights:HeaderNumber of Positions = 3Not KeyedMating Post Length (Row A) = 10.90 mmMating Post Length (Row B) = 10.90 mmSearch Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, HEADER, UPM, R/A, 3WAY Headerhorizontal3wayBladeU-PModule TE Connectivity Z-PACK HM 系列 2mm 节距 3 路 直角 1 排 公 背板连接器, 按式端子, 10A UPM PIN ASSY, HI CURRENT

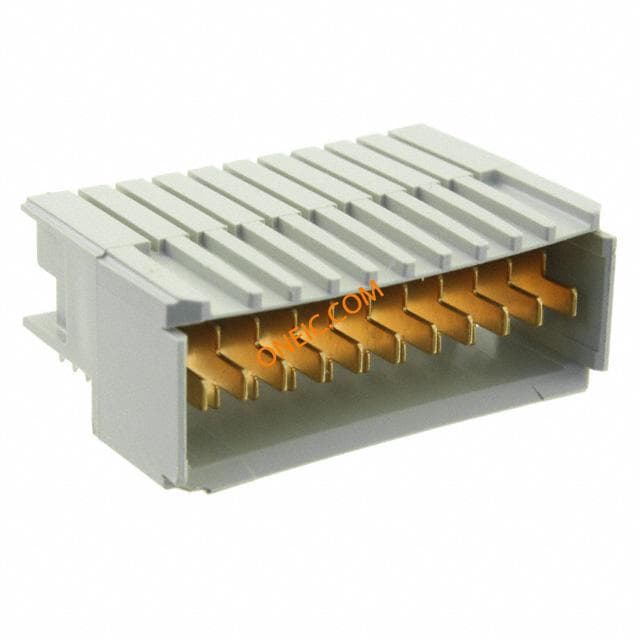

5646961-1
te connectivity / amp
Conn DIN 41612 PIN 11 POS Solder RA Press Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) CONN PLUG 11POS UNIV PWR MODULE Hard Metric Connectors UPM EXPANDED PIN ASSEMBLY Universal Power Module (For use with Z-PACK 2mm HM, Z-PACK HS3, Z-PACK HM-Zd and MULTI GIG RT2J) Product Highlights:PlugNumber of Positions = 11PCB Mount Angle = Right AngleNot KeyedTin Solder Tail Contact PlatingSearch Keywords:high speed, board to board, open pin field, power, IEC 950, inverse-sex, mezzanine, pcb connectors, wire to board, VRM, voltage regulator module, Itanium II Power POD connector, HEADER, UPM, R/A, 11WAY UPM EXPANDED PIN ASSEMBLY
