5-1634688-0
| Manufacturer | |
| Description | Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER 50POS .100 VERT GOLD TE Connectivity 5-1634688 Series 2.54mm Pitch 50 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings BOX HEADER VERT 50P Conn Shrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, BOX, STRAIGHT, 50WAY StraightIDCboxedheader,50-way Pin header DIN 41651 50P, 5-1634688-0, TE Connectivity |
| Category |
Business
| Tradename | AMP-LATCH | Product Category | Headers & Wire Housings |
| Standard Package | Trays | Factory Pack Quantity | 1200 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Tariff No | 85369010 |
| Approval Agency | :UL | Material Flammability Rating | UL 94 V-0 |
Electrical
| Range deg/s | :TE - AMP-LATCH Series | Dielectric Strength | :500V |
| Current Rating (Max) | 1A | Insulation Resistance | 5000 MOhms |
Mechanical
| Color | Black | Depth | 9 mm |
| Pitch | 2.54 mm | Height | 8.95 mm |
| Weight | 0.0582 | Material | :Polyester |
| Packaging | Bulk | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Male Pin |
| Lead Spacing | :2.54mm | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Gold Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 2 | Contact Material | Brass |
| Housing Material | Thermoplastic | Length - Overall | 71.15 mm |
| Primary Material | PCB | Termination Style | Through Hole |
| 1st Contact Gender | Pin (Male) | Color - Connectors | :Black |
| Number of Contacts | 50 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 50 | Contact Length - Mating | 0.228" (5.80mm) |
| Termination Post Length | 3.02 mm | Contact Finish Thickness | 10µin (0.25µm) |
| 1st Connector Mounting Type | :Straight | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | 5-1634688 | Manufacturer | 5-1634688Series |
| Product Type | Headers | Number of Positions Loaded | All |
Environmental
| Operating Temperature | - 40 C to + 105 C | ||
Documents & Media
Similar Parts
1-1658622-0
te connectivity / amp
Conn IDC Connector RCP 50 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 50POS W/POL GOLD AMP-Latch receptacle,0.08-0.15mm²,50way Headers & Wire Housings 50PIN RIB CBL RCPT Conn IDC Connector RCP 50 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 50ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 50POS, 2.54MM Connector,Receptacle;Novo;50position,Gold(30);LeadFree TE Connectivity AMP-LATCH Novo 系列 2行 50路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 50 NOVO MIL/CTR 30DP,LEAD FREE
1-1658623-0
te connectivity / amp
Conn IDC Connector RCP 50 POS 2.54mm IDT RA Cable Mount Tube Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 50POS GOLD AMP-LATCHNOVOConnector,Receptacle,50Pos. AMP-LATCH NOVO Connector; Receptacle; 50 Pos.; Military Polarization; Black Headers & Wire Housings .1CL IDC REC 2X25P 30AU Conn IDC Connector RCP 50 POS 2.54mm IDT RA Cable Mount Conn IDC Connector RCP 50 POS 2.54mm IDT RA Cable Mount Tube Product Highlights:With ContactsConnector Type = NOVOHousing Gender = Receptacle50 PositionsReceptacleSearch Keywords:input/output, paddleboard, paddle board AMP-LATCHNOVOConnector,Receptacle,50Pos.,MilitaryPolarization,Black 50 NOVO MIL 30DP, LEAD FREE

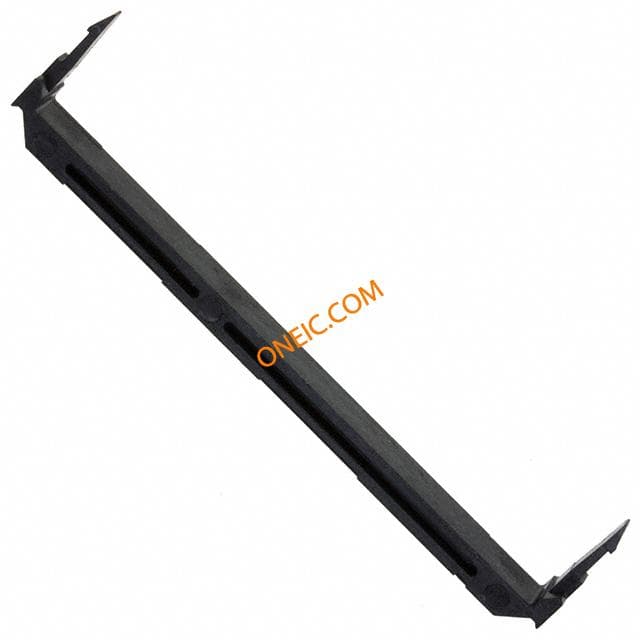

499252-4
