1-1658624-0
| Manufacturer | |
| Description | Conn IDC Connector F 50 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) 050 NOVO DUAL 30DP FT Headers & Wire Housings .1CL IDC REC 2X25P D/P 30AU Conn IDC Connector F 50 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 50ReceptacleMating Polarization Method = Dual Polarizing BarWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board |
| Category |
Business
| Tradename | AMP-LATCH | Product Category | Headers & Wire Housings |
| Standard Package | Rail / Tube | Factory Pack Quantity | 600 |
Compliance
| RoHS | Lead free / RoHS Compliant | UL Rating | 获得认可 |
| Leadfree Defin | Not relevant for lead free process | UL File Number | E28476 |
| CSA File Number | LR 7189 | Standard Number | CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Voltage Rating | 250 | Voltage - Supply | 250 |
| Resistance - Input | 5000 | Connector Impedance | 刺破式压接 (IDC) |
| Current Rating (Max) | 1 | Link Range, Low Power | 不带 |
| Connector - Voltage Input | 音叉 | ||
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Width | 7.49 mm [ .2949 in ] | Height | 15.16 mm [ .5968 in ] |
| Length | 68.07 mm [ 2.6799 in ] | Base Type | 不带 |
| Packaging | Tube | Wire Type | Ribbon Cable |
| Body Color | 黑色 | Cable Exit | Without |
| Cable Type | 带状电缆 | Row Spacing | 0.100" (2.54mm) |
| Termination | IDT | Contact Type | Forked |
| Polarization | Dual Polarizing Bar | 2nd Connector | Without |
| Housing Color | Black | Mounting Type | No |
| Cable End Type | Without | Connector Type | NOVO |
| Contact Finish | Gold Over Palladium Nickel Over Nickel|Gold Over Nickel | Mounting Style | Cable |
| Number of Rows | 2 | Actuation Force | 不带 |
| Insert Material | 磷青铜 | Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic | Mounting Feature | Without |
| Package Quantity | 50 | Panel Mount Type | 通孔 - 焊接 |
| Size / Dimension | .08 – .15 mm², 158 – 296 CMA, 28 – 26 美国线规 | Cable Termination | IDC |
| Termination Style | IDC | 1st Contact Gender | Socket (Female) |
| Mating Orientation | With | Number of Contacts | 50 |
| Insulation Material | .787 – .94 mm [ .031 – .037 in ] | Number of Positions | 50 |
| Contact Length - Post | 信号（数据） | Mounting Hole Diameter | 带有 |
| Contact Finish - Mating | 锡 | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Note | Receptacle can be used in applications requiring non-polarization, as well as m | Type | IDC Connector |
| Gender | F | Series | AMP-LATCH NOVO |
| Features | Feed Through, Polarizing Key | Polarity | 带有 |
| Cover Type | 否 | Product Type | Receptacles / Sockets - Housings |
| Connection Type | Ribbon Cable | With Modem Control | Yes |
Environmental
| Operating Temperature | -65 – 105 °C [ -85 – 221 °F ] | ||
Documents & Media
Similar Parts

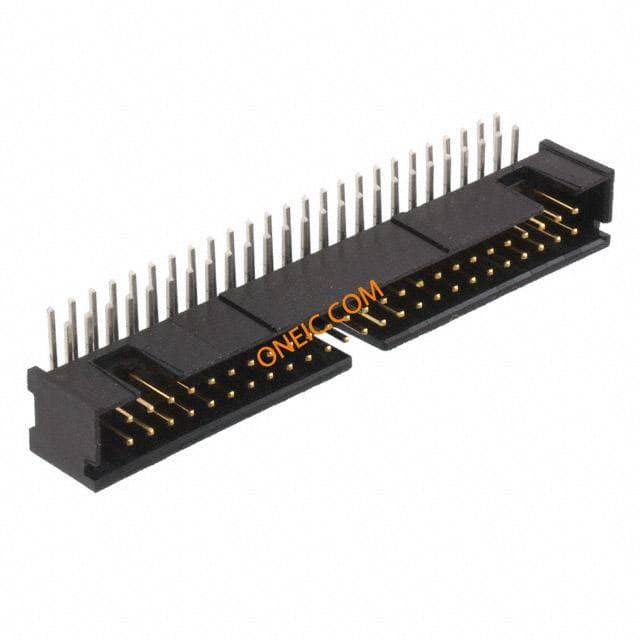

1-5103311-0
