1-5499922-0
| Manufacturer | |
| Description | Conn Ejector Header HDR 50 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 50POS .100 15AU TE Connectivity 1-5499922 Series 2.54mm Pitch 50 Way 2 Row Straight PCB Header, Solder Termination, 1A Headers & Wire Housings 50 POS HDR 15AU W/LONG LATCHES Conn Ejector Header HDR 50 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 502.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, HEADER, STRAIGHT, 50WAY HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,50POS,2.54X2.54,PCB,VERTICAL TE Connectivity AMP-LATCH 系列 2.54mm节距 50路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 50P VERT LG LAT |
| Category |
Business
| Tradename | AMP-LATCH | Product Category | Headers & Wire Housings |
| Standard Package | Trays | Factory Pack Quantity | 18 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | Approval Agency | :CSA, UL |
| RoHSELV Compliance | RoHS compliant, ELV compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Range deg/s | :TE - AMP-LATCH Series | Voltage Rating | 250 V ac |
| Switch Function | Ejection | Current Rating (Max) | 1A |
| Insulation Resistance | :1Gohm | Voltage - Supply (Min) | 250VAC |
Mechanical
| Color | Black | Depth | 8.53 mm |
| Pitch | 2.54 mm | Height | 27.31 mm |
| Length | :82.9mm | Weight | 0.01198 |
| Packaging | Bulk | Shrouding | Yes |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Contact Type | Male Pin | Lead Spacing | :1.27mm |
| Pitch - Post | 2.54 x 2.54 [.100 x .100] | Polarization | Center, Dual Polarizing Bar, Military |
| 2nd Connector | With | Contact Shape | Square |
| Housing Color | Black | Mounting Type | Vertical |
| Connector Type | Universal Ejection Pin Headers | Contact Finish | Gold Over Palladium Nickel Over Nickel|Gold Over Nickel |
| Fastening Type | Latch, Long/Eject Hooks | Mounting Style | Through Hole |
| Number of Rows | 2 | Package / Case | 4-Sided |
| Board Thickness | 1.57 [0.062] | Locking Feature | Latch |
| Profile (W x H) | Standard | Contact Material | :Copper |
| Housing Material | Thermoplastic | Length - Overall | 82.8 mm |
| Primary Material | InterconnectSystem | Size / Dimension | 0.64 [.025] |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Color - Connectors | :Black | Mating Orientation | With |
| Number of Contacts | 50 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 50 | Contact Length - Mating | 0.240" (6.10mm) |
| Termination Post Length | 2.79 [0.110] | Contact Finish Thickness | 15µin (0.38µm) |
| Mounting Panel Thickness | :78.74mm | 1st Connector Mounting Type | :Straight |
Product Info
| Type | Ejector Header | Gender | HDR |
| Series | 1-5499922 | Polarity | :Bump/Clip |
| Manufacturer | AMP-LATCH | Product Type | Headers |
| Other Specifications | With | Number of Positions Loaded | All |
Environmental
| Mating Cycles | :50 | Temperature Rating | Standard |
| Operating Temperature | -65C to 105C | ||
Similar Parts
1-1658622-0
te connectivity / amp
Conn IDC Connector RCP 50 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 50POS W/POL GOLD AMP-Latch receptacle,0.08-0.15mm²,50way Headers & Wire Housings 50PIN RIB CBL RCPT Conn IDC Connector RCP 50 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 50ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 50POS, 2.54MM Connector,Receptacle;Novo;50position,Gold(30);LeadFree TE Connectivity AMP-LATCH Novo 系列 2行 50路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 50 NOVO MIL/CTR 30DP,LEAD FREE
1-1658623-0
te connectivity / amp
Conn IDC Connector RCP 50 POS 2.54mm IDT RA Cable Mount Tube Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 50POS GOLD AMP-LATCHNOVOConnector,Receptacle,50Pos. AMP-LATCH NOVO Connector; Receptacle; 50 Pos.; Military Polarization; Black Headers & Wire Housings .1CL IDC REC 2X25P 30AU Conn IDC Connector RCP 50 POS 2.54mm IDT RA Cable Mount Conn IDC Connector RCP 50 POS 2.54mm IDT RA Cable Mount Tube Product Highlights:With ContactsConnector Type = NOVOHousing Gender = Receptacle50 PositionsReceptacleSearch Keywords:input/output, paddleboard, paddle board AMP-LATCHNOVOConnector,Receptacle,50Pos.,MilitaryPolarization,Black 50 NOVO MIL 30DP, LEAD FREE

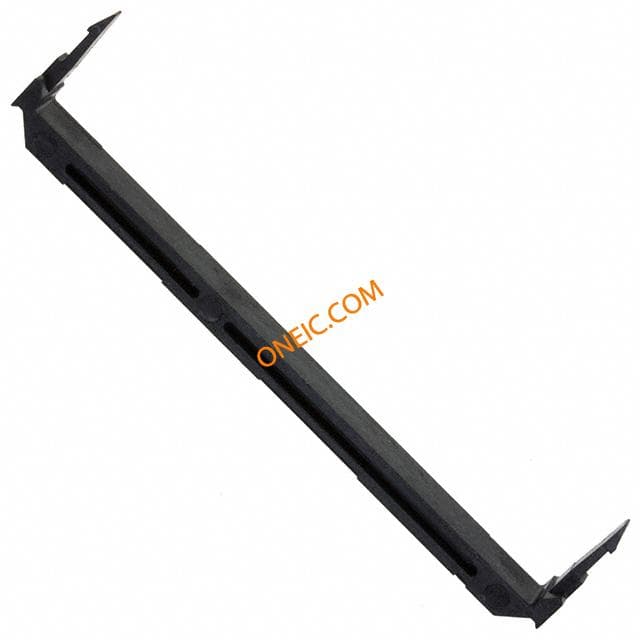

499252-4
te connectivity / amp
Connector Accessories 50 POS Receptacle Flat Cable Connector Strain Relief Thermoplastic Black Accessories (AMP-LATCH) STRAIN RELIEF 50POS SOCKET CONN 50 way IDC strain relief Headers & Wire Housings STRAIN RELIEF 50POS Connector Accessories 50 POS Receptacle Flat Cable Connector Strain Relief Thermoplastic Black Product Highlights:Strain ReliefNumber of Positions = 50Search Keywords:input/output, paddleboard, paddle board STRAIN RELIEF, 50WAY, THERMOPLASTIC StrainRelief,CableConnector;50;Thermoplastic;UL94V-0;Black TE Connectivity 50路 应力释放支架, 使用于 AMP-LATCH NOVO 系列 050 STRAIN RELIEF A-L RCPT
1-1658620-0
te connectivity / amp
Conn IDC Connector F 50 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 50POS 15 GOLD Connector,Receptacle,Novo,50,Gold(15) Headers & Wire Housings MLTRY PLRZD RECPT 50 NOVO Conn IDC Connector F 50 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 50ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 50POS, 2.54MM Connector,Receptacle;Novo;50;Gold(15);Tin-Lead;0.100in.x0.100in. 50 NOVO MIL 15DP, LEAD FREE
1-1658621-0
te connectivity / amp
Conn IDC Connector F 50 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 50POS W/POL 15 GOLD 50way polarised skt w/o strain relief Headers & Wire Housings .1CL IDC REC 2X25P C&M 15AU Conn IDC Connector F 50 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 50ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 50POS, 2.54MM Receptaclew/RecessedCover,Center&MilitaryPolarization50pos Multipole socket DIN 41651 50P, 1-1658621-0, TE Connectivity TE Connectivity AMP-LATCH Novo 系列 2行 50路 2.54mm节距 直角 电缆安装 母 IDC 连接器 50 NOVO MIL/CTR 15DP,LEAD FREE

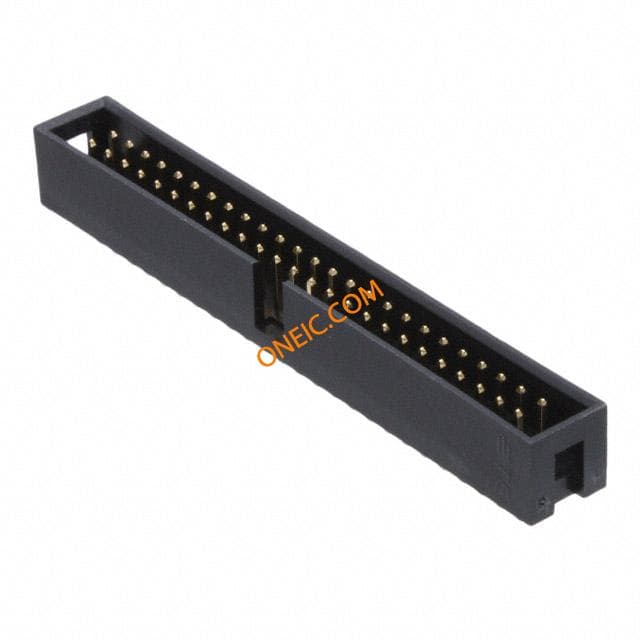

5-1634688-0
