5-1634503-1
| Manufacturer | |
| Description | Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder ST Thru-Hole Gold Individual BNC RF Connectors CONN BNC JACK STR 50 OHM PCB BNC Ni-pl PCB straight socket, 50 ohm RF Connectors / Coaxial Connectors Str PCB Skt 50 Ohm Nickel 18.2 Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder ST Thru-Hole Gold Individual Product Highlights:Connector - RFJackHousing Gender = JackTerminate To Printed Circuit BoardPCB Mount Angle = VerticalSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, STRAIGHT, PCB, 50R BNCSTRPCBSKT50OHMNICKELPLTD18.2 Socket; BNC; female; straight; 50Ω; THT; on PCBs; gold plated BNC appliance socket 50 Ohm, 5-1634503-1, TE Connectivity TE Connectivity Greenpar 直 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Str PCB Skt 50Ohm Nickel Pltd |
| Category |
Business
| Product | PCB Receptacles | Product Category | RF Connectors / Coaxial Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Rad Hardened | No | ||
Electrical
| Frequency | 0 to 4 GHz | Impedance | 50 Ohm |
| Voltage Rating | 500V | Frequency - Max | 4GHz |
| Voltage - Working | :500V | Contact Resistance | :1.5mohm |
| Voltage - Breakdown | :1500V | Insulation Resistance | :5000Mohm |
| Impedance - Unbalanced/Balanced | :50R | ||
Mechanical
| Size | Standard | Depth | 11 mm |
| Weight | 0.01 | Diameter | 11 mm |
| Packaging | Bulk | Cable Type | :- |
| Body Finish | Nickel | Orientation | Straight |
| Termination | Solder | Body Material | Zinc Alloy |
| Housing Color | Silver | Mounting Type | Through Hole |
| Angle of Throw | Straight | Connector Type | Jack, Female Socket |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Housing Finish | Nickel | Mounting Style | Through Hole |
| Plating - Body | Nickel | Connector Style | BNC |
| Contact Material | Phosphor Bronze | Length - Overall | 13.7 mm |
| Package Quantity | 1 | Primary Material | BNC |
| Connector - Cable | socket | Termination Style | Solder |
| Shield Termination | Solder | Contact Termination | Solder |
| Dielectric Material | Polymethylpentene (PMP) | Insulation Material | Polymethylpentene |
| Material - Insulation | :Zinc | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | Supplier Device Package | Straight |
| Contact Material - Plating | gold plated | 1st Connector Mounting Type | :PCB |
Product Info
| Spg | 1 | Type | ZDC/BNC |
| Gender | RCP | Series | :- |
| Features | HoldDownPosts | Polarity | Normal |
| Connection Type | PCB | Number of Units | 1 |
| RF Family/Standard | 1634503 | ||
Environmental
| Mating Cycles | :50 | Operating Temperature | -55°C ~ 85°C |
Documents & Media
Similar Parts
1-1337543-0
te connectivity / amp
Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK R/A 50 OHM PCB BNC white r/a PCB socket, 50 ohm RF Connectors / Coaxial Connectors R/A PCB Skt White 50Ohm Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 BNC, JACK, PCB, R/A, 50OHM, WHITE BNCINSR/APCBSKT50OHMWHITE Socket; BNC; female; insulated; angled 90°; 50Ω; THT; polyester BNC appliance socket, right angle 50 Ohm, 1-1337543-0, TE Connectivity TE Connectivity Greenpar 直角 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins R/A PCB Skt 50Ohm White
1-1634613-0
te connectivity / amp
Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK R/A 50 OHM PCB BNC black low profile PCB skt, r/a,50ohm RF Connectors / Coaxial Connectors PCB Skt MP Black 50Ohm Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, INS, PCB, 50R, BLACK BNCINSLPPCBSKT50OHMMPBLACK Socket; BNC; female; insulated; angled 90°; 50Ω; THT; polyetylene TE Connectivity 直角 50Ω 通孔 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins LP PCB Skt 50Ohm Black
1-1337541-0
te connectivity / amp
Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder ST Thru-Hole Gold Individual RF Connectors Str PCB Skt MP White 50Ohm BNC RF Connectors CONN BNC JACK STR 50 OHM PCB BNC insulated PCB socket, white, 50 ohm RF Connectors / Coaxial Connectors Str PCB Skt MP White 50Ohm Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder ST Thru-Hole Gold Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJack ReceptacleTerminate To Printed Circuit BoardBody Style = StraightSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, INS, PCB, 50R, WHITE BNCINSSTRPCBSKT50OHMMPWHITE Socket; BNC; female; straight; 50Ω; THT; polyetylene; gold plated TE Connectivity Greenpar 直 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins Str PCB Skt 50Ohm White
1-1337494-0
te connectivity / amp

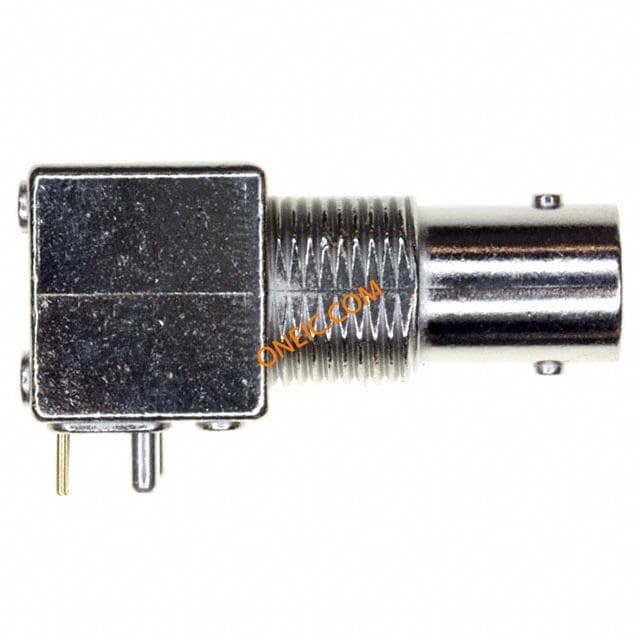

Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK R/A 50 OHM PCB ZDC/BNC R/A shielded PCB socket, 50 ohm RF Connectors / Coaxial Connectors R/A Shld PCB Skt Nickel 50Ohm Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJackTerminate To Printed Circuit BoardBody Style = ElbowSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, PCB, R/A, 50R, SHIELD BNCR/ASHLDPCBSKT50OHMNICKELPLTD Socket; BNC; female; angled 90°; 50Ω; THT; polyetylene; gold plated BNC appliance socket, right angle 50 Ohm, 1-1337494-0, TE Connectivity TE Connectivity Greenpar 直角 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC R/A Shld PCB Skt 50Ohm Nickel Pltd
1-1634505-0
te connectivity / amp
Conn ZDC/BNC RCP 50Ohm Solder ST Thru-Hole Gold Individual BNC RF Connectors CONN BNC JACK STR 50 OHM PCB BNC black insul straight socket, 50 ohm RF Connectors / Coaxial Connectors Str PCB Skt MP Black 50Ohm Conn ZDC/BNC RCP 50Ohm Solder ST Thru-Hole Gold Individual Product Highlights:ConnectorConnector Type = ZDC/BNCJackTerminate To Printed Circuit BoardBody Style = StraightSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 SOCKET, BNC, INS, PCB, 50R, BLACK BNCINSSTRPCBSKT50OHMMPBLACK TE Connectivity Greenpar 直 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins Str PCB Skt 50Ohm Black
5-1634532-1
te connectivity / amp

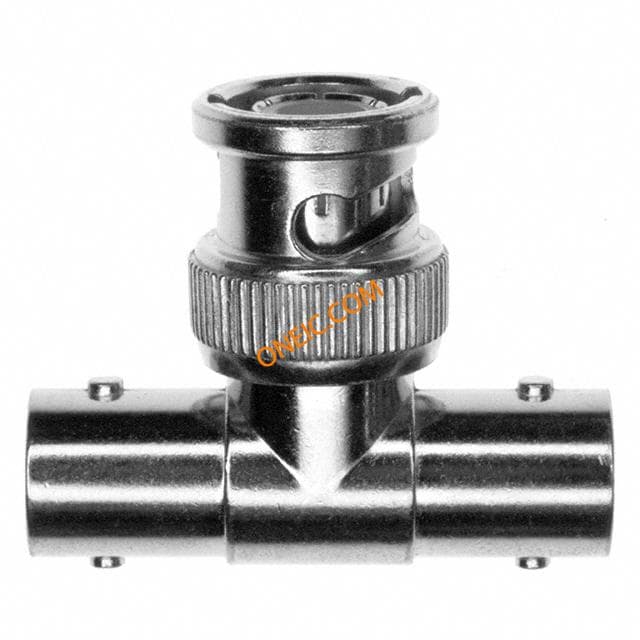

Conn ZDC/BNC Adapter RCP/PL/RCP 0Hz to 4GHz 50Ohm T Style Gold Over Nickel Over Copper Individual BNC RF Connectors CONN T-ADAPTOR BNC J-P-J 50 OHM BNC Ni-pl T adaptor RF Adapters - Tee T Adpt JK-PL-JK NKL GLD 50Ohm Conn ZDC/BNC Adapter RCP/PL/RCP 0Hz to 4GHz 50Ohm T Style Gold Over Nickel Over Copper Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 ADAPTER, BNC, T, JACK-PLUG-JACK, 50OHM BNCTADPTJPJ50OHMNICKELGOLDPLTD BNC T-adapter, female/male/female 50 Ohm, 5-1634532-1, TE Connectivity TE Connectivity T 形 50Ω 射频适配器 , 0 → 4GHz, BNC 插头 到 BNC 2 x 插座 BNC T Adpt JPJ 50Ohm Nickel Gold Pltd
