点击放大查看
5-1634532-1
| Manufacturer | |
| Description | Conn ZDC/BNC Adapter RCP/PL/RCP 0Hz to 4GHz 50Ohm T Style Gold Over Nickel Over Copper Individual BNC RF Connectors CONN T-ADAPTOR BNC J-P-J 50 OHM BNC Ni-pl T adaptor RF Adapters - Tee T Adpt JK-PL-JK NKL GLD 50Ohm Conn ZDC/BNC Adapter RCP/PL/RCP 0Hz to 4GHz 50Ohm T Style Gold Over Nickel Over Copper Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 ADAPTER, BNC, T, JACK-PLUG-JACK, 50OHM BNCTADPTJPJ50OHMNICKELGOLDPLTD BNC T-adapter, female/male/female 50 Ohm, 5-1634532-1, TE Connectivity TE Connectivity T 形 50Ω 射频适配器 , 0 → 4GHz, BNC 插头 到 BNC 2 x 插座 BNC T Adpt JPJ 50Ohm Nickel Gold Pltd |
| Category |
Business
| Product Category | RF Adapters - Tee | Standard Package | Bulk |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Rad Hardened | No | ||
Electrical
| Frequency | 0 to 4 GHz | Impedance | 50 Ohm |
| Conversion Type | Same Series | Frequency - Max | :2GHz |
| Frequency Range | DC to 4 GHz | Voltage - Working | :500V |
| Contact Resistance | :1.5mohm | Voltage - Breakdown | :1500V |
| Insulation Resistance | :5000Mohm | ||
Mechanical
| Depth | 32.5 mm | Length | 27mm |
| Weight | 0.01 | Diameter | 13.7 mm |
| Packaging | Bulk | Body Finish | Nickel |
| 2nd Connector | BNC | Body Material | Zinc Alloy |
| Mounting Type | Tee Style | Shell Plating | Nickel |
| Angle of Throw | Tee | Connector Type | :BNC Coaxial |
| Contact Finish | Gold Over Nickel Over Copper | Housing Finish | Nickel |
| Plating - Body | Nickel Over Copper | Contact Material | Brass |
| Housing Material | Zinc | Length - Overall | 27 mm |
| Primary Material | Adapter | Dielectric Material | Polyethylene (PE) |
| Insulation Material | Polyethylene | 1st Connector Gender | Jack (Female) |
| 2nd Connector Gender | Jack (Female) | Center Contact Plating | Gold |
| Center Contact Material | Brass; Phosphor Bronze | Supplier Device Package | Tee Style |
| 1st Connector Mounting Feature | :Plug | ||
Product Info
| Type | ZDC/BNC Adapter | Style | T-Shape |
| Gender | RCP/PL/RCP | RF Type | BNC |
| Adapter Type | Plug to Jack | Center Gender | Female to Male |
| Adapter Series | BNC to BNC, Dual | RF Family/Standard | 1634532 |
| Convert To (Adapter End) | BNC Jack, Female Socket (2) | Convert From (Adapter End) | BNC Plug, Male Pin |
Environmental
| Mating Cycles | :50 | Operating Temperature | :+85°C |
Documents & Media
Similar Parts
5-1634530-1
te connectivity / amp
Conn BNC Adapter RCP/RCP 0Hz to 4GHz 50Ohm ST Panel Mount Gold Individual RF Adapters - In Series BH JACK-JACK Nickel 50Ohm CONN ADAPT JACK-JACK BNC 50 OHM BNC adapter 50ohm Ni plated Conn BNC Adapter RCP/RCP 0Hz to 4GHz 50Ohm ST Panel Mount Gold Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 ADAPTOR, BNC JACK-JACK, 50R BNCBHADPJJ50OHMNICKELPLTD TE Connectivity 直 50Ω 射频适配器 , 0 → 4GHz, BNC 插座 到 BNC 插座 BNC BH Adp JJ 50Ohm Nickel Pltd
5-1634534-1
te connectivity / amp
Conn ZDC/BNC Adapter RCP/RCP 0Hz to 4GHz 50Ohm ST Gold Over Nickel Over Copper Individual BNC RF Connectors CONN ADPT JACK-JACK BNC 50 OHM BNC Ni-pl jack to jack adaptor, 50 ohm RF Adapters - In Series Str Adp JK-JK Nickel 50Ohm Conn ZDC/BNC Adapter RCP/RCP 0Hz to 4GHz 50Ohm ST Gold Over Nickel Over Copper Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 ADAPTER, BNC JACK, BNC JACK, 50OHM BNCSTRADPJJ50OHMNICKELPLTD Coupler; BNC socket x2; straight; 50Ω; polymethylpentene (PMP) CONN ADAPT JACK-JACK BNC 50 OHM BNC adapter, female/female 50 Ohm, 5-1634534-1, TE Connectivity TE Connectivity 直 50Ω 射频适配器 , 0 → 4GHz, BNC 插座 到 BNC 插座 BNC Str Adp JJ 50Ohm Nickel Pltd

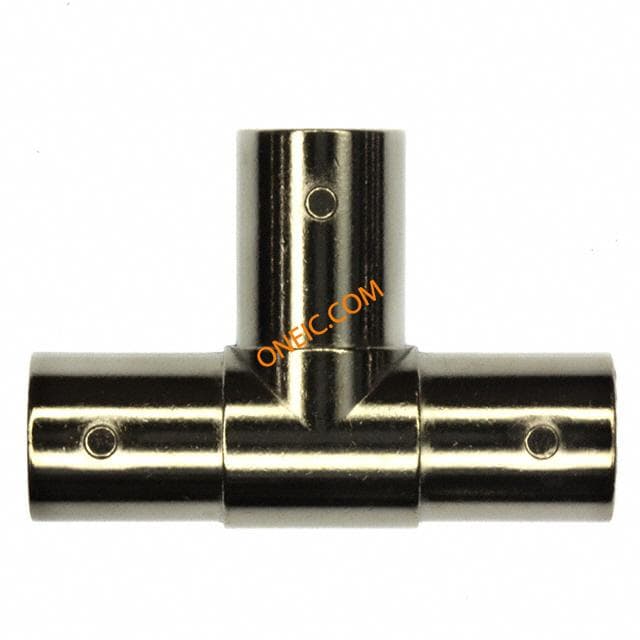

5-1634535-1
