1-1634612-0
| Manufacturer | |
| Description | Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual BNC RF Connectors CONN BNC JACK R/A 50 OHM PCB BNC Ni-pl r/a PCB socket, 50 ohm RF Connectors / Coaxial Connectors PCB Skt 50Ohm MP Black Conn ZDC/BNC RCP 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Individual Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 RF COAXIAL, BNC, JACK, THT, R/A, 50OHM BNCINSPCBSKT50OHMMPBLACK Socket; BNC; female; insulated; angled 90°; 50Ω; THT; polyetylene TE Connectivity Greenpar 直角 50Ω 通孔 隔板安装 BNC 连接器, 插口, 焊接 端接, 镀镍本体 BNC Ins R/A PCB Skt 50Ohm Black |
| Category |
Business
| Product | PCB Receptacles | Product Category | RF Connectors / Coaxial Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
Electrical
| Frequency | 0 to 4 GHz | Impedance | 50 Ohm |
| Voltage Rating | 500V | Frequency - Max | 4GHz |
| Voltage - Working | :500V | Contact Resistance | :1.5mohm |
| Voltage - Breakdown | :1500V | Insulation Resistance | :5000Mohm |
| Connector - Voltage Input | insulated | ||
Mechanical
| Size | Standard | Weight | 0.01 |
| Packaging | Bulk | Cable Type | :- |
| Body Finish | Nickel | Orientation | Right Angle |
| Termination | Solder | Body Material | Zinc Die Cast |
| Housing Color | Black | Mounting Type | Through Hole |
| Angle of Throw | RightAngle | Connector Type | Jack, Female Socket |
| Contact Finish | Gold Over Nickel Over Copper | Fastening Type | Bayonet Lock |
| Housing Finish | Nickel | Mounting Style | PCBMount |
| Plating - Body | :Nickel | Connector Style | BNC |
| Contact Material | Brass | Package Quantity | 1 |
| Primary Material | BNC | Connector - Cable | socket |
| Termination Style | Solder | Color - Connectors | black |
| Shield Termination | Solder | Contact Termination | Solder |
| Dielectric Material | Polyethylene (PE) | Material - Insulation | :Zinc |
| Center Contact Plating | Gold | Center Contact Material | Brass |
| Supplier Device Package | Right Angle | Contact Material - Plating | gold plated |
| 1st Connector Mounting Type | :Through Hole | ||
Product Info
| Spg | 1 | Type | ZDC/BNC |
| Gender | RCP | Series | :- |
| Features | Board Lock | Polarity | Normal |
| CAD Drawing | 3D CAD Model | Connection Type | PCB |
| Number of Units | 1 | RF Family/Standard | 1634612 |
Environmental
| Mating Cycles | :50 | Operating Temperature | -55°C ~ 85°C |
Documents & Media
Similar Parts
221108-4
te connectivity / amp
Connector Accessories BNC Self Tapping Screw Carbon Steel Zinc Finish BNC RF Connectors CONN SCREW SELF TAPPING BNC .250 Screws & Fasteners SCREW Connector Accessories BNC Self Tapping Screw Carbon Steel Zinc Finish Product Highlights:Self-Tapping ScrewConnector Type = BNCNot Surface MountableNot PolarizedSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012
1-1337427-0
te connectivity / amp
Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Silver Individual BNC RF Connectors CONN BNC PLUG STR 50 OHM SOLDER Crimp BNC straight plug-RG58 cable,50ohm RF Connectors / Coaxial Connectors RF BNC 50 Ohm STR PLUG HEX Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Silver Individual Product Highlights:ConnectorConnector Type = BNCPlugTerminate To Coaxial CableCoaxial Cable Termination Type = CrimpSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 PLUG, BNC, STRAIGHT, RG58 CrimpBNCstraightplug-RG58cable,50ohm Plug; BNC; male; straight; 50Ω; RG141,RG58C/U, URM43,URM76; crimped TE Connectivity 直 50Ω 电缆安装 BNC 连接器 插头, 压接 端接, RG141 A/U, RG58 C/U电缆, 镀银本体 BNC Str Plg Hex 50Ohm Silver P
1-1634816-0
te connectivity / amp
Connector Accessories Jam Nut Brass BNC RF Connectors CONN BNC/TNC NUT HEXAGONAL BNC/TNC hexagonal nut Screws & Fasteners Hexagonal Nut Connector Accessories Jam Nut Brass Product Highlights:Jam NutConnector Type = ZDC/BNCCommercial GradeBrass Body MaterialNickel Body PlatingSearch Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 NUT, BNC / TNC BNC/TNCHEXAGONALNUT BNC / TNC Hexagonal Nut Hex Nut BNC, 1-1634816-0, TE Connectivity TE Connectivity Greenpar系列 螺母, 使用于BNC 和 TNC 连接器
1-1634817-0
te connectivity / amp

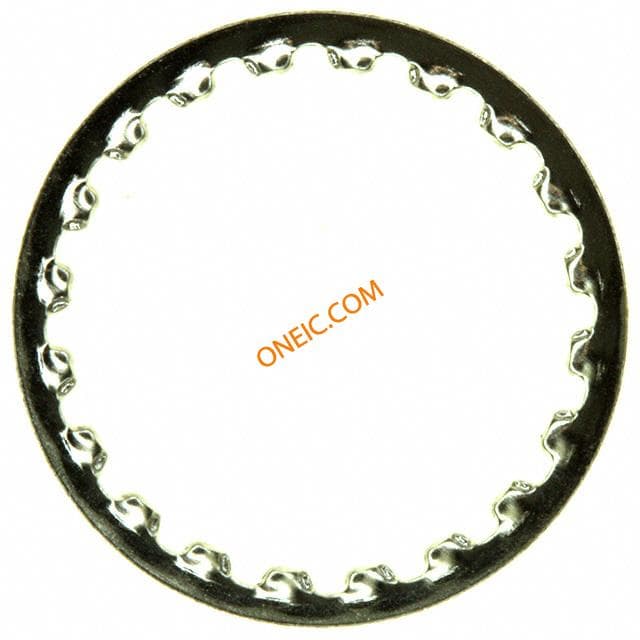

Connector Accessories Lockwasher Steel BNC RF Connectors CONN BNC/TNC LOCKWASHER BNC/TNC lockwasher Screws & Fasteners Lockwasher Connector Accessories Lockwasher Steel Search Keywords:solderless, RF, coax, BNC, UG/U, miniature, sub-miniature, bayonet, MIL-C-39012 LOCKWASHER, BNC / TNC BNC/TNCLOCKWASHER Lock washer BNC, 1-1634817-0, TE Connectivity TE Connectivity 垫片, 使用于BNC 和 TNC 连接器 BNC / TNC Lockwasher
