5-104666-3
| Manufacturer | |
| Description | Conn Shrouded Header HDR 40 POS 1.27mm Solder ST Thru-Hole Tube Headers & Wire Housings 40SYSTEM 50 HDR DRST SHRD SN .050 X .100 AMPMODU System 50 CONN HEADER 40POS DUAL T/H GOLD Conn Shrouded Header HDR 40 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Connector Type = Header - Pin40 PositionsNumber of Rows = DualShroudedVertical Mount AngleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 40 SYSTEM 50 HDR DRST SHRD SN |
| Category |
Business
| Tradename | AMPMODU | Product Category | Headers & Wire Housings |
| Standard Package | Rail / Tube | Factory Pack Quantity | 16 |
Compliance
| RoHS | RoHS Compliant | Standards | CSA LR7189, UL E28476 |
| Leadfree Defin | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHSELV Compliance | RoHS compliant, ELV compliant |
| Material Flammability Rating | UL 94V-0 | ||
Electrical
| Voltage Rating | 30 VAC | Voltage - Supply | 30 |
| Voltage - Rated AC | 30 | Connector Impedance | 制动器闭锁 |
| Voltage - Breakdown | 500 | Current Rating (Max) | 1 |
| Insulation Resistance | 5,000 | Voltage - Protection Rating (VPR) | 500 V |
Mechanical
| Color | Black | Pitch | 1.27 mm |
| Base Type | 不带 | Packaging | Tube |
| Shrouding | Yes | Body Color | 黑色 |
| Lead Style | 圆形 | Row Spacing | 0.100" (2.54mm) |
| Stabilizers | Without | Termination | Solder |
| 2nd Connector | With | Housing Color | Black |
| Mounting Type | Vertical | Connector Type | Shrouded |
| Contact Finish | Gold Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 2 | Shell Material | 2- 面 |
| Height (Inches) | 0.390" (9.91mm) | Insert Material | 磷青铜 |
| Contact Material | Phosphor Bronze | Housing Material | Thermoplastic |
| Package Quantity | Tube | Panel Mount Type | 通孔 |
| Termination Style | Through Hole | Diameter - Outside | .381 mm [ .015 in ] |
| Number of Contacts | 40 | Termination Finish | 带罩 |
| Number of Positions | 40 | Mounting Hole Diameter | 带有 |
| Contact Length - Mating | 0.125" (3.18mm) | Termination Post Length | 3.68 [0.145] |
| Contact Finish Thickness | 30µin (0.76µm) | Static Discharge Shielding | 不带 |
| Termination Finish Thickness | 150 – 250 | ||
Product Info
| Note | **Circuit identification feature omitted on 10 and 12 position headers. | Type | Shrouded Header |
| Gender | HDR | Series | AMPMODU System 50 |
| Key Type | 否 | Manufacturer | AMP |
| Product Type | Headers - Shrouded | Selectively Loaded | No |
| Number of Positions Loaded | All | ||
Environmental
| Seal Rating | 不带 | Temperature Range | -65 â +105 |
| Operating Temperature | -65 – 105 | ||
Documents & Media
Similar Parts
4-487938-0
te connectivity / amp
Conn Housing RCP 40 POS 1.27mm Crimp ST Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 40POS .050 DUAL ROW FFC & FPC Connectors 040 HOUSING FFC 50CL DR .050 X .100 AMPMODU System 50 Product Highlights:HousingNumber of Positions = 40Number of Rows = DualWith Mating Connector LockNormal Insertion ForceSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU 040 HOUSING FFC 50CL DR

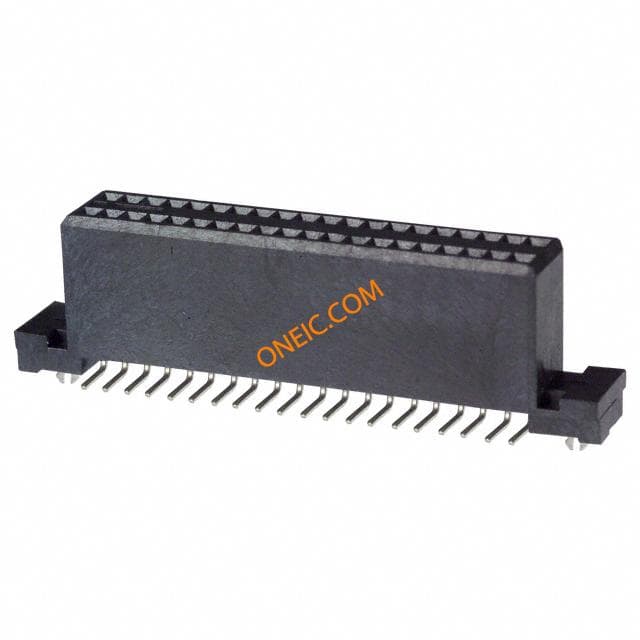

5-104550-5
te connectivity / amp
Conn Socket Strip RCP 40 POS 1.27mm Solder ST SMD Tube .050 X .100 AMPMODU System 50 CONN RECEPT 40POS .050" GOLD SMD TE Connectivity 0.5in 40 Way 2 Row Straight PCB Socket Surface Mount Board to Board Board to Board & Mezzanine Connectors 40 POS SMT RECPT VERT DUAL ROW Conn Socket Strip RCP 40 POS 1.27mm Solder ST SMD Tube Product Highlights:Receptacle AssemblyNumber of Positions = 40Number of Rows = DualVertical Mount AnglePCB Mount Style = Surface MountSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU BOARD-BOARD CONNECTOR RECEPTACLE, 40WAY, 2ROW ReceptacleVerticlesmt40wayAmpModu TE Connectivity AMPMODU System 50 系列 2行 40路 直 12.7mm节距 表面贴装 印刷电路板插座, 板对板 40 SYS50 SURFMNT DRST RCPT SN

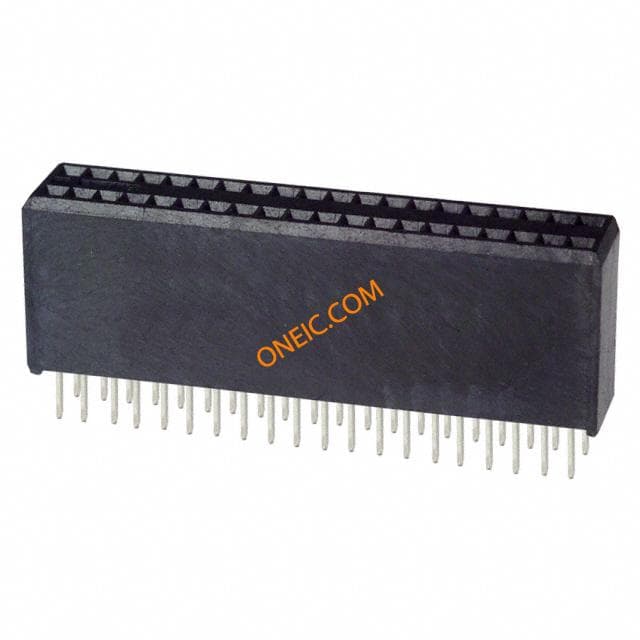

5-104078-2
te connectivity / amp
Conn Socket Strip RCP 40 POS 1.27mm Solder ST Thru-Hole Tube .050 X .100 AMPMODU System 50 CONN RECEPT 40POS .050" STR GOLD Board to Board & Mezzanine Connectors 40 POS RECEPT VERT DUAL ROW Conn Socket Strip RCP 40 POS 1.27mm Solder ST Thru-Hole Tube Product Highlights:Housing Gender = Connector - Receptacle40 PositionsNumber of Rows = DualVertical Mount AnglePCB Mount Style = Through HoleSearch Keywords:wire to wire, wire to board, IDC, latching, high density, co-planar, horizontal, pcb connectors, AMPMODU 40 SYSTEM 50 RCPT ASSY DRST SN

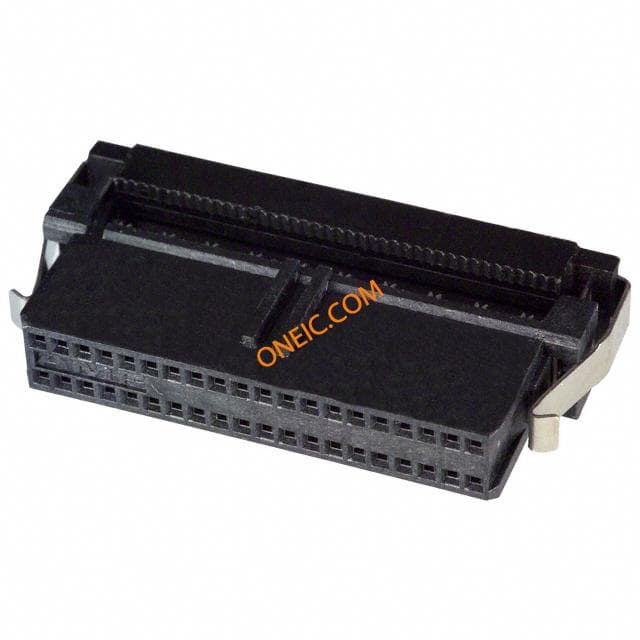

2-111196-0
te connectivity / amp
Conn IDC Connector RCP 40 POS 1.27mm IDT RA Cable Mount .050 X .100 AMPMODU System 50 CONN RECEPT 40POS .050X.100" IDC Ribbon cable conn.rcpt.40 way,1.27mm,blk Headers & Wire Housings 40 POS RECEPT IDC DUAL ROW Conn IDC Connector RCP 40 POS 1.27mm IDT RA Cable Mount Product Highlights:Receptacle AssemblyNumber of Positions = 40Number of Rows = DualWith Mating Connector LockWire/Cable Type = Ribbon CableSearch Keywords:dual beam contact, wire to wire, IDC, latching, signal, pcb connectors, AMPMODU RECEPTACLE, 40WAY Connectors,ribboncablereceptacle,doublerow,40position TE Connectivity AMP-LATCH System 50 系列 2行 40路 1.27mm节距 直角 电缆安装 母 IDC 连接器 40 RCPT SYSTEM 50, LEAD FREE

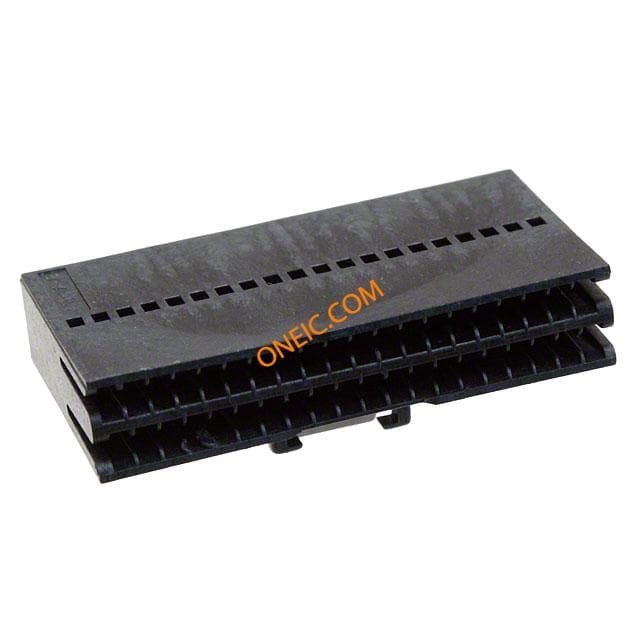

4-487937-0
