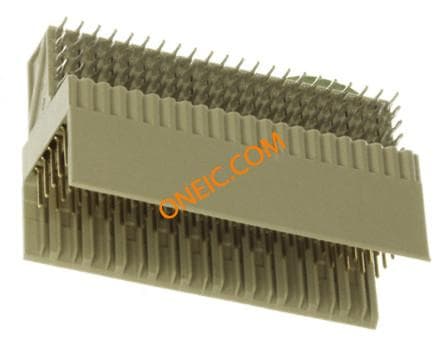

352268-1
| Manufacturer | |
| Description | Conn Hard Metric F 110 POS 2mm Press Fit ST Thru-Hole 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) CONN 2MM HM RCPT 110POS STR GOLD Hard Metric Connectors 110P VPACK HEADER 2mm Hard Metric PCB Mount Connectors (Z-PACK 2mm HM) Product Highlights:ConnectorConnector Type = Type B, 22 ColumnReceptacleInterface Type = 2mm HMContact Type = SignalSearch Keywords:IEC 1076-4-101, IEC 917, high speed, board to board, open pin field, hybrid power, IEC 1076-4-101, IEC950, CPCI, DIN 43355, TR-NWT-001217, mid-plane, DIN 41626, mezzanine, high density, co-planar, horizontal, |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Pack | 12 | Product Category | Hard Metric Connectors |
| Standard Package | Rail / Tube | Factory Pack Quantity | 12 |
Compliance
| RoHS | Contains lead / RoHS non-compliant | Leadfree Defin | Not relevant for lead free process |
| RoHSELV Compliance | RoHS/Not ELV Compliant | Material Flammability Rating | UL 94V-0 |
Electrical
| Crosstalk | Standard | Interface | 2mm HM |
| Voltage Rating | 500V | Current Rating (Max) | 1.5A |
Mechanical
| Pitch | 2 mm | Packaging | Bulk |
| Shield Type | No | Termination | Press Fit |
| Contact Type | Without | Housing Color | Gray |
| Mounting Type | Through Hole | Connector Type | Type B, 22 Column |
| Contact Finish | Gold Over Nickel | Mounting Style | Through Hole |
| Number of Rows | 5 | Connector Style | B 22 |
| Connector Usage | Backplane | Contact Material | Phosphor Bronze |
| Housing Material | Polyester GF | Length - Overall | 44.00 [1.732] |
| Termination Style | Press Fit | Mating Orientation | Without |
| Number of Contacts | 110 | Termination Finish | Tin-Lead over Nickel |
| Number of Positions | 110 | Length - Post (Mating) | 3.30 [0.130] |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Hard Metric | Gender | Receptacle |
| Series | Z-Pack | Manufacturer | AMP |
| Product Type | Connector | Module/Board Type | No |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
