350792-1
| Manufacturer | |
| Description | Conn Power HDR 4 POS 6.35mm Solder ST Thru-Hole 4 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 4POS VERT .250 TIN MATE-N-LOK 4 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac Pin & Socket Connectors 4 POS STD TAIL PIN Conn Power HDR 4 POS 6.35mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOK, Universal MATE-N-LOK IINot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER, VERTICAL, SINGLE ROW, 4 WAY HEADERASSEMBLY,PIN,UNIVERSALMATE-N-LOK,4POSITION,PCB,POSITIVELOCK Socket; wire-wire/PCB; male; 6.35mm; PIN:4; 19A; UL94V-0; THT TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 4路 直 PCB 针座, 焊接端接, 19A , 通孔 04P UMML PIN HDR ASSY 94VO |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Approval Agency | :CSA, UL | Material Flammability Rating | :UL94V-0 |
Electrical
| Range deg/s | :TE - Universal MATE-N-LOK Series | Voltage Rating | 600 V ac |
| Voltage - Working | :600V | Contact Resistance | :3.5mohm |
| Current Rating (Max) | 19A | Voltage - Supply (Min) | 600VAC |
Mechanical
| Color | White | Depth | 7.62 mm |
| Pitch | 6.35 mm | Height | 14.73 mm |
| Weight | 0.002 | Material | :Nylon |
| Packaging | Bulk | Orientation | straight |
| Termination | Solder | Contact Type | Male Pin |
| Pitch - Post | 6.35mm | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Tin |
| Fastening Type | Locking Ramp | Mounting Style | Through Hole |
| Number of Rows | 1 | Locking Feature | lock |
| Material Finish | :- | Contact Material | Phosphor Bronze |
| Housing Material | Polyamide (PA) | Length - Overall | 26.67 mm |
| Package Quantity | 100 | Primary Material | InterconnectSystem |
| Connector - Cable | socket | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 4 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 4 | Mounting Hole Diameter | :1.8mm |
| 1st Connector Mounting Feature | 1x4 | ||
Product Info
| Spg | 100 | Type | Power |
| Gender | HDR | Series | MATE-N-LOK |
| CAD Drawing | 3D CAD Model | Manufacturer | MATE-N-LOK |
| Product Type | Receptacle Housings | Adapter Series | Universal MATE-N-LOK |
| Number of Ports | 1 Port | Number of Units | 1 |
| Number of Positions Loaded | All | ||
Environmental
| Mating Cycles | :50 | Operating Temperature | :105°C |
Documents & Media
Similar Parts
1-480702-1
te connectivity / amp
Conn Housing PL 4 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 4POS UNIV-M-N-L BROWN Power to the Board PLUG HOUSE 4 POS BROWN UL94V-2 Conn Housing PL 4 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET HOUSING, PLUG, NYLON 04P UMNL PLUG HSG BRN
1-480702-2
te connectivity / amp
Conn Housing PL 4 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 4POS 94V-2 RED Pin & Socket Connectors 4P PLUG HSG RED Conn Housing PL 4 POS 6.35mm Crimp ST Cable Mount Loose Piece Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET HOUSING, PLUG, NYLON 04P UMNL PLUG HSG RED
350779-1
te connectivity / amp
Conn Housing PL 4 POS 6.35mm ST Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 4POS 94V-0 UNI-MATE 4 way white plug housing Pin & Socket Connectors PLUG HOUSE. 4 POS. Conn Housing PL 4 POS 6.35mm ST Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG HOUSING, 4WAY Connector,SoftShell;UniversalMATE-N-LOK;4;Plug;Nylon;White;19A Plug; wire-board; male/female; w/o terminals; 6.35mm; PIN:4; 600V Crimp housing Pitch6.35 mm Poles 4 MATE-N-LOK Universal, 350779-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 1 行 6.35mm 节距 4 路 直 公 压接连接器外壳 04P UMNL PLUG HSG

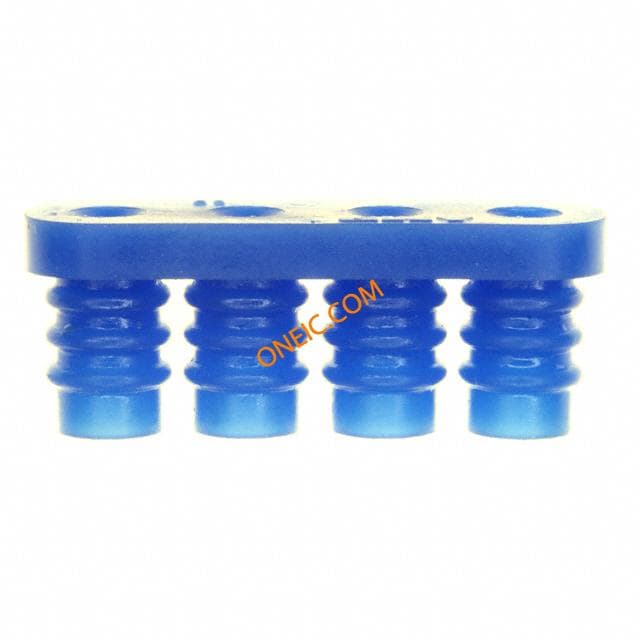

794274-1
