350760-4
| Manufacturer | |
| Description | Conn Power SKT 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 3POS VERT .250 TIN MATE-N-LOK 3 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac Pin & Socket Connectors 3 POS STD TAIL SOC Conn Power SKT 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONNECTOR, HEADER 2 HEADERASSEMBLY,UNIVERSALMATE-N-LOK,3POSITION,SOCKET,NATURAL,PCB Socket header Pitch6.35 mm Poles 3 MATE-N-LOK Universal, 350760-4, TE Connectivity 03P UMNL HDR ASSY PC |
| Category |
Business
| Product Category | Pin & Socket Connectors | Standard Package | Bulk |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
Electrical
| Range deg/s | :TE - Universal MATE-N-LOK Series | Voltage Rating | 600 V ac |
| Current Rating (Max) | 19A | Voltage - Supply (Min) | 600VAC |
Mechanical
| Color | Natural | Depth | 7.62 mm |
| Pitch | 6.35 mm | Height | 14.73 mm |
| Weight | 0.21 | Packaging | Bulk |
| Termination | Solder | Contact Type | Female Socket |
| Mounting Type | Through Hole | Connector Type | Header |
| Contact Finish | Tin | Fastening Type | Locking Ramp |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Contact Material | Phosphor Bronze | Housing Material | Polyamide (PA) |
| Primary Material | InterconnectSystem | 1st Contact Gender | Socket (Female) |
| Color - Connectors | :Nature | Number of Contacts | 3 |
| Contact Termination | :Solder | Number of Positions | 3 |
| 1st Connector Mounting Type | :PC Board | ||
Product Info
| Type | Power | Gender | SKT |
| Series | MATE-N-LOK | CAD Drawing | 3D CAD Model |
| Manufacturer | MATE-N-LOK | Product Type | Receptacle Housings |
| Number of Ports | 1 Port | Number of Positions Loaded | All |
Documents & Media
Similar Parts
1-480700-0
te connectivity / amp
Conn Housing PL 3 POS 6.35mm Crimp ST Individual .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 3POS 94V-2 UNI-MATE 3 way free plug housing Pin & Socket Connectors PLUG HOUSE 3 POS Conn Housing PL 3 POS 6.35mm Crimp ST Individual Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HOUSING, PLUG, SINGLE ROW, 3WAY Connector,SoftShell;UniversalMATE-N-LOK;3;Plug;Nylon;Natural;19A Plug; wire-wire/PCB; male/female; w/o terminals; 6.35mm; PIN:3 Crimp housing Pitch6.35 mm Poles 3 Single row / Free hanging/cable mount MATE-N-LOK Universal, 1-480700-0, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 1 行 3 路 直 公 面板安装 压接连接器外壳 03P UMNL PLUG HSG NATL
350848-3
te connectivity / amp
Conn Power SKT 3 POS 6.35mm ST Cable Mount 3 Terminal 1 Port Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 3POS UNIV-MATE-N-LOK Pin & Socket Connectors 3P PLUG TEST ASSY 94V0 .250" Centerline, 600 V, 19 - 36 A max Product Highlights:Test ConnectorUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 03P UMNL PLUG TEST ASSY 94VO
794900-1
te connectivity / amp
Conn Housing RCP 3 POS Crimp ST Panel Mount Pin & Socket Connectors 03P UMNL HI TEMP CAP HSG CONN CAP HSG 3POS UMNL HI TEMP Conn;CapHsg;3Pos;UnivMATE-N-LOK;HITEMP 03P UMNL HI TEMP CAP HSG
1-480700-2
te connectivity / amp
Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN U-MNL PLUG 3POS 94V-2 RED Power to the Board PLUG HOUSE 3 POS RED UL94V-2 Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP PLUG & SOCKET HOUSING, PLUG, NYLON 03P UMNL PLUG HSG RED
2-480700-0
te connectivity / amp
Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount Loose Piece .250" Centerline, 600 V, 19 - 36 A max CONN PLUG 3POS FREE HANG UNM-N-L Power to the Board 03P PLUG HSG F/H Conn Housing PL 3 POS 6.35mm Crimp ST Cable Mount Loose Piece Product Highlights:HousingUniversal MATE-N-LOK Product LineIn-Line Contact Layout6.35 mm Centerline3 PositionsSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 03P UMNL PLUG HSG

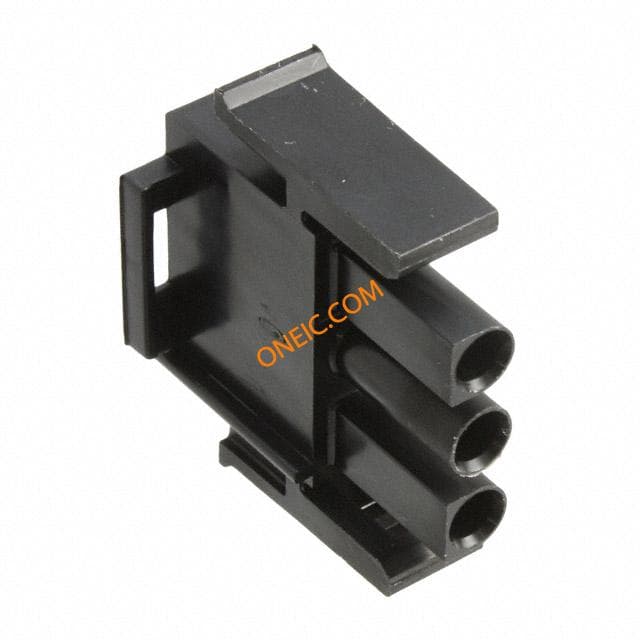

794901-1
