794900-1
| Manufacturer | |
| Description | Conn Housing RCP 3 POS Crimp ST Panel Mount Pin & Socket Connectors 03P UMNL HI TEMP CAP HSG CONN CAP HSG 3POS UMNL HI TEMP Conn;CapHsg;3Pos;UnivMATE-N-LOK;HITEMP 03P UMNL HI TEMP CAP HSG |
| Category |
Business
| Other Names | 7949001 | Standard Package | Bulk |
Compliance
| RoHS | RoHS Compliant | UL Rating | 获得认可 |
| Part Status | E28476 | CSA File Number | LR7189 |
| Standard Number | CSA, UL | CSA Certification | Certified |
| UL Flammability Rating | UL 94V-2 | Approval Agency Marking | 是 |
Electrical
| Voltage - Supply | 600 | ||
Mechanical
| Color | Black | Pitch | 6.35 mm |
| Sealed | Not Sealed | Packaging | Bulk |
| Body Color | 黑色 | Size - Body | .76 – 2.29 mm [ .76 – 2.29 in ] |
| Contact Type | Male or Female | Mounting Type | Straight |
| Connector Type | Receptacle | Contact Finish | Without |
| Fastening Type | Latch Holder | Mounting Style | Free Hanging |
| Number of Rows | 3 | Package / Case | Receptacle |
| Housing Material | Nylon | Package Quantity | 1 |
| Panel Mount Type | 带有 | Termination Style | 插针 |
| Number of Contacts | 3 | Contact Termination | Crimp |
| Number of Positions | 3 | Compatible Shell Size | 适当的通用 MATE-N-LOK 插头 |
| Contact Layout, Typical | 直插式 | 1st Connector Mounting Type | Panel |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | Mate-N-Lok |
| Product Type | Plug Housings | Assembly Configuration | Without |
Environmental
| Temperature - Test | 标准件 - 非灼热丝 | Operating Temperature | -55 – 105 °C [ -67 – 221 °F ] |
Similar Parts
350583-1
te connectivity / amp
Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 3POS VERT .250 TIN Power to the Board PCB PIN HDR 3P Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 03P UMNL PIN HDR ASSY V2 NATL
350583-4
te connectivity / amp
Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 3POS VERT .250 GOLD Pin & Socket Connectors 3P PIN HDR ASSY V2 .250" Centerline, 600 V, 19 - 36 A max Product Highlights:ConnectorConnector Type = Header - PinUniversal MATE-N-LOK Product LineIn-Line Contact Layout6.35 mm CenterlineSearch Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP 03P UMNL PIN HDR ASSY V2 LF
643413-1
te connectivity / amp
Conn Power SKT 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 3POS VERT .250 TIN Power to the Board 3P SOCKET .25 CTR Conn Power SKT 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP Conn;Header;Socket;3Pos;UnivMATE-N-LOK;Vertical;PositLock;Natural 03P UMNL HDR ASSY SCKT POL
350429-4
te connectivity / amp
Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 3POS VERT .250 GOLD TE Connectivity Universal MATE-N-LOK Series 6.35mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 15A Power to the Board HDR PIN 1X03C VRT V2 Conn Power HDR 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HeaderVertpcb3wayPinMate-n-Lok TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 3路 (1排) 直 PCB 针座, 焊接端接, 15A , 通孔 03P UMNL PIN HDR ASSY NATL LF
350760-4
te connectivity / amp
Conn Power SKT 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 3POS VERT .250 TIN MATE-N-LOK 3 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac Pin & Socket Connectors 3 POS STD TAIL SOC Conn Power SKT 3 POS 6.35mm Solder ST Thru-Hole 3 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 3Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP CONNECTOR, HEADER 2 HEADERASSEMBLY,UNIVERSALMATE-N-LOK,3POSITION,SOCKET,NATURAL,PCB Socket header Pitch6.35 mm Poles 3 MATE-N-LOK Universal, 350760-4, TE Connectivity 03P UMNL HDR ASSY PC
350987-4
te connectivity / amp
Conn Wire to Board HDR 3 POS 6.35mm Solder ST Thru-Hole .250" Centerline, 600 V, 19 - 36 A max 03P UMNL HDR ASSY LNG/TL Power to the Board PCB SOCKET HDR 3P 03P UMNL HDR ASSY LNG/TL Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP

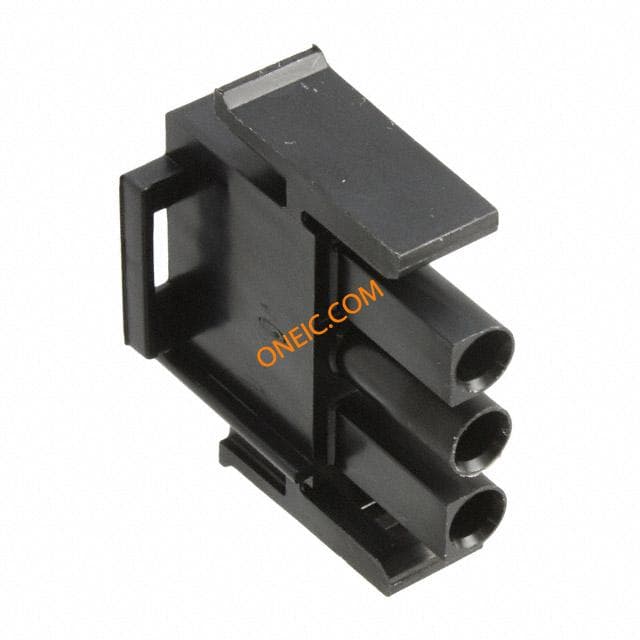

794901-1
